Have questions?  Click here for Custom Face FAQ's

RESOURCES FOR REPAIRS, PARTS AND OTHER INFO
REPLACEMENT SPEEDO NEEDLES:

Yamahapro on the Turbobricks forum has agreed to supply hard-to-find used speedometer needles for 240 speedos in case someone breaks one.

Breaking one is rare, but can happen. He can also supply good used odometer reset buttons, since those seem to break over time with normal use.
He may be contacted through Turbobricks or directly at chaseryan13 [at] gmail [dot] com.

INSTALLATION INFO:
CLICK HERE for installation info (at bottom of page).
Limited Installation Services:
Limited installation services of custom faces can be arranged for your 1800, 140 or 240 gauges.  Contact Dave with questions.
CONTACT


Online Payments
VDO versus YAZAKI instrument clusters. CLICK HERE.



Here are some 240 New Face options to choose from.....
C L I C K   A   L I N K   O R   P H O T O   B E L O W
Replacement or Custom
Black or White Face Overlays for
240 and VDO gauges

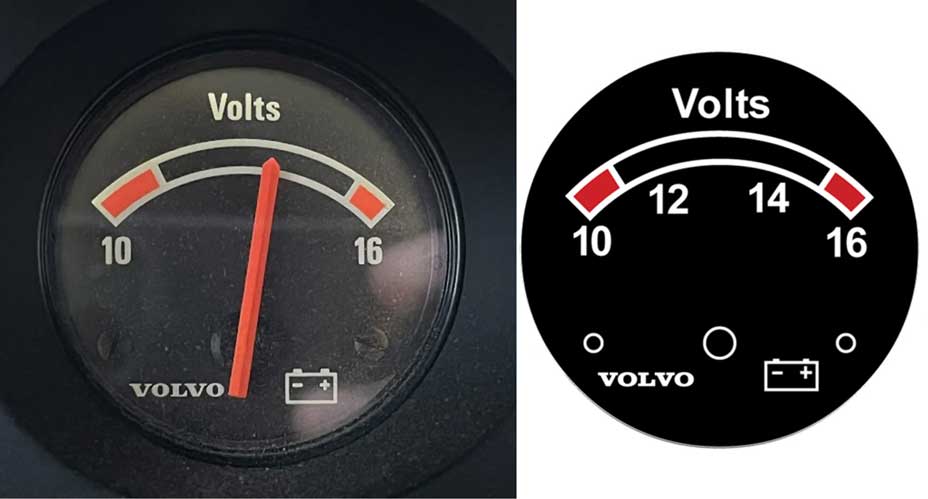

52 mm Gauges

Replacement Face Overlays:

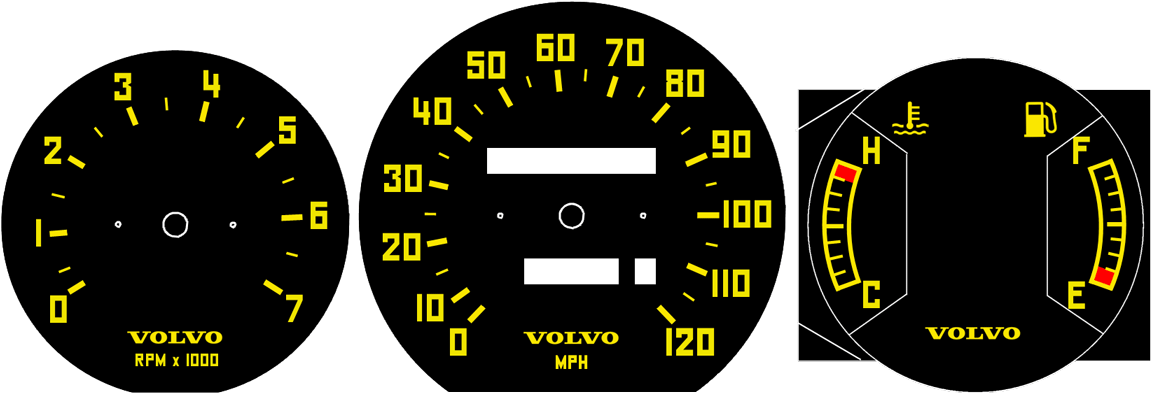

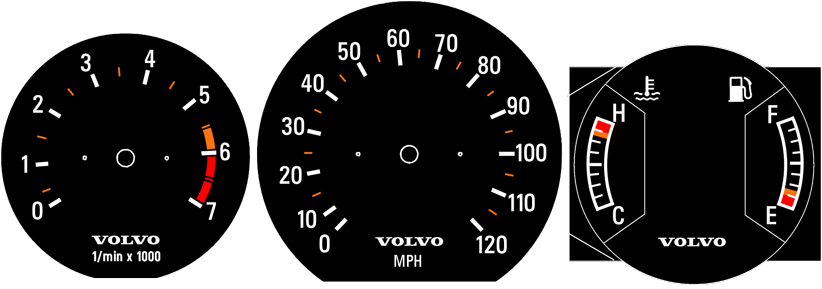

240 ORIGINAL STYLE
BLACK FACES

for 1975-80 240
for 1981-93 240

Replacement or Custom Face Overlays:
240 STYLE #1 Customs
White Face Overlays
1981-93 240

Replacement or Custom Face Overlays:

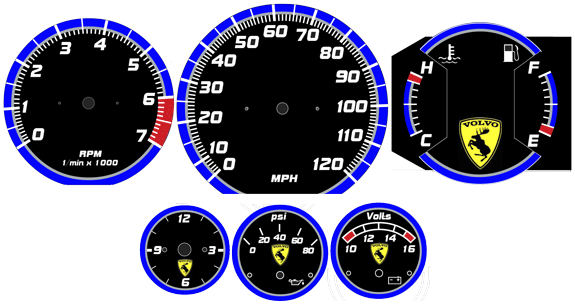

240 STYLE #2 Customs
Black or White Face Overlays
1981-93 240

Replacement or Custom Face Overlays:
240 STYLE #3 Customs
White and other color Face Overlays
1981-93 240

Replacement or Custom Face Overlays:
240 STYLE #4
R-Sport Rallye Style Faces

Black Face Overlays
1981-93 240

Replacement or Custom Face Overlays:

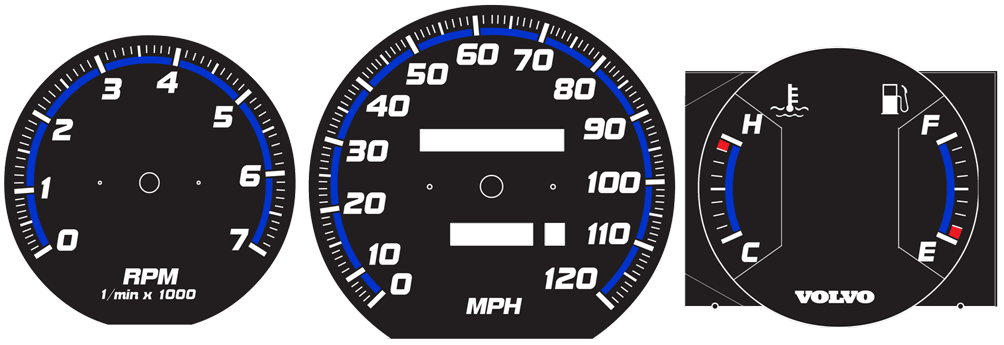

240 STYLE #5
COBALT Style Faces

Black or White Face Overlays
1981-93 240

Replacement or Custom Face Overlays:
Early 240 1975-80
White, Blue or Black Face Overlays



Replacement or Custom Face Overlays:
240 Rallye (R-Sport)

Gauge Clusters

Black or White Face Overlays




Replacement or Custom Face Overlays:
140 Rallye and 140 GT

Gauge Clusters

Black or White Face Overlays







Replacement or Custom Face Overlays:
SMITHS Gauge Face Overlays
for P1800

Black or White Face Overlays

Replacement Face Overlays:

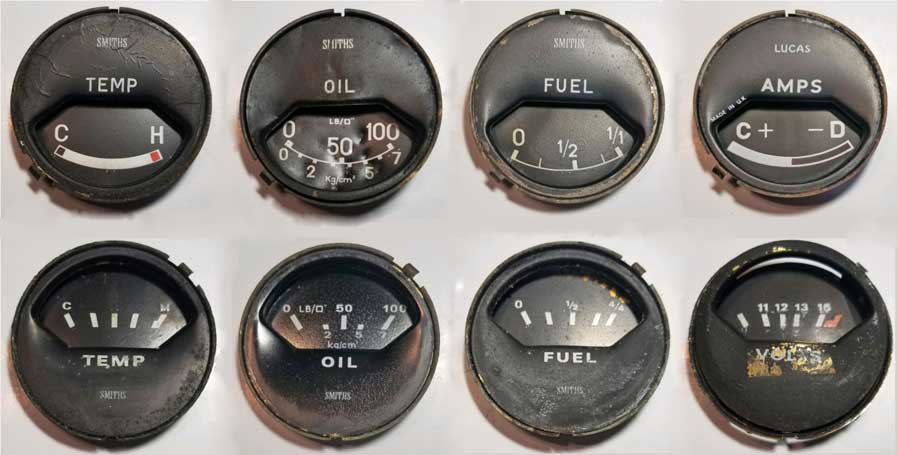

SMITHS Gauge Face Overlays
for Other Makes


Replacement or Custom Face Overlays:
Non-VOLVO Projects

Replacement or Custom Face Overlays:

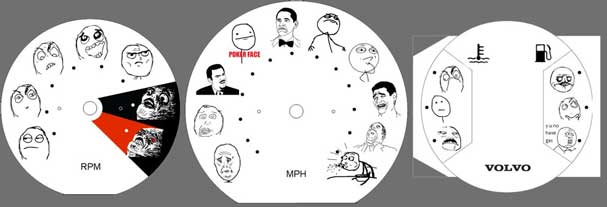

Meme Faces for '81-'93 240s


MORE INFO and F.A.Q.'s BELOW...

HIGH-QUALITY PRINTED ADHESIVE BACKED VINYL GAUGE FACE OVERLAYS
All sets are custom printed to order.

These face overlays are the product of years of development using 240 instrument clusters from my own cars and from junkyards.  I originally began designing them for my own 245 Turbo in 1999.  I then received so many requests from other 240 owners that I decided to make them available for a modest price.
ABOUT QUALITY:
You will find that the line and character print detail on these faces is excellent and the overall print quality is fantastic!  All sets are printed when ordered.  I use special waterproof ink and professional grade vinyl media. Each set is then covered with a UV clear laminate that offers a non-glare finish.   I offer many different styles to choose from and all of them can be ordered with different custom configurations at no extra charge.
Volvo
                          240 gauge faces. Dave's Volvo Page.

Comments I've received from some of my customers:

"Hey Dave, I was just letting you know that I installed the white faces and they look great. Nice work."  I.M.

I tried to paint some gauges myself with this KemKhrome auto paint, but didn't quite come out the way I wanted it. So, I put on the white gauges and they look amazing. I thinking I could use the KemKhrome auto paint for something else on the car other than the guages. B.T.

"Finally found time to install the white faces on my gauges. They look and work GREAT! Every one that sees them can't get over them. Your directions were great also."  J.W.

"I just wanted to thank you again for your fabulous gauge face set.  Your instructions were excellent and I couldn't be happier with the results.  These faces were an important safety upgrade for my car as well as cosmetic, as I had always strained to see the dark, dim gauges at night.  Now they have a pleasant, slightly green glow that is very easy on the eyes."  P.P.

"Dave, just thought I would drop you a line. Many moons ago I bought a white face dial kit for my 240 and last weekend got around to fitting them. Following your guide made it a breeze and they look terrific. I'm so chuffed with it as it makes my 240 unique in Ireland." B.O.

"Got the gauges yesterday installed the main set, one word describes it... WOW.   Thanks man they look freakin awesome."  A.B.

"Today I recieved my order for  the gauge face set and I'm very pleased.  They look great and the quality is very nice. Shipping was very fast (I would've never thought they would get from US to Finland in less than a week). I have a lot of work in my car before I can drive it again but I think I'm going to go ahead and install the gauge faces next.   Thank you very much."  J.H.  Finland.

FULL COLOR STEP-BY-STEP INSTRUCTIONS
Covers the removal and disassembly of your gauge pod and the installation of these faces. Installation time is about an hour or two.  These faces are made so they will overlay your existing metal gauge face plates using simple tools.

DETAILED INSTRUCTIONS - 1981-93 240 (PDF)

DETAILED INSTRUCTIONS - 1975-80 240 (PDF)

DETAILED INSTRUCTIONS - 52 MM GAUGES (PDF)


Primer / Adhesion Promoter
Adhesion Promoter is strongly recommended to improve the installation of gauge face overlays. If your car may be subjected to high interior temperatures (parked outside), the adhesive on the backs of overlays can soften over time and allow the edges to lift. Applying a little of this before installation on the faceplate edges will greatly improve adhesion. For convenience, a cotton swab is included. This isn't some mythical snake-oil. It has been tested over the years and works great.

Applying this stuff is easy. Dip the cotton swab in the liquid and smear the edges of the face plates where the overlays will be. It dries in seconds.  CAUTION: Using this stuff makes things stick very well, so be careful when placing the overlay down. It will be harder to lift and re-position.




Order Quantity: Option:

To Check Out or View Cart, click below button.



Many of you have questions.
I have included answers to the most frequently asked questions below
.

Frequently Asked Questions
Q: Are these faces applied with peel 'n' stick paper or glue or what?
A: They are peel 'n' stick custom printed VINYL.  The adhesive is very strong, yet very easy to work with when originally positioning them on your faces.
Q: Are any special tools required to install these faces?
A: Basic tools will get you by on this one.  No special cutting or modifications to your car will be required to install these gauge faces.  At a slow, careful pace, it should take a first time installer no more than 2 hours.
Q: Are these gauge faces guaranteed not to fade?
A: Yes. These are made with UV resistant materials.

Q: Will I need to remove the needles from the original gauge faces?
A: Yes.  The instructions will give you simple step-by-step procedures.  For the main cluster, the needles for the speedometer and tachometer (or clock) can be pulled off and replaced without any damage.  The needles on the temperature and fuel level do not need to be removed.  For 52 mm gauges, needles will be removed on these too.

Q: I am afraid to try this because I'm afraid I'll break a gauge needle.
A:  Breaking a needle is rare, but it does happen to the speedo needle on rare occasions.  Most needles come off pretty easily.  The one needle that is probably the hardest is on the '81-'85 240 speedometer

Q: Will the tiny black screws that hold the face plates damage the faces when they are tightened?
A: No, but these screws should not be cranked down too tight. They only need to be snug.

Q: Does the overall diameter of your faces match the factory face size?
A: Yes. The overlay will "fill up" the gauge circles.

Q: What about accuracy? Are these faces accurately calibrated to match my original ones?
A:  Yes.  The calibration will be an exact match to the original faces.

Q: My dash lights are dim and it makes my instruments hard to see at night.  Is there any way to improve this?
A: Adding white faces will improve visibility a lot.  Also, it's now possible to find brighter bulbs, such as LED.

One method to get more light that works...  the 240 dash light dimmer switch on it's brightest setting does not actually allow full power to the bulbs.  I have bypassed the dimmer on both on my 240's and found my dash lights to be brighter.  I can no longer dim the instrument lights, but I don't miss that feature.

Also, Gary Harris sent me some great suggestions for brightening up the dash lighting in 240's, click here or scroll down.
Q: Can you make white faces for 740's and later models?
A: No. The new 240 faces are mounted on your original metal face plates.  They work very well on 240 models since 240 gauges are "forward lighted," meaning they're lit from the front of the gauge by bulb reflectors.  The face plates on the 740 gauges (and later models), are made from a translucent plastic, which is lit from BEHIND the gauge using prisms.  Putting opaque vinyl face overlays on your 740 gauges would remove the night lighting.  I have experimented with making translucent back-lit 740 instrument clusters and the results have never turned out as nice as needed.  The 740 boost face I make works well, but other faces have not come out as well.  Since I will not sell something unless it looks and functions well, I abandoned this project many years ago.

Getting Better Light to 240 Instruments

Try this thread from the Brickboard: http://www.brickboard.com/RWD/index.htm?id=735768

Suggestions for better lighting.  Posted by Gary Harris:

I saw some ideas you posted regarding better instrument panel illumination.  I made a fairly simple modification several years ago which is a MAJOR improvement, as follows:

1) Remove instrument panel from vehicle and remove guage cluster from housing.
2) Remove the two light bulb sockets at the top of the cluster that are used for panel lighting.
3) Carefully clean the two 'cups' that these bulbs were installd in with a mild solvent.
4) Typically, the plastic will have yellowed with age in these 'cups'.  They need to be repainted with a bright white paint (the whiter the better!). I used some Ford white auto touch-up paint for this. Very handy with the small brush.  This will transfer much more light into the plastic 'light-pipe'
5) While the paint is drying, we need to rework the two light bulb sockets so they can accept a small Halogen 5-watt instrument panel lamp used on many late-model vehicles.  Do NOT use a bulb any larger than 5-watts!

This is the difficult part, and it has been so long since I did it I no longer remember exactly how I did this.

There are several different styles of sockets that Volvo used, some are easier to modify than others.  You might run across these with when looking at different panel disassemblies.  Basically, I ended up soldering the halogen bulb pins into the Volvo socket.

The result of all this is an extremely bright white light source that really lights up the panel and make it look great.

Anyway, give the Halogen conversion a try, I think you will be VERY pleased with the result.
Regards,
Gary Harris


Special Projects
Over the years I have taken on a lot of special custom gauge face projects.  Some are shown below.

The faceplate on this AEM Air/Fuel Ratio meter is stamped aluminum, which made is fairly easy to apply a new face.
This one was done for a customer who wanted it to match his Volvo Rallye R-Sport instruments.
It's available in the 52 mm Face Page.

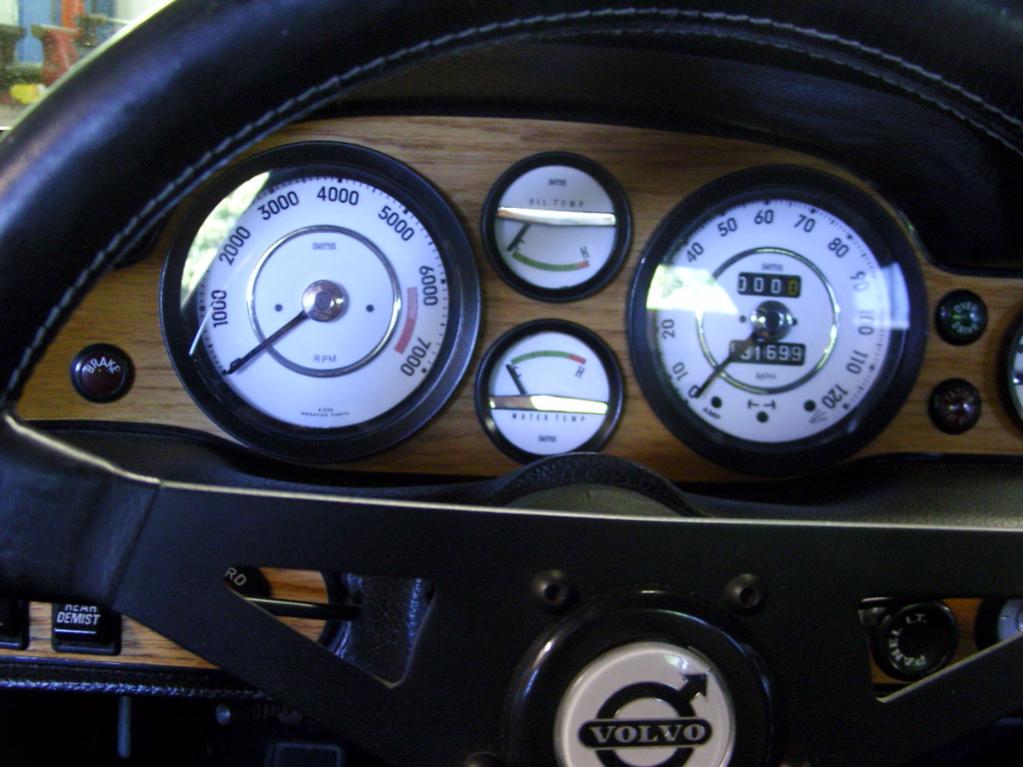

Volvo 1800 Gauge Faces

This is a white face overlay set for Smith's Volvo 1800 faces. These faces are now available with a 120 mph or 200 kmh speedometer.
They are also available as BLACK faces also for restoring old faces.
Installation instruction for these faces (2.5 mb PDF) CLICK HERE FOR INSTRUCTIONS.
Volvo 1800
                      Smiths gauge faces. Dave's Volvo Page.  Volvo
                      1800 Smiths gauge faces. Dave's Volvo Page. Volvo
                      1800 Smiths gauge faces. Dave's Volvo Page. Volvo
                      1800 Smiths gauge faces. Dave's Volvo Page.
The red LED lighting was a custom installation by Roger Patricio of RP RSports.
Click here for more info and look for RPR Sports
  Volvo 1800
                      Smiths gauge faces. Dave's Volvo Page. Volvo 1800
                      Smiths gauge faces. Dave's Volvo Page. Volvo
                      1800 Smiths gauge faces. Dave's Volvo Page.


Volvo 142 Rallye Faces

These are restoration face overlays for restoring old 142 Rallye gauges.
They are available with KMH or MPH speedometer. Also with lbs/sq. inch oil pressure or kp/cm2 oil pressure.
Click here for the 140 Gauge Page.

Volvo 140 Rallye GT gauge faces. Dave's Volvo
                      Page. Volvo 140 Rallye GT gauge faces. Dave's Volvo
                      Page.
