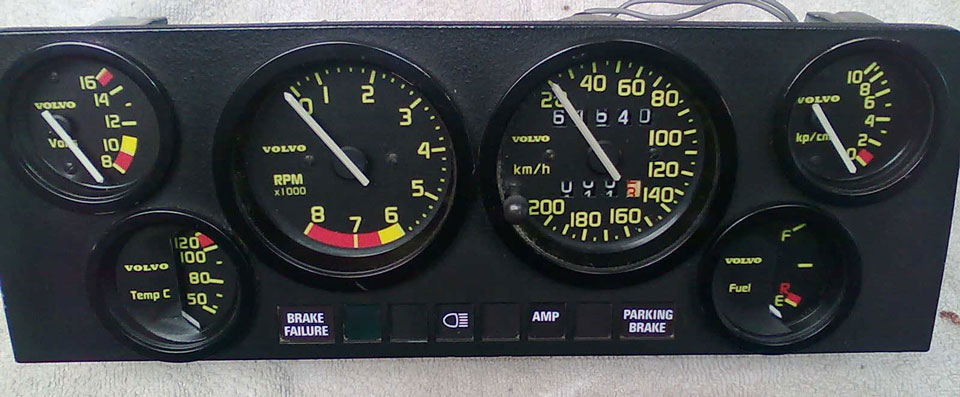

This cluster BELOW is an original 240 Rallye cluster, which was made available as an option by Volvo in their R-Sport performance accessory line.


The below CUSTOM gauge face overlays are designed to restore the look of these gauges if yours are faded or damaged.

All of these face overlays are printed with UV resistant ink and have a MATTE non-glare UV finish over the front to protect the faces from exposure.  They will not fade.
These faces are printed on professional grade vinyl with peel and stick adhesive on the back.
All odometer windows or "cut-outs" will be done for you before these are sent.


Installation Instructions:
 https://www.davebarton.com/pdf/240FaceInstallR-Sportgauges.pdf
(0.4 mb PDF)

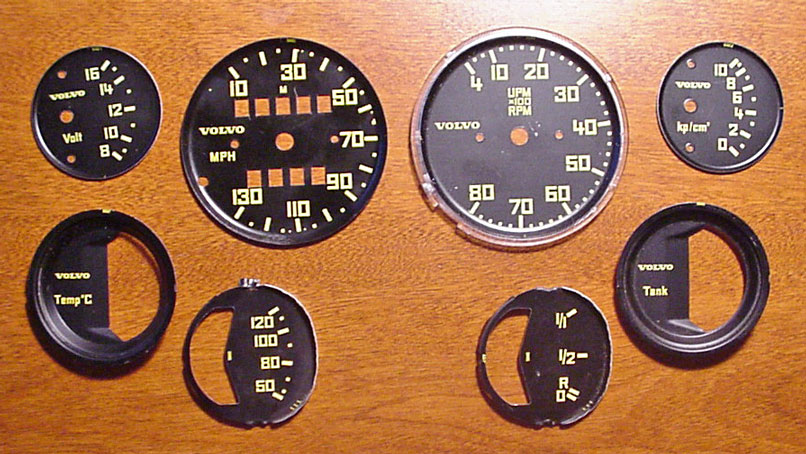

Below Photo:
Original 240 Rallye gauge set face plates after disassembly.

The below overlay sets are available for these face plates.


Below Images
  Style A: Original Restoration Style Set
130 MPH Black Faces

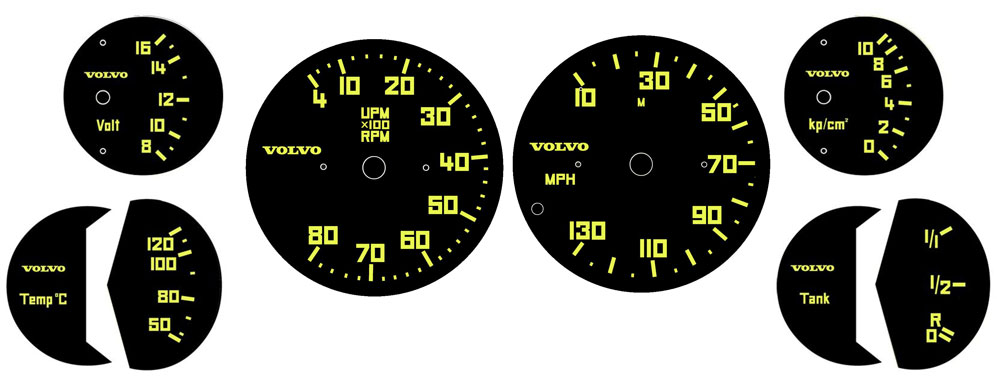

Below set: Style-A 130 MPH Original Restoration Style set.
These sets are called "Original Restoration Style" sets, because they were made with great detail to replicate the original faces.
The special type font for these had to be created one character at a time. These overlays can be used to restore an old faded set of gauges.
All odometer windows or "cut-outs" will be done for you before these are sent.

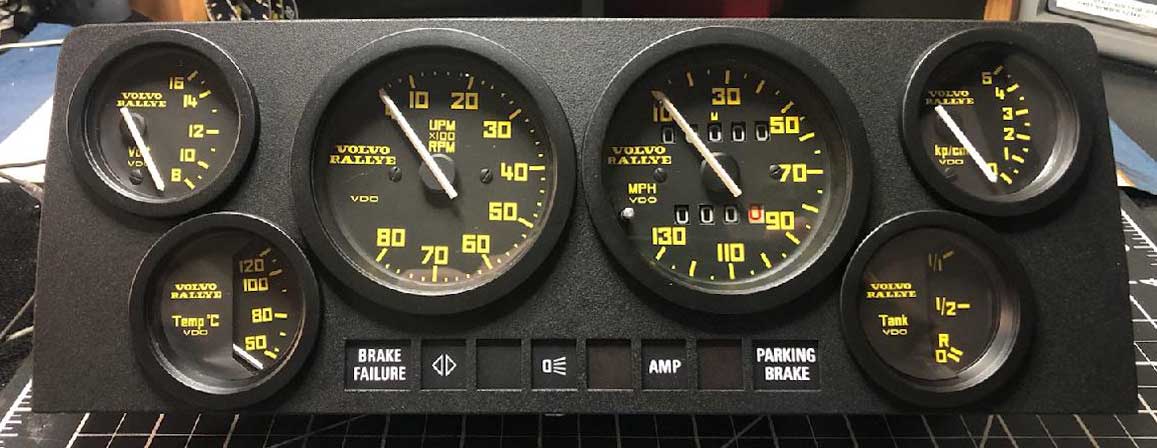

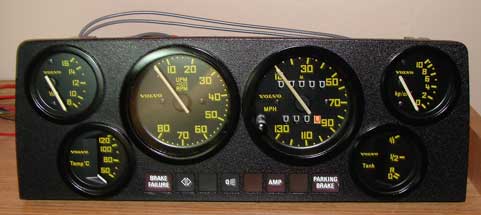

The below gauge cluster was restored using Restoration Style faces from this page.


OPTIONAL CHANGES

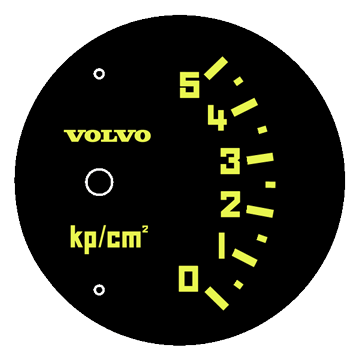

Optional Alternate Oil Pressure Face  -  5 kp/cm²
There is no extra charge to use this
5 kp/cm² face (5 bar) instead of the original 10 kp/cm² (10 bar)
Using this 5 bar face allows you to use a standard 5 bar oil pressure sender on your engine, which can be the same 2-pole sender from a 240 Turbo B21FT/ET.

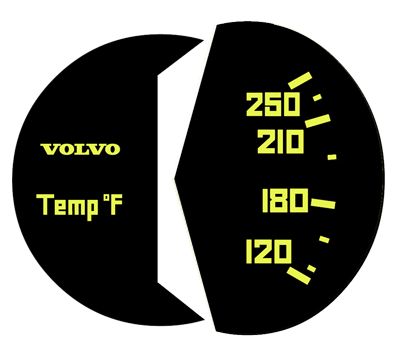

Optional Alternate Temperature Face  -  Changed to Fahrenheit
There is no extra charge to use this Fahrenheit face instead of the Celcius face
. No other change is needed when converting.



Below Images
  Style A: Original Restoration Style Set
  200 km/h Black Faces

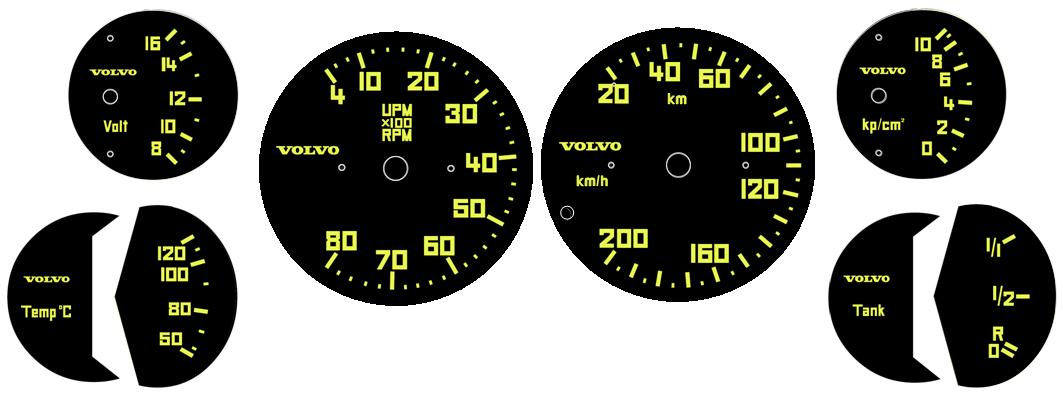

Below set: Style-A  200 km/h Original Restoration Style set.
This set of face overlays may be used for precise restoration of old gauge faces or may
be used to convert from 130 MPH to 200 km/h set.
All odometer windows or "cut-outs" will be done for you before these are sent.



OPTIONAL CHANGE
Optional Alternate Oil Pressure Face  -  5 kp/cm²
There is no extra charge to use this
5 kp/cm² face (5 bar) instead of the original 10 kp/cm² (10 bar)
Using this 5 bar face allows you to use a standard 5 bar oil pressure sender on your engine, which can be the same 2-pole sender from a 240 Turbo B21FT/ET.




Below Image
 Original Restoration Style Set

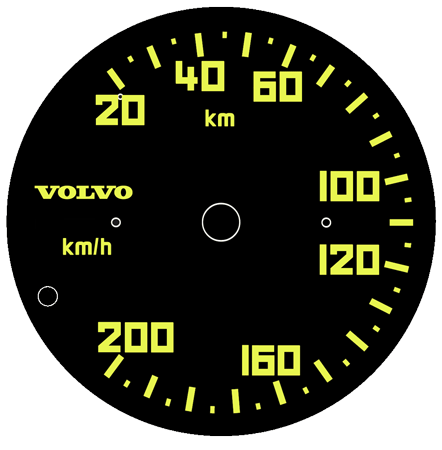

  Style A: 200 km/h Black Speedo Only

This 200 km/h speedometer overlay may be purchased separately.
It may be
used to convert your speedometer from 130 MPH to 200 km/h.
This single face may be chosen in the order drop-down options in the order panel below.

All odometer windows or "cut-outs" will be done for you before these are sent.





Below Images

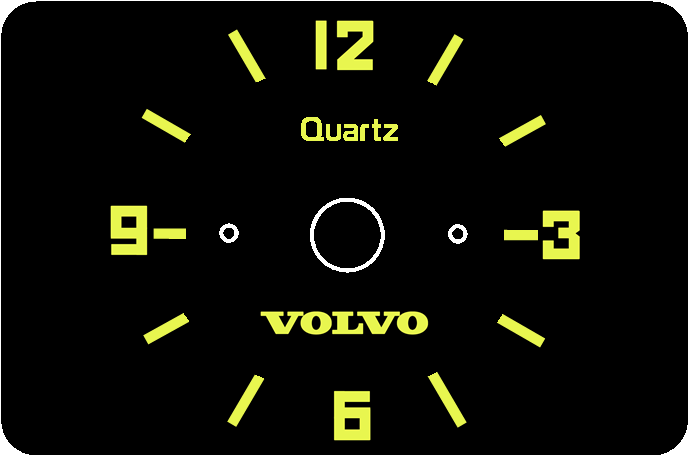

  Original Restoration Style Face

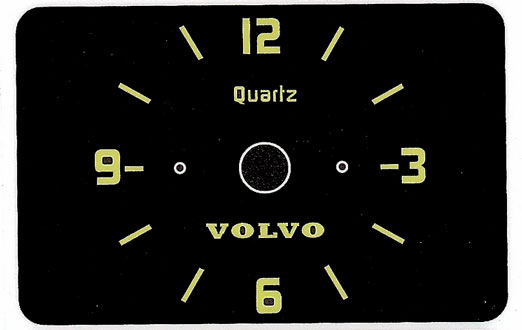

  Style A: Early 240 Clock
Designed to appear the same as above Restoration Style sets with the same font.  May be used to modify the clock found in a 1975-80 240 and 260.
This face may be ordered for the same cost as any 52 mm face.
These faces and more can be found in my 52 mm Face Page.





Below Images
  Style B: RARE Original
'VOLVO RALLYE' Gauge Cluster

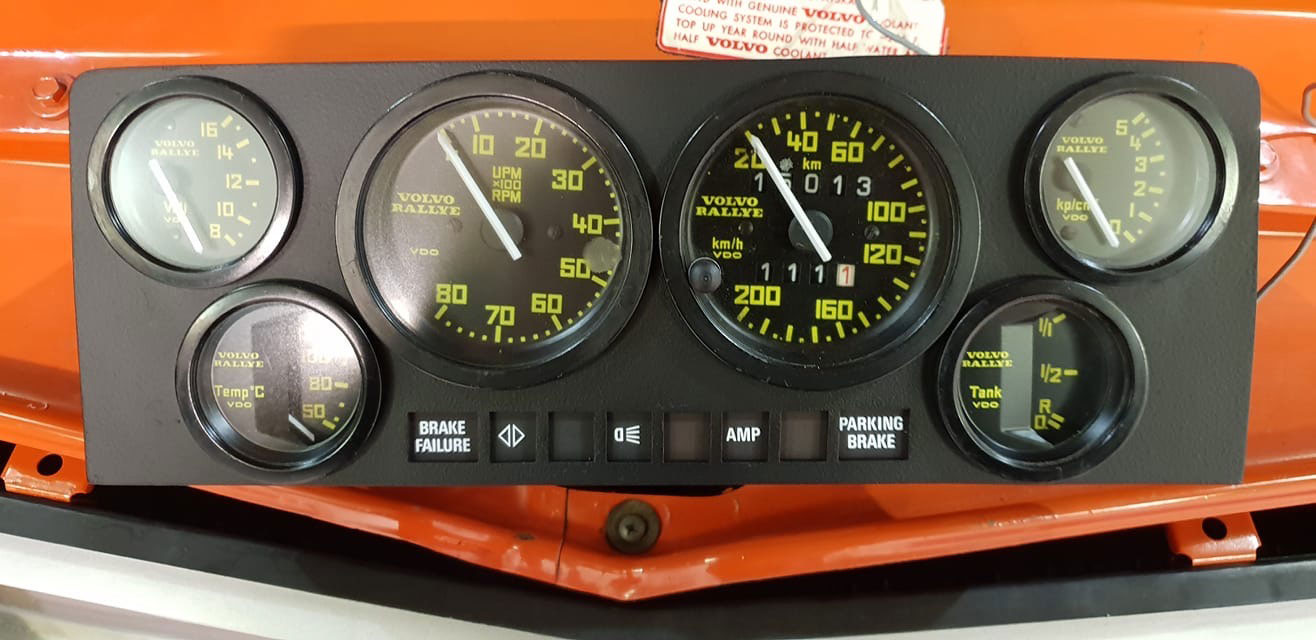

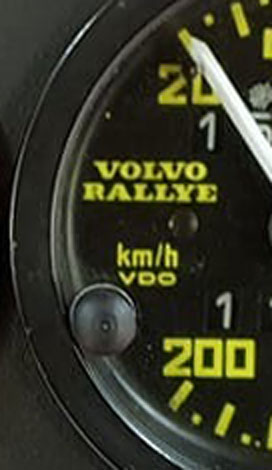

The below gauge cluster is an extremely rare original 'VOLVO RALLYE' cluster (believed to be an EARLY PROTOTYPE).
The story that came with this photo these were the first generation gauge clusters made by VDO for Volvo racing teams before they began producing them as they are normally known now.

Aside from the 'VOLVO RALLYE' text, this set had a 5 Bar oil pressure gauge.

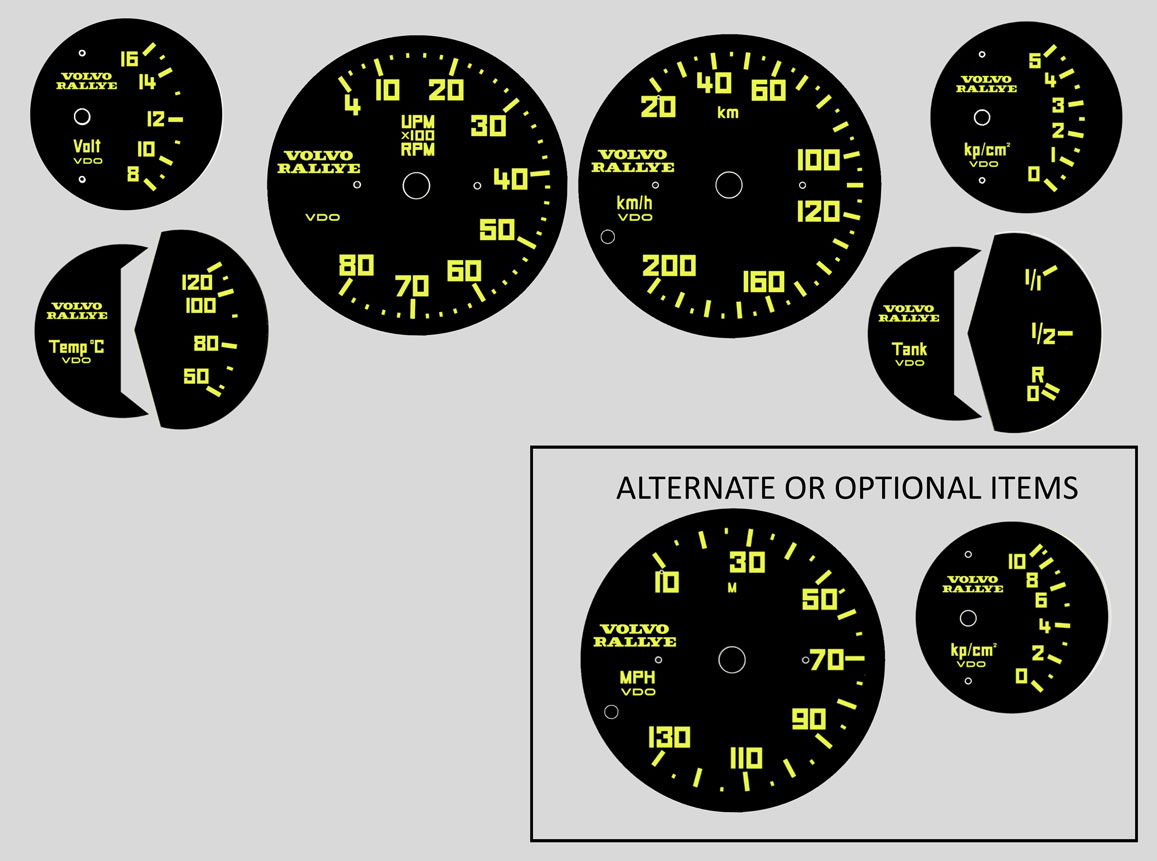

Below set: Style-B RARE 'Volvo Rallye' 200 km/h (or 130 MPH) set.
These sets are called "RARE Volvo Rallye Style" sets. This set may be made with an optional 130 MPH speedometer or optional 10 bar Oil Pressure.

All odometer windows or "cut-outs" will be done for you before these are sent.






Below Images
M O D I F I E D   S T Y L E
F A C E S


Below Images
  'Restoration Style'
  Style C: WHITE Face Set

Obviously these gauges never came in white, but there have been a few requests.

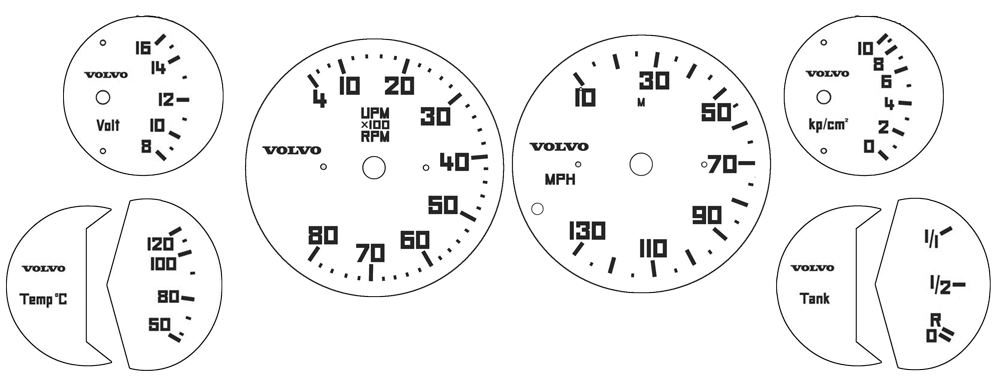

Below set: STYLE-C 130 MPH set, same style as above 'Restoration' sets, except it's white with black text.
This set is also available with a 200 km/h speedometer if needed.
All odometer windows or "cut-outs" will be done for you before these are sent.




Below Images
  Style D: (Custom R1): black face 130 MPH
A number of modified changes are available with this style.

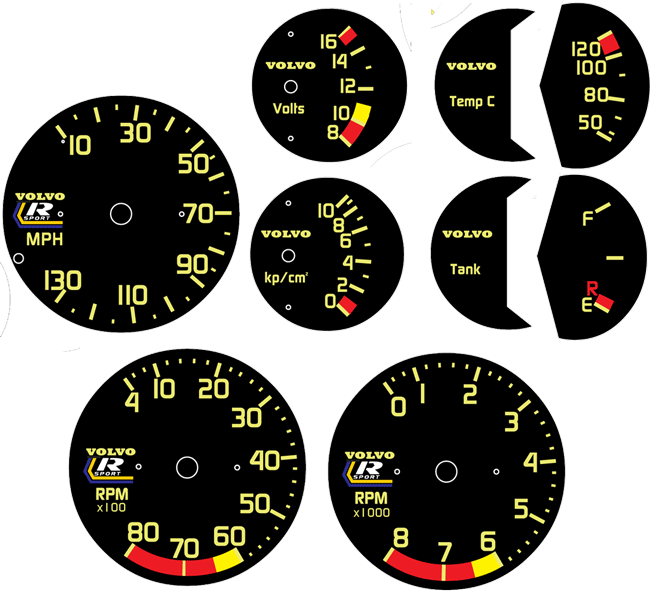

Below set options: Style D Blackface with special text font, 130 MPH, 1-digit tach, yellow text, 120C temp, "Tank" on fuel gauge, R-Sport logos on speedo and tach, VOLVO on small gauges.

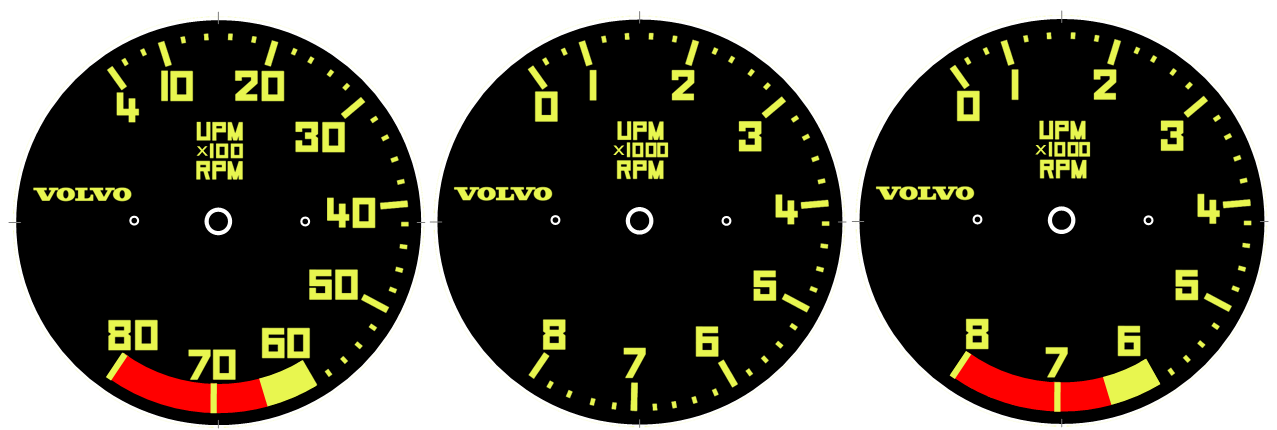

If requested, this set may instead include a 2-digit tach, 250F temp, or "Fuel" on fuel gauge.
All odometer windows or "cut-outs" will be done for you before these are sent.

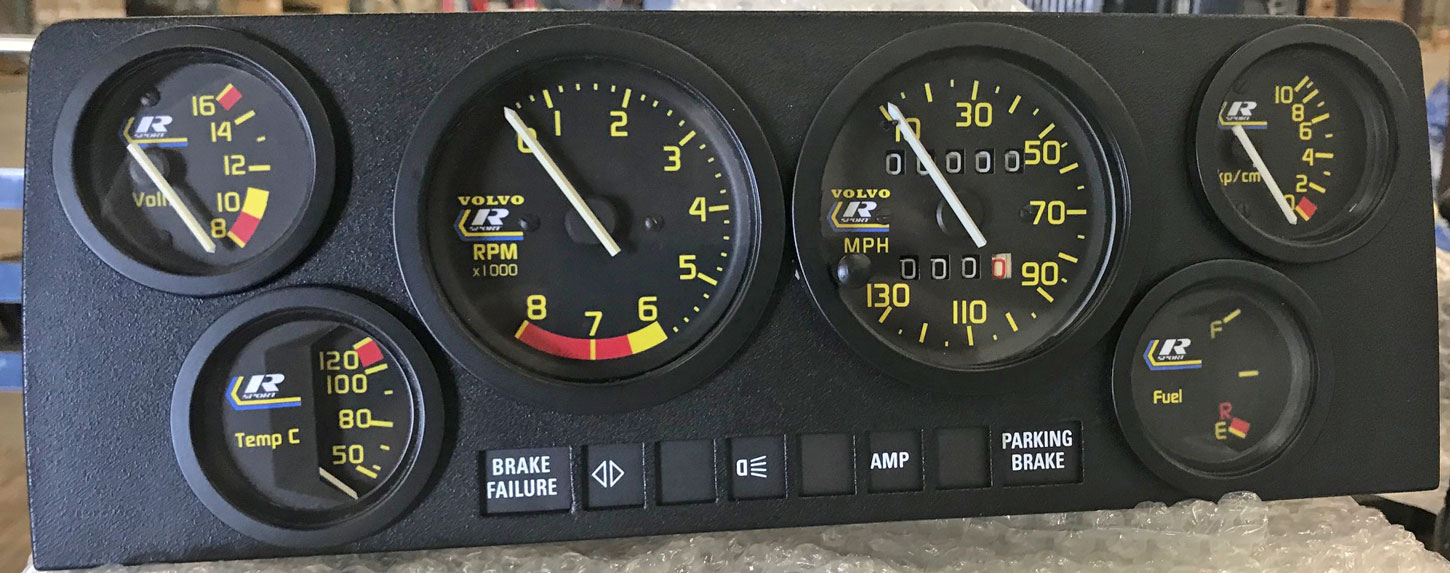

The below installed overlay face set is the R1 Blackface 130 MPH set with 1-digit tach.



Below Images
  Style E: (Custom R1): black face 200 km/h
A number of modified changes are available with this style.

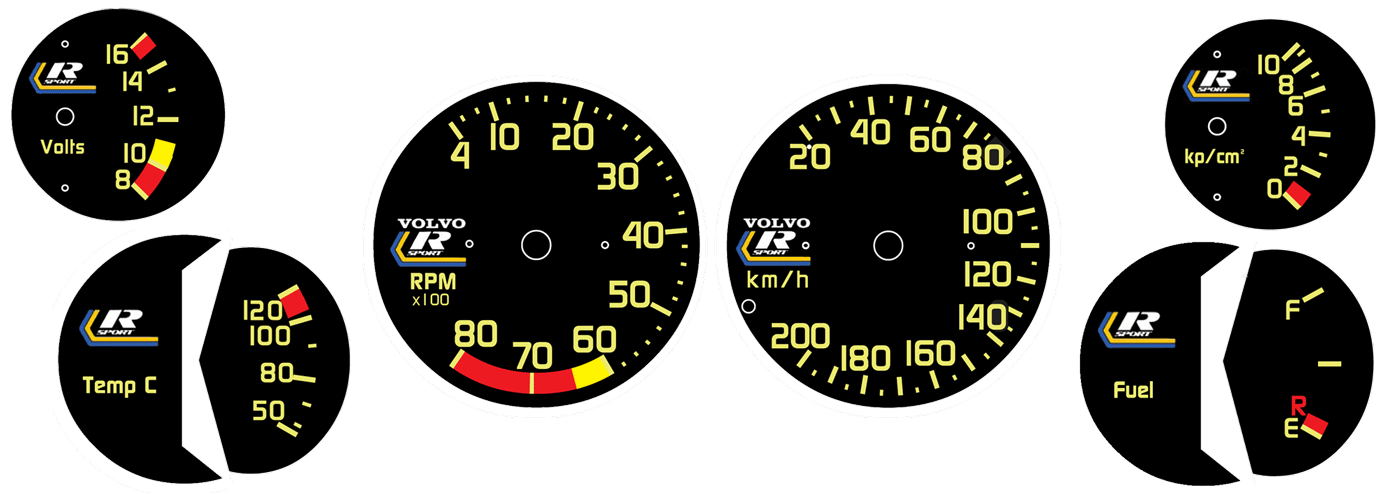

Below set: Style E-1 blackface
with special text font, 200 KMH (speedometer face has been modified to include ALL speed numbers), 2-digit tach, 120C temp, R-Sport logos on ALL gauges, "Fuel" on fuel gauge instead of "Tank."
If requested, this set may include a 1-digit tach, 250F temp, or "Tank" on fuel gauge.
All odometer windows or "cut-outs" will be done for you before these are sent.


Below set: Style E-2 The below installed overlay set is a variation of the above R1 Blackface 200 km/h.
This set has "VOLVO" on all gauges instead of an R-Sport logo. It also has a 1-digit tach.


Below Images
  Style F: (Custom R1-A) black face 200 km/h
Below set: Style F blackface with special text font, red and yellow limit areas removed, 200 KMH (speedometer face modified to include ALL speed numbers), 2-digit tach, 120C temp, VOLVO on ALL gauges.
If requested, this set may include a 1-digit tach, 250F temp, or MPH speedometer.

All odometer windows or "cut-outs" will be done for you before these are sent.





Below Images

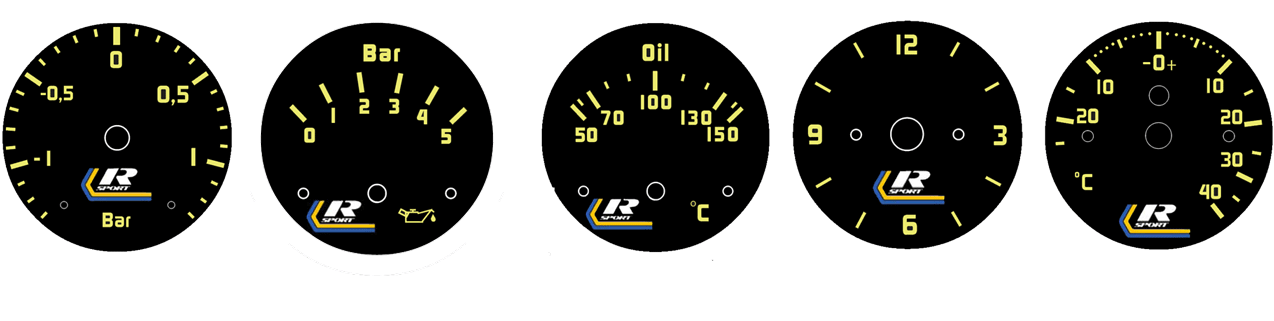

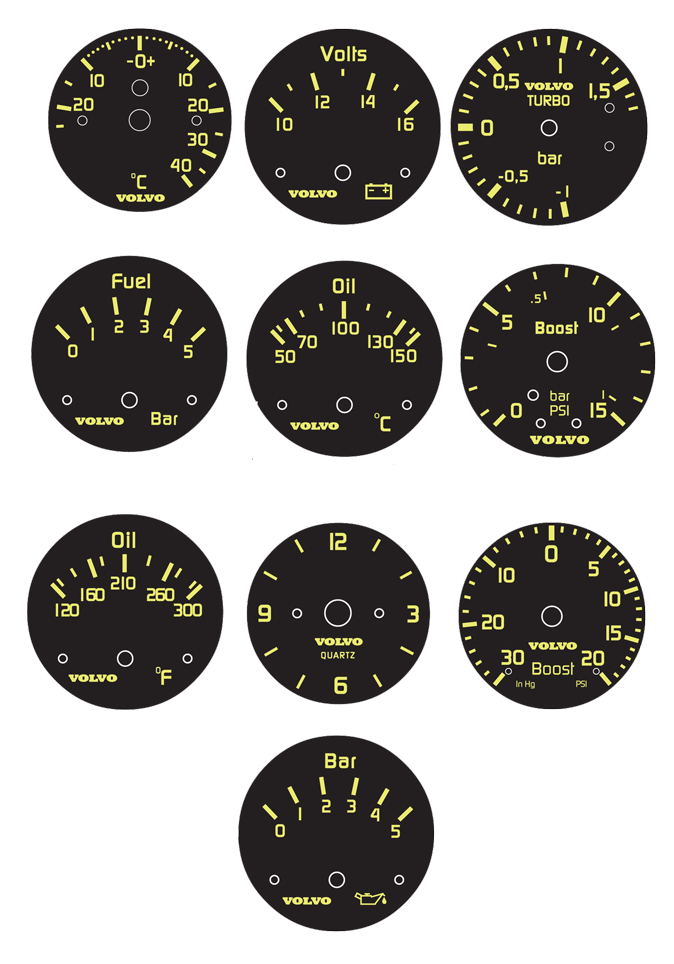

  Black 52 mm Faces for above Style E or F
These small gauge faces are designed to appear the same as above Style E or F sets with the same special font and colors.  They may be used to modify Volvo or VDO 52mm gauges to match the style.
 If you have a gauge that is not shown, it can probably be done. Just email me.
These faces and more can be found in my 52 mm Face Page.



Below Image
  Black face early 240 clock for Style E or F

Designed to appear the same as above Style E or F sets with the same font.  May be used to modify the clock found in a 1975-80 240 and 260.
This face may be ordered for the same cost as any 52 mm face.




Below Image

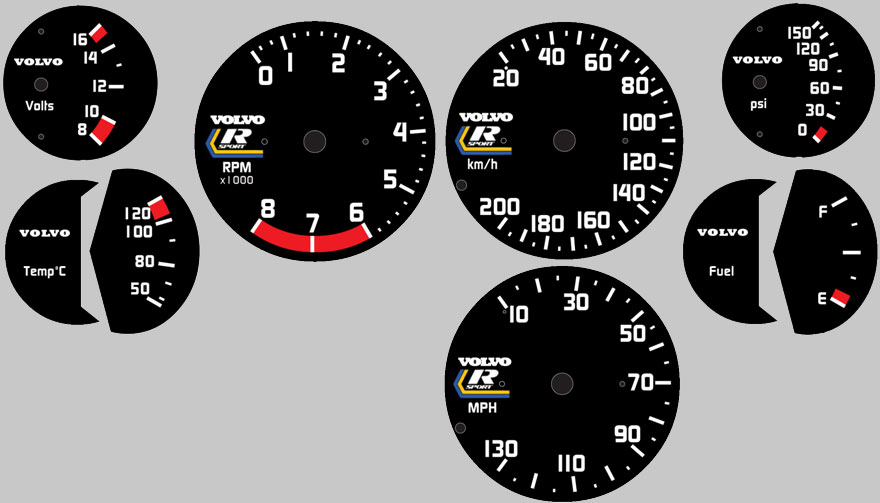

  Style G: (Custom R1-B) black face 130 MPH or 200 km/h.
White text.
This set has been modified compared to the above Style R1 sets:  WHITE TEXT has been added. Also the text on all faces, EXCEPT for the Tachometer has been reduced slightly to make the faces a little less crowded.
Below set: Style G blackface
with special text font, 130 MPH or 200 km/h, 1-digit tach, 120C temp, 150 psi oil pressure, "Fuel" on fuel gauge instead of "Tank", R-Sport logos on speedo and tach, VOLVO on small gauges.
If requested, this set may include a 2-digit tach,  250F temp, or "Tank" on fuel gauge instead of "Fuel," or a 10 bar oil pressure face.
All odometer windows or "cut-outs" will be done for you before these are sent.



Below Image

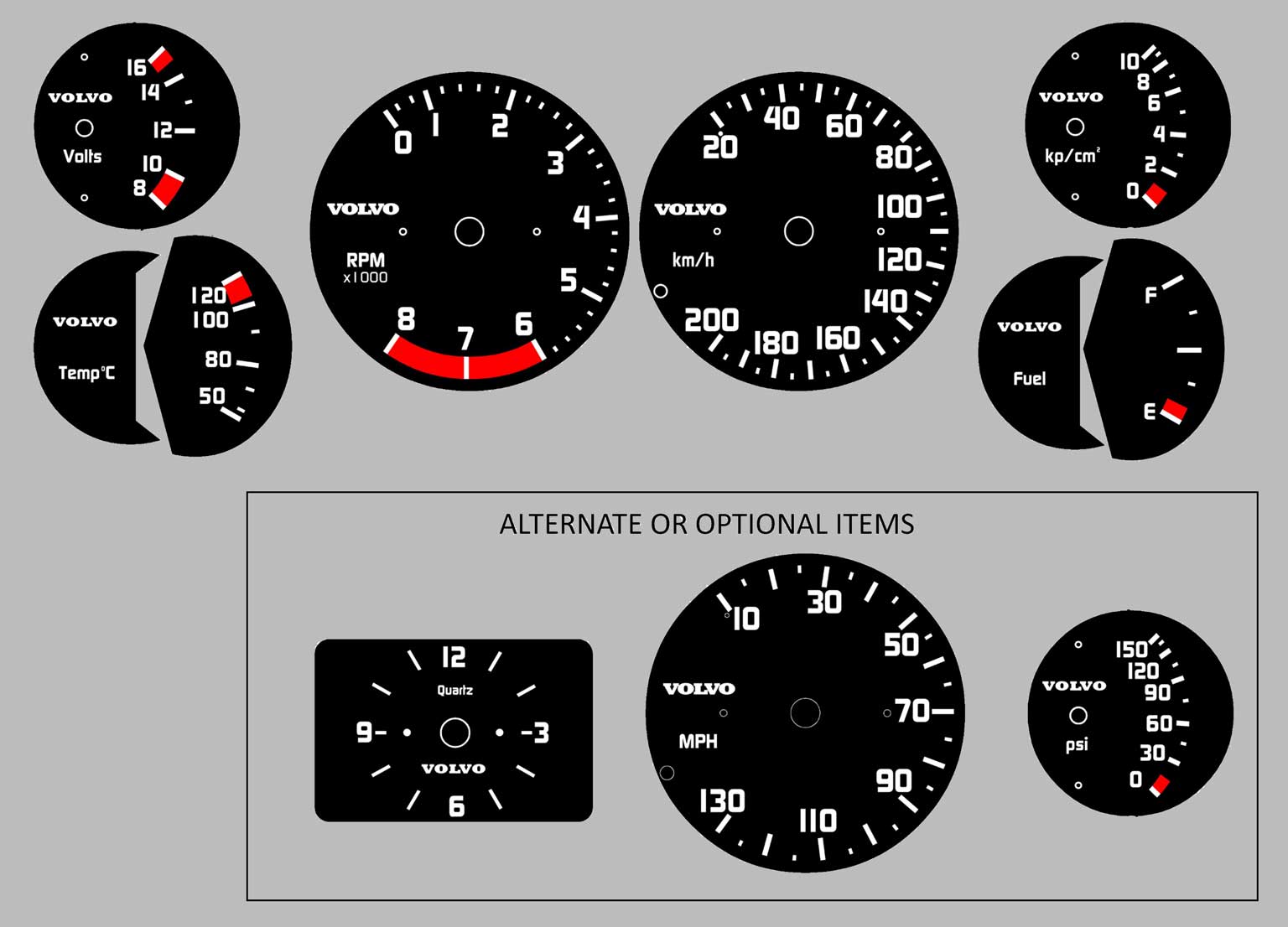

  Style H: (Custom R1-C) black face 130 MPH or 200 km/h speedo.
White text.
This set has been modified compared to the above Style R1 sets:  WHITE TEXT has been added. Also the text on all faces, INCLUDING for the Tachometer has been reduced slightly to make the faces a little less crowded.
Below set: Style H blackface
with special text font, 130 MPH or 200 km/h, 1-digit tach, 120C temp, 10 bar or 150 psi oil pressure, "Fuel" on fuel gauge instead of "Tank",  VOLVO logos on all gauges.
If requested, this set may be made with a 2-digit tach,  250F temp, or "Tank" on fuel gauge instead of "Fuel."
All odometer windows or "cut-outs" will be done for you before these are sent.


Below Image

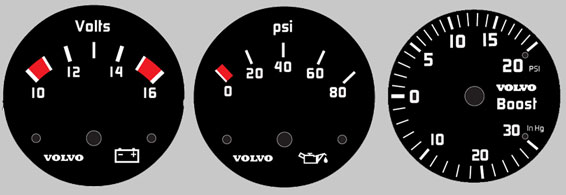

  Optional Style G or H black face 52 mm Faces

Designed to appear the same as above Style E or H sets with the same font.  These may be used to modify Volvo 52mm gauges to match the above style. Additional faces may be created when requested.




Below Image

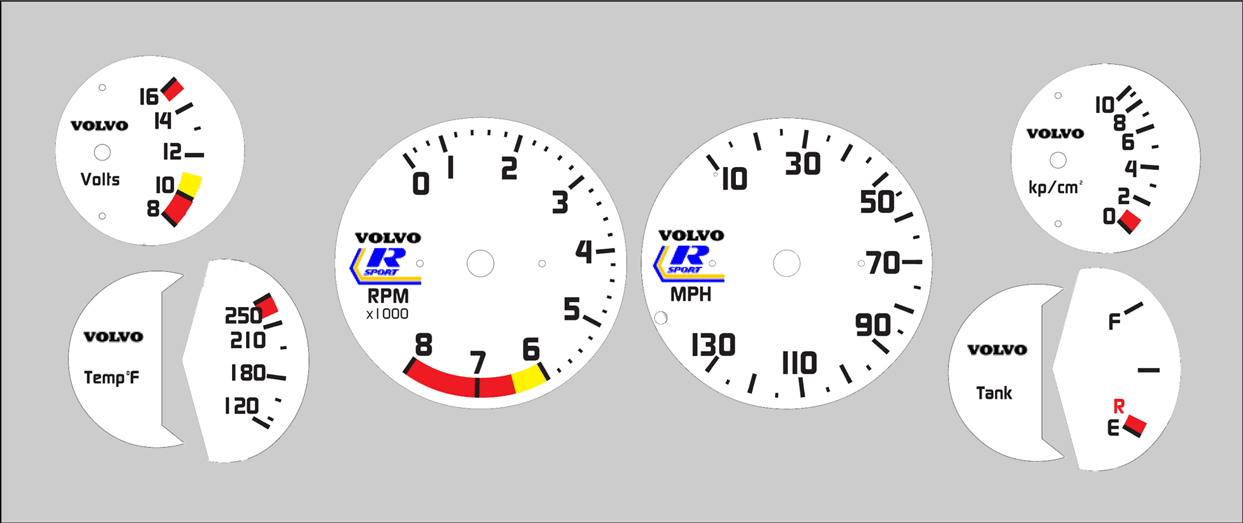

  Style J: (Custom R2-A) white face 130 MPH.
Black text.
Below set: Style J whiteface with special text font, 130 MPH, 1-digit tach, 250F temp, "Tank" on fuel gauge, R-Sport logos on speedo and tach, VOLVO on small gauges.
If requested, this set may include a 2-digit tach, 120C temp, or "Fuel" on fuel gauge instead of "Tank."
All odometer windows or "cut-outs" will be done for you before these are sent.




Below Image

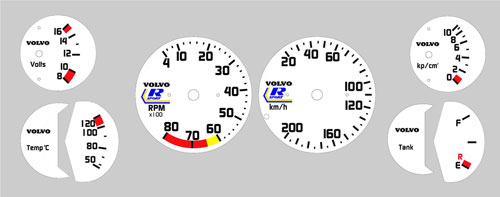

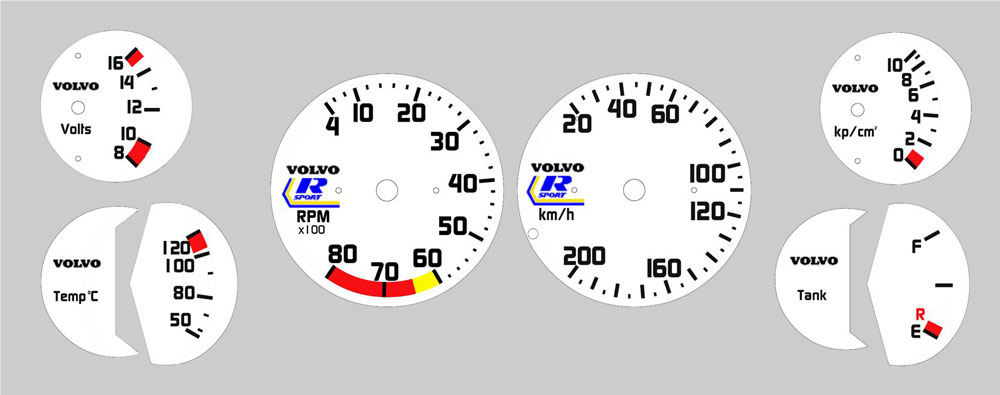

  Style K: (Custom R2-B) white face 200 km/h.

Below set: Style K whiteface with special text font, 200 km/h, 2-digit tach, 120C temp, "Tank" on fuel gauge, R-Sport logos on speedo and tach, VOLVO on small gauges.
If requested, this set may include a 1-digit tach, 250F temp, or "Fuel" on fuel gauge instead of "Tank."
All odometer windows or "cut-outs" will be done for you before these are sent.




Below Image

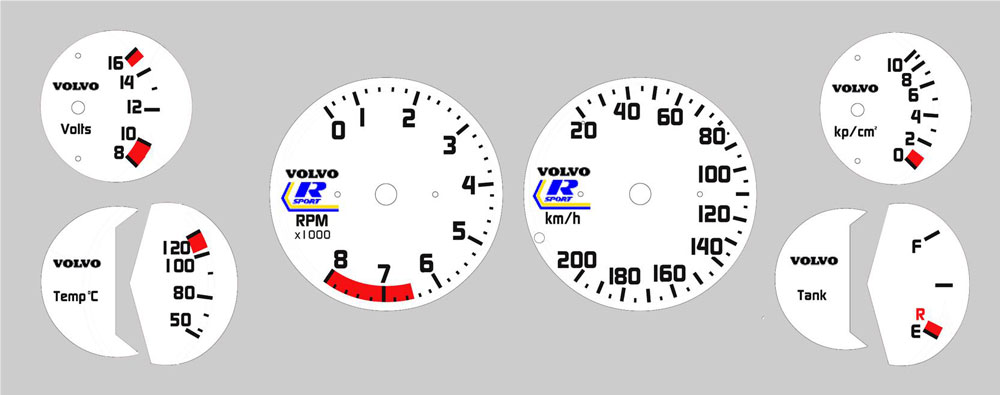

  Style L: (Custom R2-C) white face 200 km/h.

Below set: Style L whiteface with special text font, 200 km/h (special speedo with more numbers), 1-digit tach, 120C temp, "Tank" on fuel gauge, R-Sport logos on speedo and tach, VOLVO on small gauges.
If requested, this set may include a 2-digit tach, 250F temp, or "Fuel" on fuel gauge instead of "Tank."
All odometer windows or "cut-outs" will be done for you before these are sent.

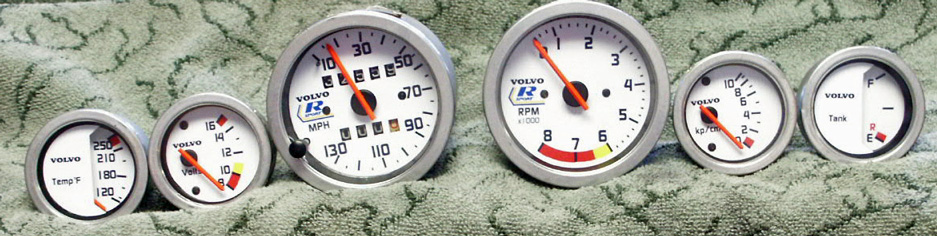

The below installed overlay set is done with the above R2 Whiteface style.



Below Image

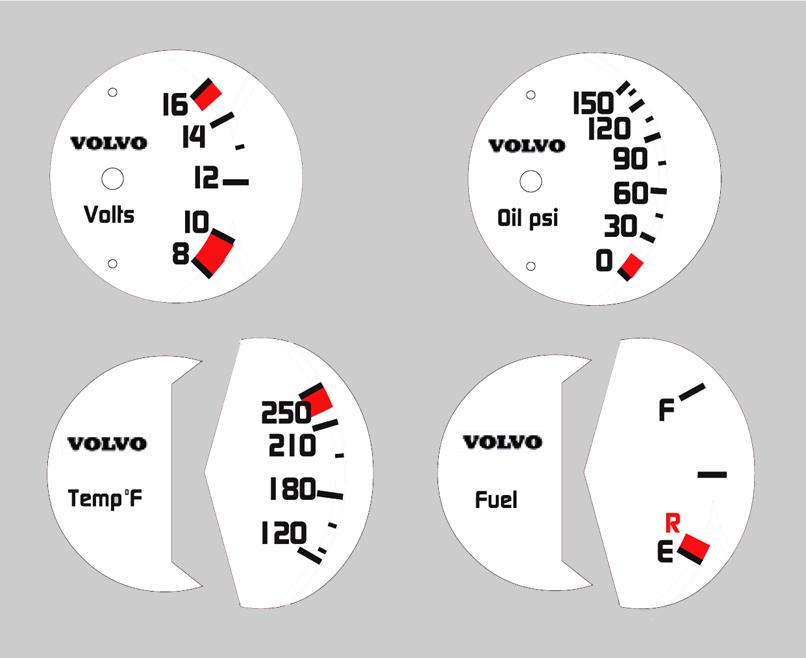

  Additional Options for Style J, K or L white face sets

Optional faces shown below: 250F temp, "Fuel" on fuel gauge instead of "Tank", and Oil Pressure 150 PSI gauge.





Adhesion Promoter is recommended to improve the installation of gauge face overlays. It is not needed in all situations, however if your car may be subjected to high interior temperatures frequently (parked outside) or many times over the years, the adhesive on the backs of overlays can soften and allow the edges to lift. Applying a little of this before installation on the faceplate edges will greatly improve adhesion. For convenience, a cotton swab is included. This isn't some mythical snake-oil. It has been tested and it works.

Applying this stuff is easy. Dip the cotton swab in the liquid and smear the edges of the face plates where the overlays will be. It dries in seconds.
CAUTION: Using this stuff makes things stick very well, so be careful when placing the overlay down. It will be harder to lift and re-position.




Order Quantity: Option:

To Check Out or View Cart, click below button.


Installation Instructions:
 https://www.davebarton.com/pdf/240FaceInstallR-Sportgauges.pdf
(0.4 mb PDF)




PURCHASING A SET FOR YOUR 240
PRICES
  All RSport/Rallye Overlay Sets on this page are priced as follows:
8-piece Rallye Set for all 6 gauges: $36.00 USD.
Single speedo face only: $15.00 USD
   52 mm faces or clocks or extra small faces are $4.00 each. Most may be ordered in my 52 mm Face Page.
Shopping Cart Order Panel:


Order Quantity: Type:   Speedometer:

Additional order details may be entered here:

After clicking 'Add to Cart', please then add shipping below . . .


Order Quantity: Type:   Speedometer:

Additional order details may be entered here:

After clicking 'Add to Cart' above, please then add shipping below . . .
