960 (and S90/V90) Coil Repair Harnesses (6 cyl 1992-98)
5 Cylinder (1999-2011) Coil Repair Harnesses
960 FULL Engine Wire Harnesses
4 Cylinder (2000-2004) S40, V40 Coil Repair Harnesses 6 Cylinder (1999-2006) Coil Repair Harnesses
Main Volvo Harness Page
Shipping Info

Online Payments


Custom replacement COIL REPAIR HARNESSES for
Volvo 960, S90, and V90 1992-98.

Why do coil harnesses need to be replaced in Volvo cars?
Years ago Volvo service technicians begain noticing severe problems with the main engine harnesses (near the coils) in 1992 and later Volvo 960, S90, and V90 models. These cars are equipped with the 6 cylinder 24 valve engine.  I began to get emails from these concerned technicians.
Volvo technicians were dismayed after discovering these problems and then finding that Volvo was demanding highly inflated prices for 960 main engine harnesses (up to $5,000 each).

  This has become a COMMON PROBLEM, usually limited to the portion of the harness that goes to the 6 ignition coils under the top coil cover on the engine.
This portion of the harness has a tendancy to malfunction.  The cause is due to prolonged exposure to the high engine temperatures under that coil cover.  The 2-pole plugs are literally falling apart after years of high heat
(see photos below).

When I first began hearing about this problem I began investigating a solution.  I had been been working with 240 and 740 harnesses for a lot of years, so I began looking at 960 models in salvage yards. I took several apart to see what was going on in the harnesses. It certainly appears there were many 960s that were sent to salvage yards because of this easy-to-fix issue.
Volvo 1992-98 960, S90, V90 coil repair
                            harness.Volvo 1992-98 960, S90, V90 coil repair                            harness.
<<<

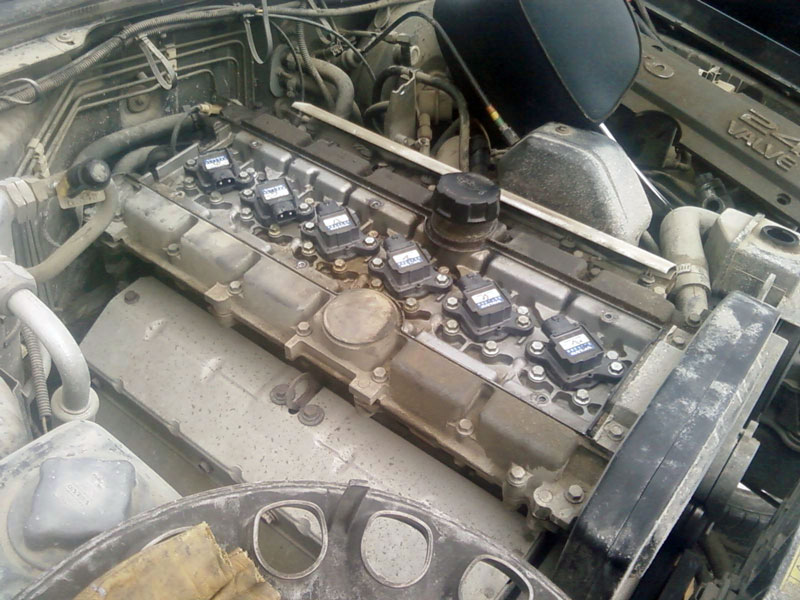

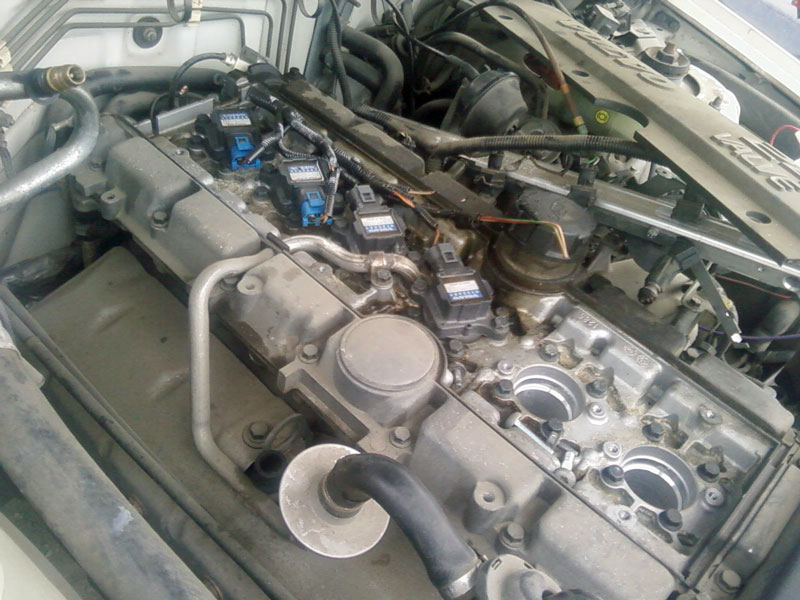

  Here we have a couple salvage yard photos.  The first photo on the left is a 1993 960.  The second photo is a 1995.  The coil configuation and harness connections under the coil cover are identical in all models from 1992 through 1998




Volvo 1992-98 960,

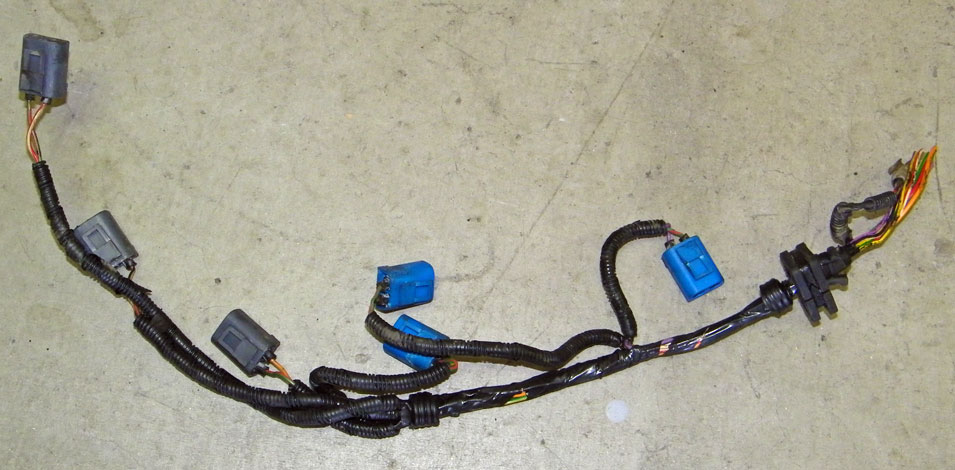

                                S90, V90 coil repair harness.<<< At left is an original Volvo 960 COIL HARNESS section I removed from a 960.  As you can see in the close-up, the coil connectors have begun deteriorating.

Volvo 1992-98 960,

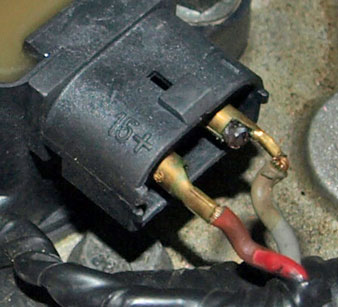

                                S90, V90 coil repair harness.<<< The connectors will deteriorate until there is almost nothing left to hold and seal the connection.

Volvo 1992-98 960, S90, V90 coil
                                repair harness.






CUSTOMER FEEDBACK:
It took me forever to finally find time to install the ignition coil wiring harness I ordered for my 94 Volvo 960, which I did yesterday.  It fit great and I am totally pleased with the quality of the harness, especially the fact that the wire colors match the original wiring.  That made it a no brainer when splicing into the original connections.  Mine was in sad shape, broken plastic, pins starting to corrode, etc.  Yours was the perfect solution and I'm so glad you are still making parts to help keep these older Volvos on the road.  Totally pleased. Thanks.  If I could comment on your web site, I would.  T.M., Waynesboro, VA.



REPLACEMENT OPTIONS:
Until now, there very limited options for a Volvo 960, S90 or V90 owner with this problem:
1.  Replace the complete engine harness. This harness is only available from a Volvo dealer at greatly inflated prices.  When I checked, I was quoted over $5,000 for the engine harness for a 1996 960 (Volvo PN 9128879).
2.  Have someone make repairs using junk yard parts or parts you might get from Volvo.
3.  Send the car to the junk yard.  This actually happens a lot.

There is no reason to replace an entire engine harness if only the 7 wire coil branch is damaged due to heat.  So at the request of a number of Volvo technicians, I began having new portions of this coil harness made so anyone can make these repairs.

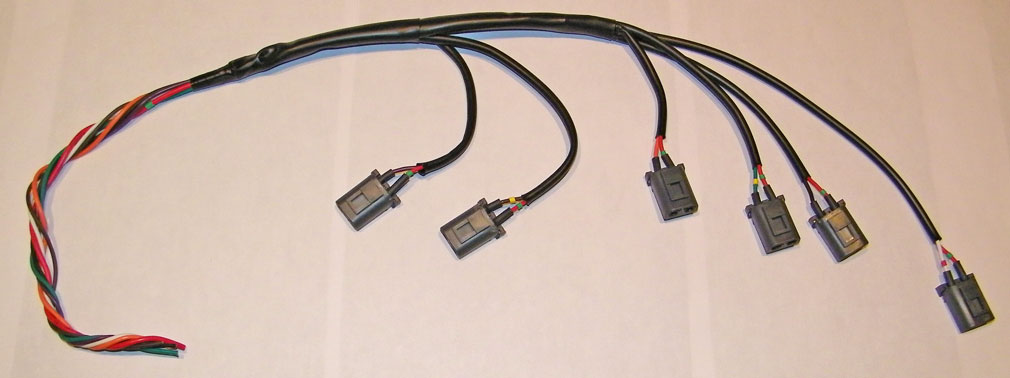

This is the new replacement Coil Repair Harness.
A new repair harness will solve this common coil connector problem
in any 960, S90 or V90 (1992-98).

Volvo 1992-98 960, S90, V90 coil
                      repair harness.
This REPAIR HARNESS and INSTALLATION KIT will allow you to splice a new 6 COIL BRANCH into your existing main engine harness (only 7 wires need to be spliced) and it will replace the damaged section that goes to all 6 ignition coils.  This harness offers about 8 inches (20 cm) of extra wire length behind the cylinder head for splicing into your original engine harness.

FULLY DETAILED INSTRUCTIONS WITH PHOTOS:
CLICK HERE (PDF 360 kb)

IN STOCK
If this item becomes out of stock, manufacturing lead time will be about 3-4 weeks.
Price: $165.00 each plus shipping.

ORDER HERE
Order Quantity:
Select Shipping Option:

View Cart or Check Out
.



Separate Shipping for Harnesses Below
Use ONLY if shipping needs to be added separately (multiple harnesses, etc).
Shipping cost is the same for one or multiple items.


Separate Shipping:


View Cart or Check Out
.



Questions or more info: CONTACT




1999-2006 Volvo
6 Cylinder Coil NEW Repair Harnesses

1999-2006 Volvo with 6 Cylinders.
Why do coil harnesses need to be replaced in Volvo cars?
  As these cars age, deterioration of the coil plugs under the top coil cover on these engines is becoming more common.
The cause is due to prolonged exposure to the high engine temperatures under the coil cover.  The failure of these 4-pole plugs will cause poor running and OBD failure codes. Using this Coil Repair Harness will allow the rest of your engine harness to remain intact.

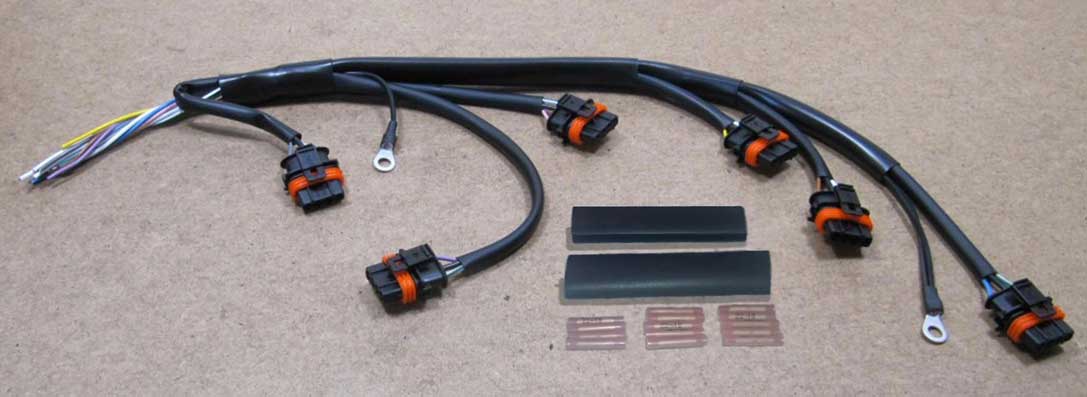

Volvo 1999-2006 6 cylinder coil repair
                        harness.
This new REPAIR HARNESS and INSTALLATION KIT will allow you to splice a new 6 COIL BRANCH into your existing main engine harness (12 wires will need to be spliced) and it will replace the damaged section that goes to all 6 ignition coils. It includes butt splices and heat-shrink tubing. New original Volvo connectors are used in this harness.

FULLY DETAILED INSTRUCTIONS WITH PHOTOS:
CLICK HERE (PDF 930 kb)


  IN STOCK
If this item becomes out of stock, it may still be ordered. Manufacturing lead time will be about 3-4 weeks.
Price: $175.00 each plus shipping.

ORDER HERE
Order Quantity: Select Option:
Select Shipping Option:


View Cart or Check Out
.





Separate Shipping for Harnesses Below
Use ONLY if shipping needs to be added separately (multiple harnesses, etc).
Shipping cost is the same for one or multiple items.


Separate Shipping:


View Cart or Check Out
.



Questions or more info:
CONTACT

OPTIONAL ITEM
VVT Connector Harness Pigtails
Available to order with coil repair harness purchase.
Some models will have a Variable Valve Timing (VVT) solenoid mounted under the coil cover. This solenoid is near the front of the engine near the timing sprockets.  A new connector plug with wire pigtails is available below if you decide to renew it when replacing the coil repair harness. You may re-use your old connector and wires, but you will need to remove the wires from your old coil harness bundle.

NEW VVT Connector with Wire Pigtail
Single Connector Type 1 (large)

If you find a different connector on your 1999-2006 6 cylinder car, please let us know.
Wire pigtail length is about 30 inches.

Volvo 1999-2006 6 cylinder VVT
                          (Type 1) harness.Volvo 1999-2006 6 cylinder
                            VVT (Type 1) harness.

Price: $16.00 each plus shipping if purchased with coil repair harness ABOVE.

$20.00 each if purchased separately BELOW.

  ORDER HERE
Order Quantity: Option:
Select Shipping Option:

View Cart or Check Out.


bos8e





1999-2011 Volvo
5 Cylinder
New Replacement Coil Repair Harnesses

1999-2011 Volvo Turbo and Non-Turbo, 40, 50, 60, 70, 80 and XC90 series with 5 Cylinder Engines.

Why do coil harnesses need to be replaced in Volvo cars?
  As these cars age, deterioration of the coil plugs under the top coil cover on these engines is becoming more and more common.
The cause is due to prolonged exposure to the high engine temperatures under the coil cover.  The failure of these 4-pole plugs will cause poor running and OBD failure codes. Using this Coil Repair Harness will allow the rest of your engine harness to remain intact.




Volvo 1999-2011 5 cylinder coil repair
                        harness.
This new REPAIR HARNESS and INSTALLATION KIT will allow you to splice a new 5 COIL BRANCH into your existing main engine harness (only 7 wires need to be spliced) and it will replace the damaged section that goes to all 5 ignition coils. This kit includes butt splices and heat-shrink tubing.
New original Volvo connectors are used in this harness.

NOTE ABOUT FITMENT YEAR RANGE
These harnesses were originally designed to fit 1999-2007 models with 5 cylinders. Now will now fit models through the 2011 model year. The below INSTALLATION GUIDE will explain how a later model installation is done. The fit is the same, however there are some wire color differences, so fitting to a 2008 to 2011 model requires only matching up some wire colors.
At this time, I cannot comment on 2012 and later models.  I have not yet located sufficient wiring diagrams for 2012 or later models.

FITTING THIS HARNESS TO THE 2004 to 2007 S60R or V70R
The coils in the R models were slightly different and used a slightly different connector.  The difference is small and it is a very simple task to modify the connectors supplies with this harness to correctly fit. I have included instructions in the below GUIDE to show how this modification is done. Have a look at the instructions for details. Please email me if you have questions.

FULLY DETAILED INSTRUCTIONS 12 PAGES:
CLICK HERE (PDF 1.5mb)


IN STOCK
If this item becomes out of stock, manufacturing lead time will be about 3-4 weeks.
Price: $175.00 each plus shipping.

ORDER HERE
Order Quantity:
Option #1: Option #2:
Select Shipping:


View Cart or Check Out
.





Separate Shipping for Harnesses Below
Use ONLY if shipping needs to be added separately (multiple harnesses, etc).
Shipping cost is the same for one or multiple items.


Separate Shipping:


View Cart or Check Out
.



Questions or more info:
CONTACTs6





OPTIONAL ITEMS

VVT or CVVT Connector Harness Pigtails Below
Available to order with above coil harness purchase.

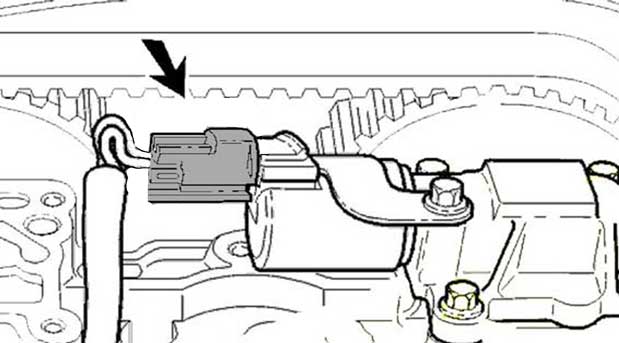

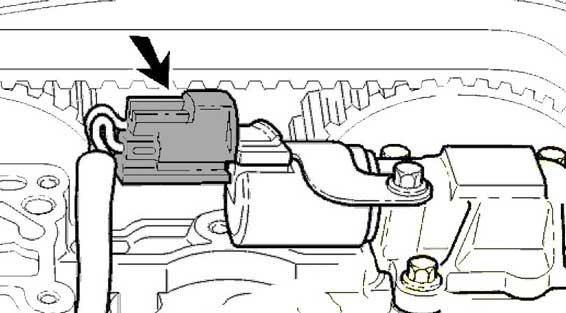

Some models will have Variable Valve Timing (VVT) or Continuous Variable Valve Timing (CVVT). There are electric solenoids mounted under the coil cover and each solenoid will have a connector. Some models will have only one solenoid and some will have two. These solenoids are near the front of the engine behind the timing sprockets and there will be one or two connector plugs.
New connector plugs with wire pigtails are available below if you decide to renew them when replacing the coil repair harness. In cases where dual VVT plugs are present, the plugs different so they cannot be plugged in to the wrong location.  You may re-use your old VVT or CVVT connectors and the wire if you prefer, but you will need to remove the wires from your old coil harness bundle.

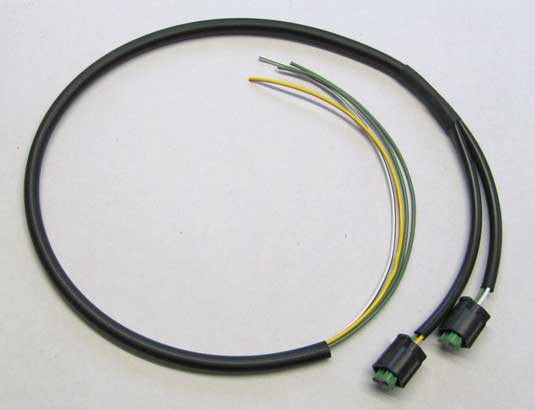

New Dual VVT Connectors with Wire Pigtails

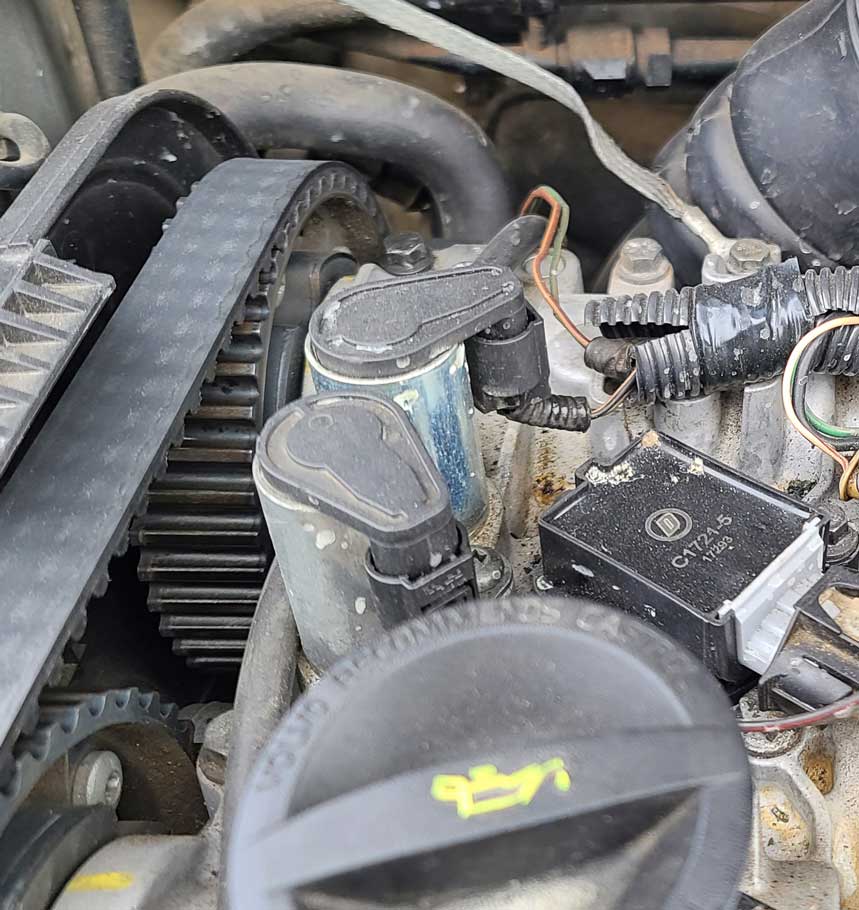

1999-2007 TURBO models (or most likely T5 models) will usually have dual VVT sensors.
Wire pigtail length is about 30 inches.
Volvo 1999-2011 5 cylinder dual VVT harness.
Volvo 1999-2011 5 cylinder dual VVT harness. Volvo 1999-2011 5 cylinder dual VVT harness.

Volvo 1999-2011 5 cylinder dual VVT harness.

Price: $20.00 each plus shipping if purchased with coil repair harness ABOVE.

$24.00 each if purchased separately BELOW.

ORDER HERE
Order Quantity: Option:
Select Shipping Option:

View Cart or Check Out.


bos10e

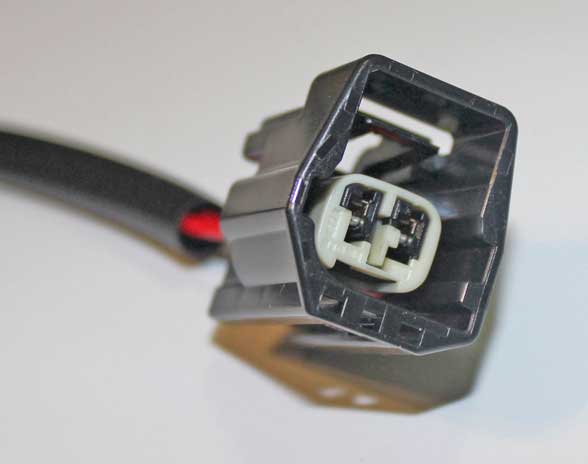

New Single VVT Connector with Wire Pigtail
Single Connector Type 1 (large)

1999-2007 non-turbo models will usually have a single VVT sensor.


There is information that suggests this plug came on the following Volvos:
V70: up to chassis number 171000.
V70XC: up to chassis number 48000.
S60: up to chassis number 92352.
Cars with chassis numbers outside these parameters may have a Single Connector (Type 2 or Type 3) further below.
Wire pigtail length is about 30 inches.

Volvo 1999-2011 5 cylinder VVT
                          (Type 1) harness.Volvo 1999-2011 5 cylinder
                            VVT (Type 1) harness.

Price: $16.00 each plus shipping if purchased with coil repair harness ABOVE.

$20.00 each if purchased separately BELOW.

ORDER HERE
Order Quantity: Option:
Select Shipping Option:

View Cart or Check Out.




New Single VVT Connector with Wire Pigtail

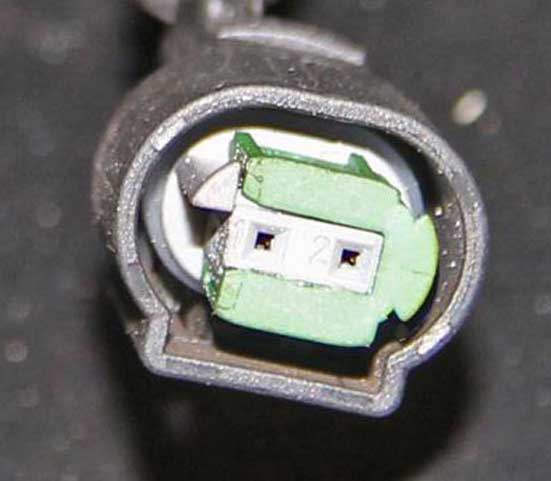

Single Connector Type 2 (small)
Wire pigtail length is about 30 inches.

Finding this one seems to be uncommon, but it does turn up once in a while.

Volvo
                          1999-2011 5 cylinder VVT (Type 2) harness.

Price: $16.00 each plus shipping if purchased with coil repair harness ABOVE.

$20.00 each if purchased separately BELOW.

ORDER HERE
Order Quantity: Option:
Select Shipping Option:

View Cart or Check Out.




New Single VVT Connector with Wire Pigtail
Single Connector Type 3 (small)
Wire pigtail length is about 30 inches.

Finding this one seems to be uncommon, but it does turn up once in a while.

Volvo
                            1999-2011 5 cylinder VVT (Type 3) harness.

Price: $16.00 each plus shipping if purchased with coil repair harness ABOVE.

$20.00 each if purchased separately BELOW.

ORDER HERE
Order Quantity: Option:
Select Shipping Option:

View Cart or Check Out.


bos8e

NEW ITEM

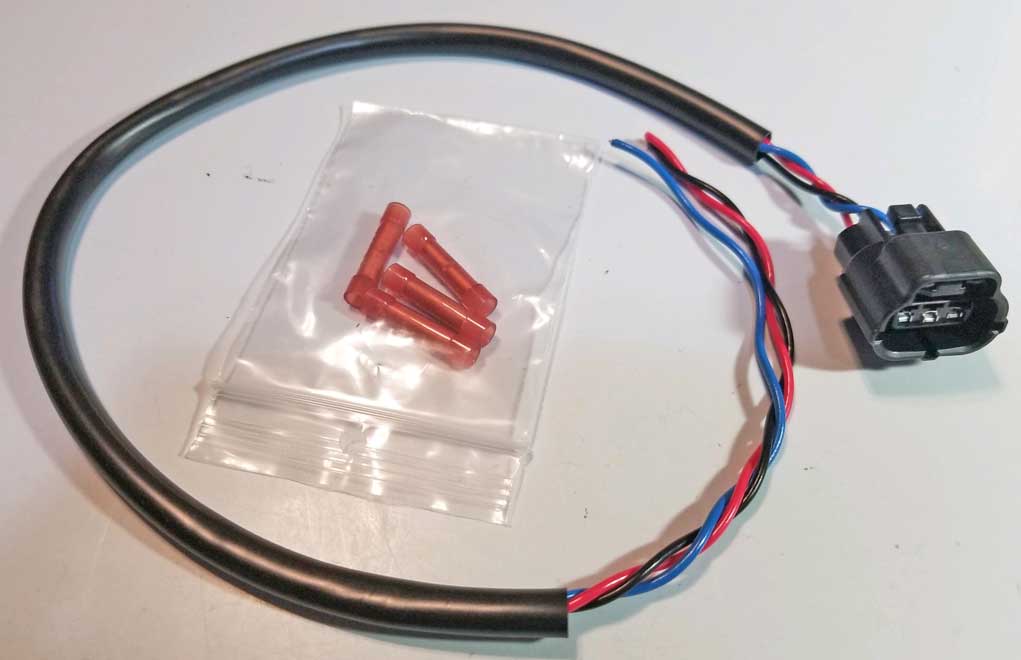

Cam Sensor Connector with Wire Pigtail

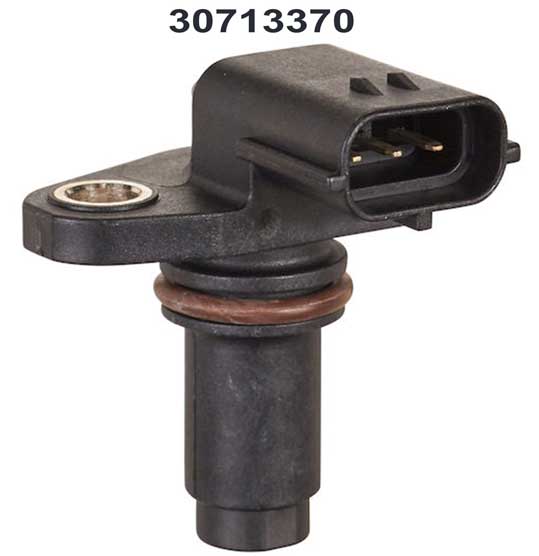

For Volvo PN 30713370 Cam Sensor
Wire pigtail length is about 18 inches.

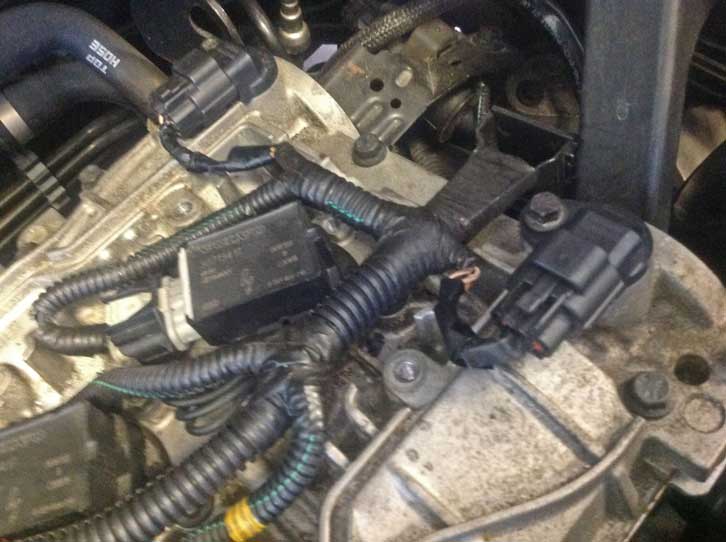

This connector fits the below Cam Sensors (normally 2 per car).
The Cam Sensor is Volvo PN 30713370. It is found on a number of 5 cylinders up to 2014.



Price: $16.00 each if purchased with coil repair harness ABOVE.

$20.00 each plus shipping if purchased separately BELOW.

Available as a Set of TWO or just ONE.
ORDER HERE

Order Quantity: Option:
Select Shipping Option:

View Cart or Check Out.










2000-2004 Volvo 4 Cylinder (S40, V40)
New Replacement Coil Plug Repair Kits

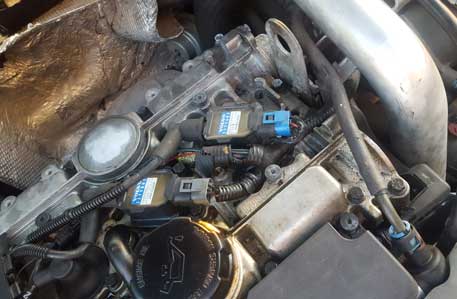

2000-2004 Volvo S40 or V40 series Turbo and Non-Turbo with 4 Cylinders (2 coils).
Volvo 2000-2004 S40 5cyl coil repair harness.  Volvo 2000-2004 S40 5cyl coil repair harness. Why do coil harnesses need to be repaired or replaced in Volvo cars?

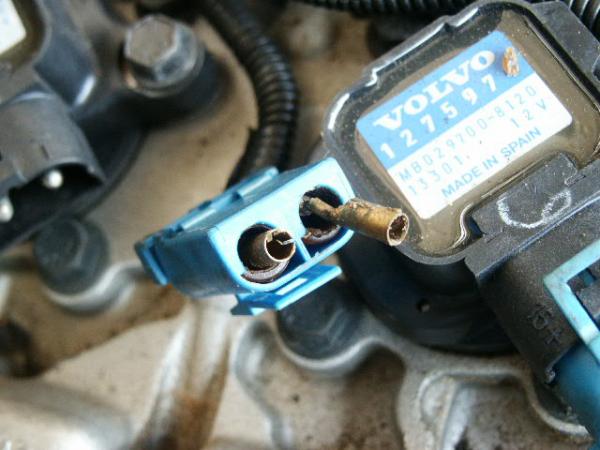

  As these cars age, deterioration of the coil connectors under the top coil cover on these engines is becoming more and more common.
The cause is due to prolonged exposure to the high engine temperatures under the coil cover.  The failure of these 2-pole connector plugs will cause poor running and OBD failure codes. Using this Coil Connector Plug Repair Harness will allow you to repair only the coil plugs and leave the rest of your engine harness intact.

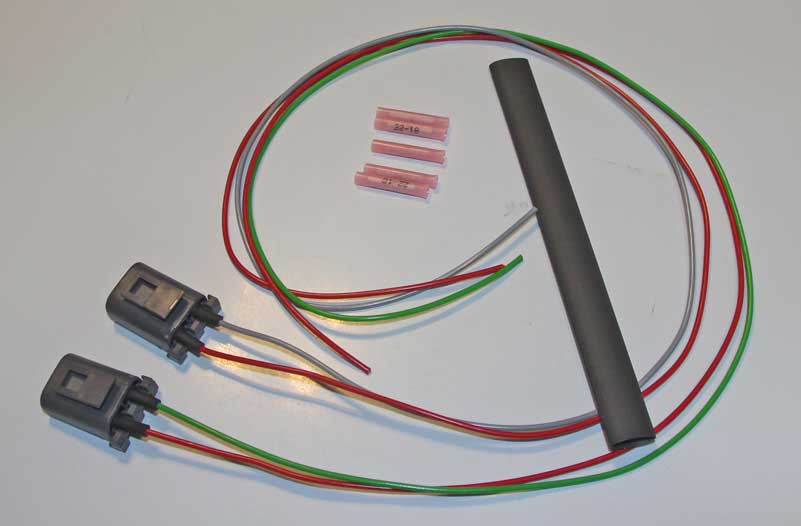

NEW Replacement Coil Plug Repair Kit

This new coil plug repair kit will solve the common coil connector problems in your S40 or V40.
  Volvo 2000-2004 S40 5cyl coil repair harness. Volvo 2000-2004 S40 5cyl coil repair harness.
This REPAIR KIT will allow you to splice two new coil connector plugs into your existing main engine harness (only 4 wires need to be spliced, all of them under the top engine coil cover).  It will replace the damaged plugs going to your existing two coils (as shown here).

INSTALLATION GUIDE (750kb PDF) Click Here
IN STOCK
Price: $30.00 each plus shipping.

ORDER HERE
Order Quantity:       Option:
Select Shipping Option:

View Cart or Check Out
.





Separate Shipping for Harnesses Below
Use ONLY if shipping needs to be added separately (multiple harnesses, etc).
Shipping cost is the same for one or multiple items.



Separate Shipping:


View Cart or Check Out
.




OPTIONAL ITEM
VVT Connector Harness Pigtails
Available to order with coil repair harness purchase.
Some models will have a Variable Valve Timing (VVT) solenoid mounted under the coil cover. This solenoid is near the front of the engine near the timing sprockets.  A new connector plug with wire pigtail is available below if you decide to renew it when replacing the coil repair harness. You may re-use your old connector and wires, but you will need to remove the wires from your old coil harness bundle.

New Single VVT Connector with Wire Pigtail
Single Connector Type 1 (large)
Wire pigtail length is about 30 inches.



Price: $16.00 each plus shipping if purchased with coil repair harness ABOVE.

$20.00 each if purchased separately BELOW.

  ORDER HERE
Order Quantity: Option:
Select Shipping Option:

View Cart or Check Out.









Separate shipping may be added here if needed.
USA Shipping for any 4, 5 or 6 cyl Coil Repair Harness

STEP #1: Select your purchase above and click "Add to Cart."
STEP #2: Select Shipping for this item and click "Add to Cart"
USA Shipping:
Shipping cost is the same for one or multiple items.
STEP #3: Click below button to View Cart or Check Out.


USA SHIPPING NOTES: Priority Mail USA is usually 2 to 3 day shipping.
Priority Mail EXPRESS is ONE DAY in most cases.
USPS delivery times can be calculated here: http://postcalc.usps.com/ServiceCommitments.aspx (use "From Zip Code": 75078)



Separate shipping may be added here if needed.
INTERNATIONAL Shipping for any 4, 5 or 6 cyl Coil Repair Harness
STEP #1: Select your purchase above and click "Add to Cart."
STEP #2: Select Shipping for this item and click "Add to Cart"
International Shipping:
Shipping cost is the same for one or multiple items.

STEP #3: Click below button to View Cart or Check Out.





davebarton.com
prancingmoose.com
240turbo.com
Contact Us
Prancing Moose Stickers
Volvo Stickers
Body/Chassis/Engine Labels
New Items
Other Car Stickers
Steering Wheel Labels
Center Cap Labels/Overlays
Cool Volvo Products
Grill Labels/Overlays
Volvo Wire Harnesses
Conversion Harnesses
Harness Parts/Connectors
Volvo Relays
Coil Repair Harnesses
240 Window Scrapers
740/940 Window Scrapers
Adj Voltage Regulators
Horn Buttons
240 Odometer Repair
740 Odometer Repair
Volvo Gauge Faces
740 Turbo/Boost Faces
240 Black Door Vinyl
850 Odometer Repair
240 Alternator Mod Page
240 Power Mirrors- Switches
240 VIN Decoding
240 Fuse Panel Page
Group A Racing
240 Lowering Page
Fuel Pump Relay Mods
240 Step Relay Elimination
Used Parts & Stuff
Harness Crimping Page
240 Hydraulic Clutch
Classic Auto Air AC
240 Gauge and Electrical Diagrams Limited Slip Read Ends Yoshifab Catch Can Install 240 Mods and Fixes
Side Marker Lights Gentex Mirror Upgrade Yoshifab Drain Tube Install Modified 240 Favorites
SoCal Salvage Yards Unleaded Racing Fuel B26FT Stroker Dave's 245 Spec Page
240 Big Brakes 240 Dash Top Gauge Pod Cadillac 4-Note Horn Install Vacuum Diagrams
4 Speed Fan Controller
Electric Fan Diagrams
Tropical Fan Clutches
Texas Volvo Meets and Events
R-Sport Apparel
Prancing Moose Apparel
Mojave Road Trail Page
Volvo Meet Photo Albums
Ordering Instructions Policies Payments Shipping
Returns Favorite Links





Online Payments
