D A V E ' S   V O L V O   P A G E
"Original 240 STYLE"
  Face Overlay Sets
and 1981 thru 1993 240/260 Series
Return to Main Gauge Face Page
Updated: October 18, 2021     VIEW CART       CONTACT

CLICK HERE FOR ON-LINE INSTRUCTIONS
Full-color step-by-step instructions for disassembling your gauges and installing these faces.

All faces have a Matte/Non-Glare Laminated UV Poly Film over the front to protect the finish.



BELOW SETS: 1981-1993 240/260 series.
Questions about VDO versus YAZAKI instrument clusters. CLICK HERE.

  Original Gauge Sets 1981-93

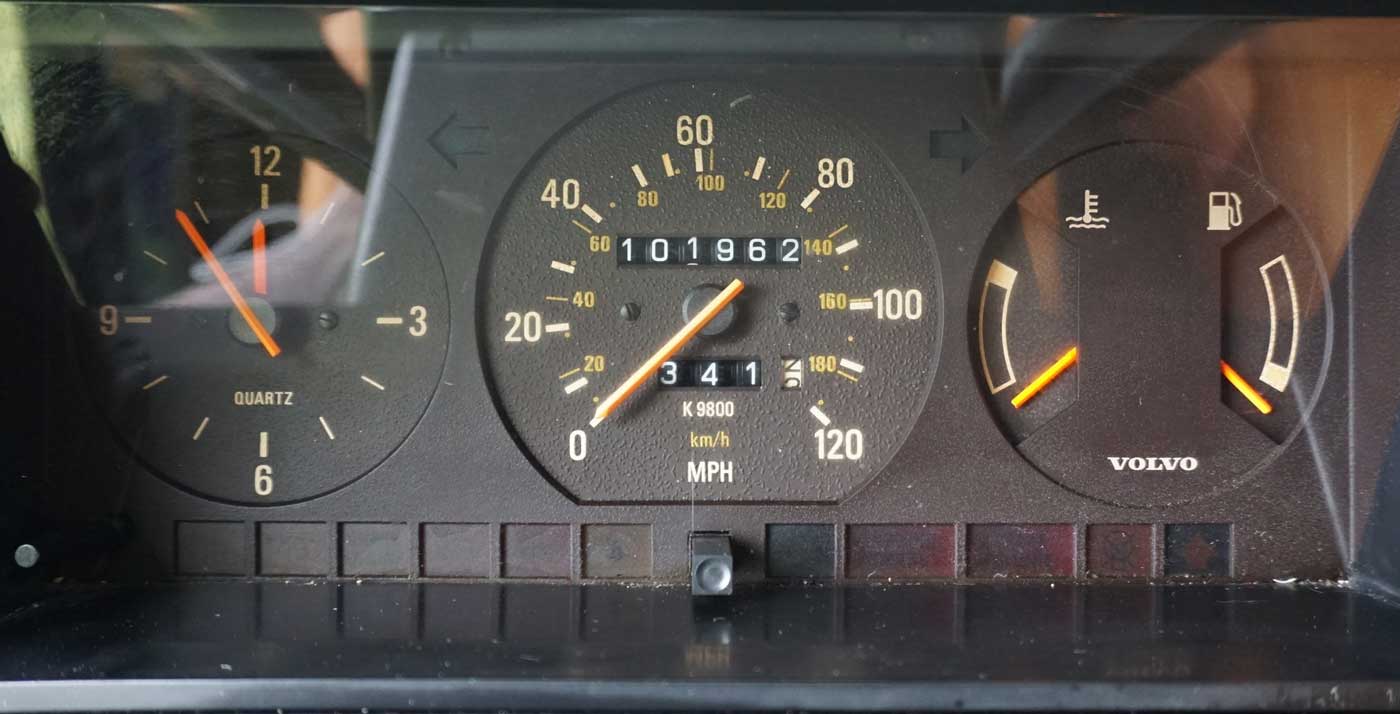

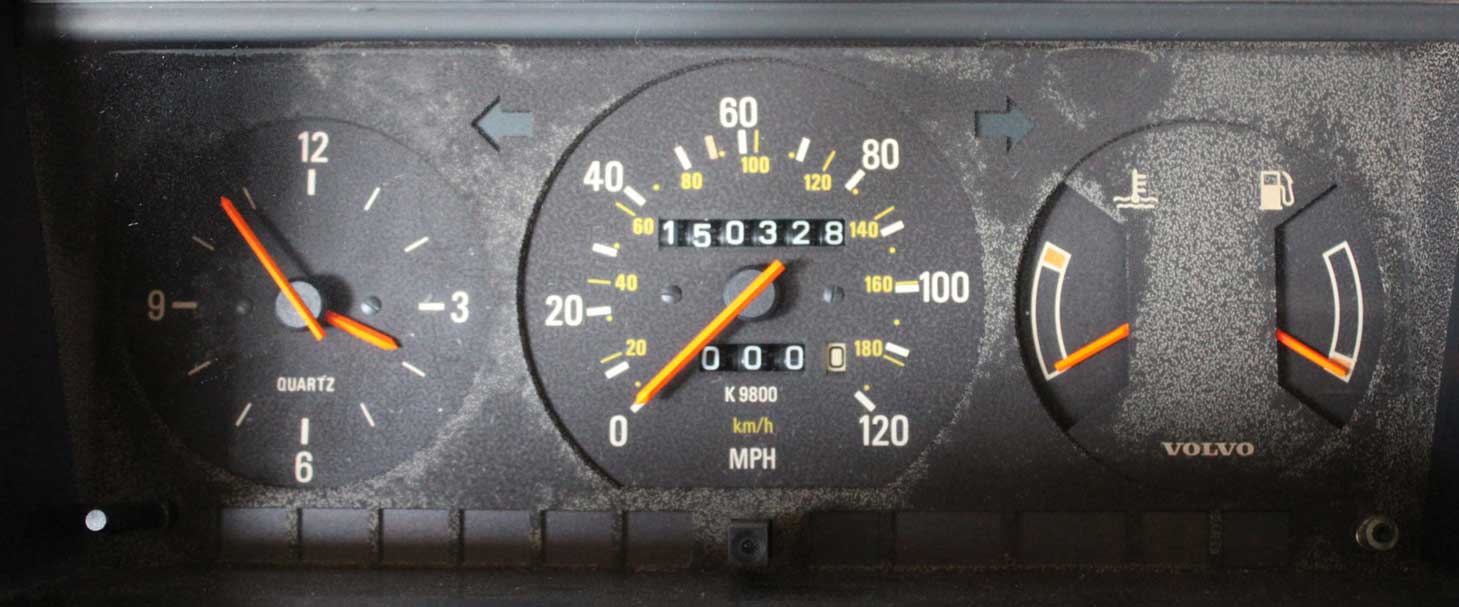

Here are some examples of original 240 instrument clusters.

1981 244 non-turb
o, 85 mph, tachometer

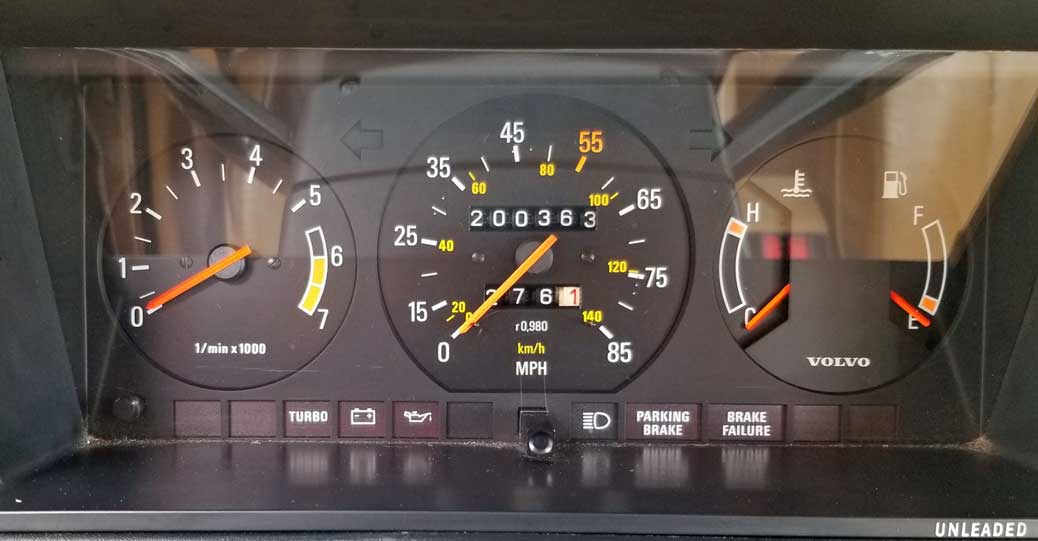

1982 245 Turbo, 85 mph, tachometer

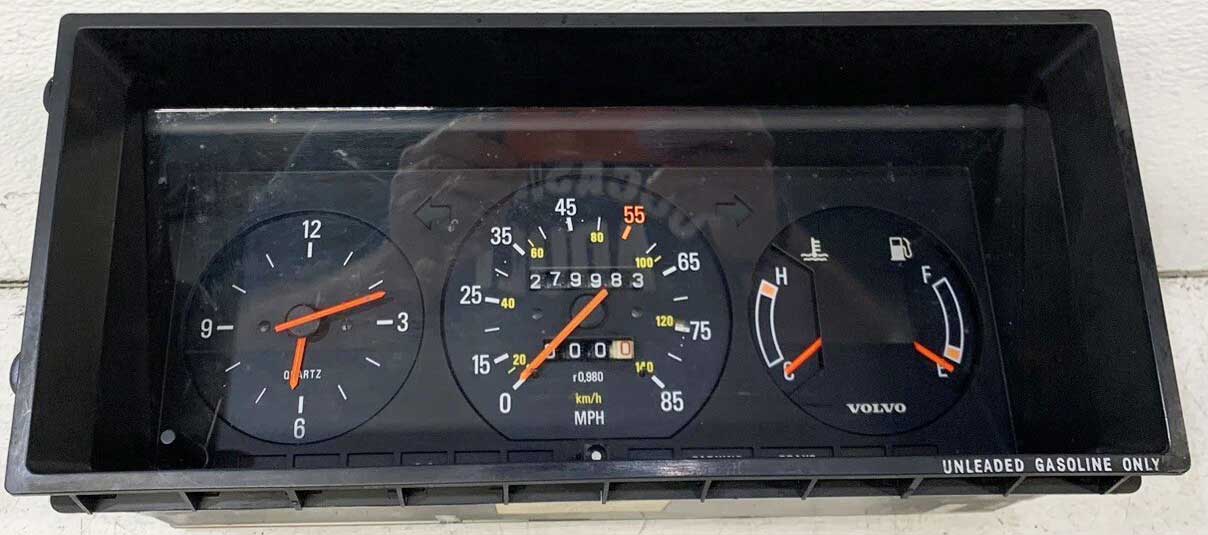

1983 244 non-turbo, 200 km/h (Canada), clock


1984 242 Turbo, 120 mph, tach


1984 242 Turbo, 200 km/h (Canada), tachometer


1985 244 non-turbo, 120 mph, tach


1985 245 non-turbo, 120 mph, clock, no 'H' 'C' ;F' 'E'

1986 244, 120, clock, no 'H' 'C' ;F' 'E'

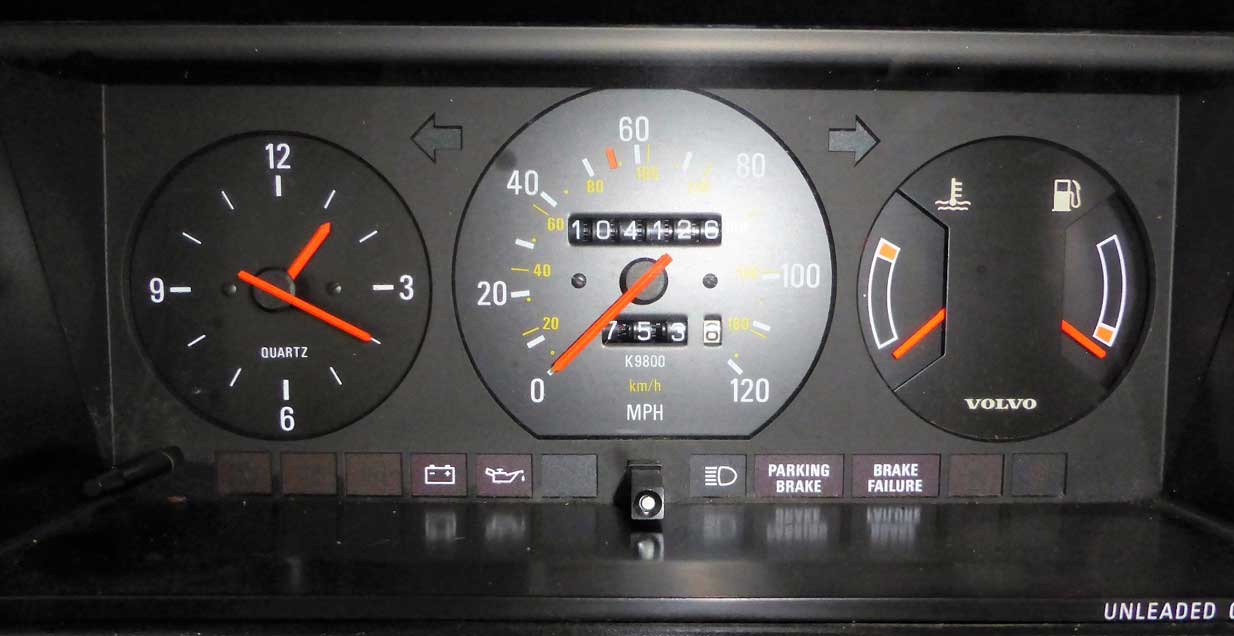

1988 245, 120 mph, clock


1989 244, 200 km/h, clock

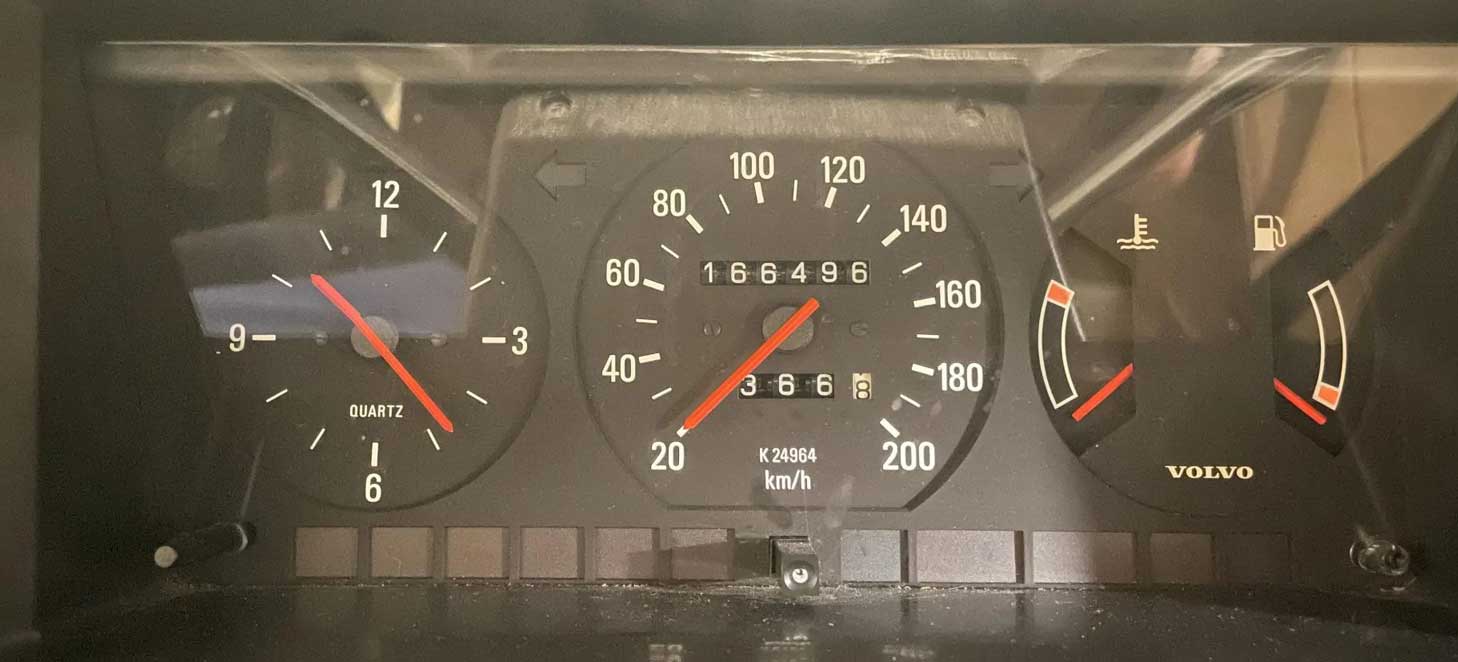

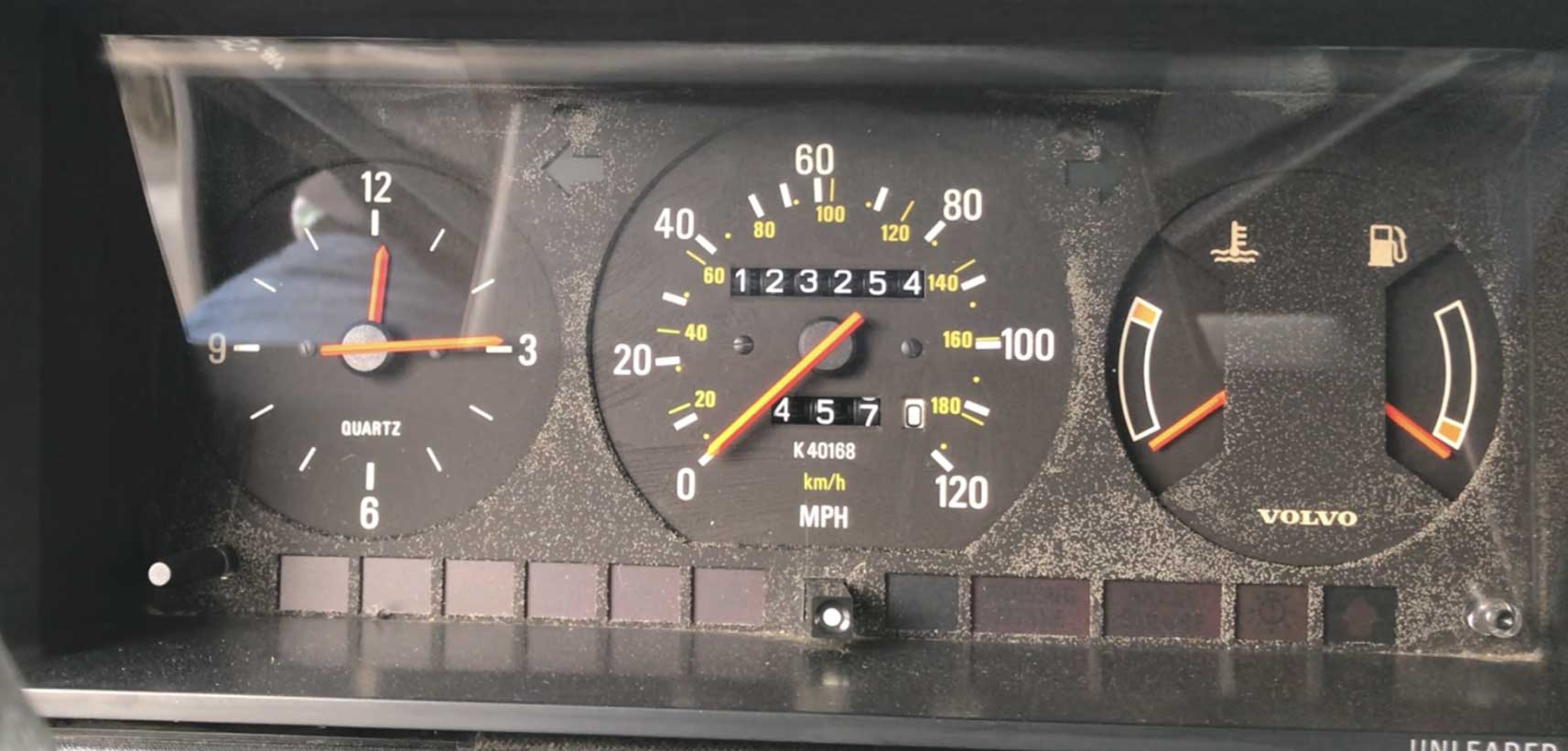

1992 245, 120 mph, tachometer


1993 245, 120, clock





OVERLAY FACE SETS
The overlay sets below are designed to closely replicate the original faces and may be used for restoration of faded faces. I have sets for any 240 from 1981-1993.

  STYLE A-1: ORIGINAL STYLE BLACK SET. This set below for 1981-85 240, 120 MPH Speedometer with Tach, and with 'H C F E' (Hot, Cold, Full, Empty).
The 'H C F E' may be deleted with no extra charge.
  This Style A-1 1981-85 120 mph set with no changes will look like the below image.


STYLE A-2: ORIGINAL STYLE BLACK.  This set below for 1986-88 or 1989-93 240, 120 MPH Speedo with Tach and WITH  'H C F E' (Hot, Cold, Full, Empty).

  This Style A-2 1986-93 120 mph set with no changes will look like this below.

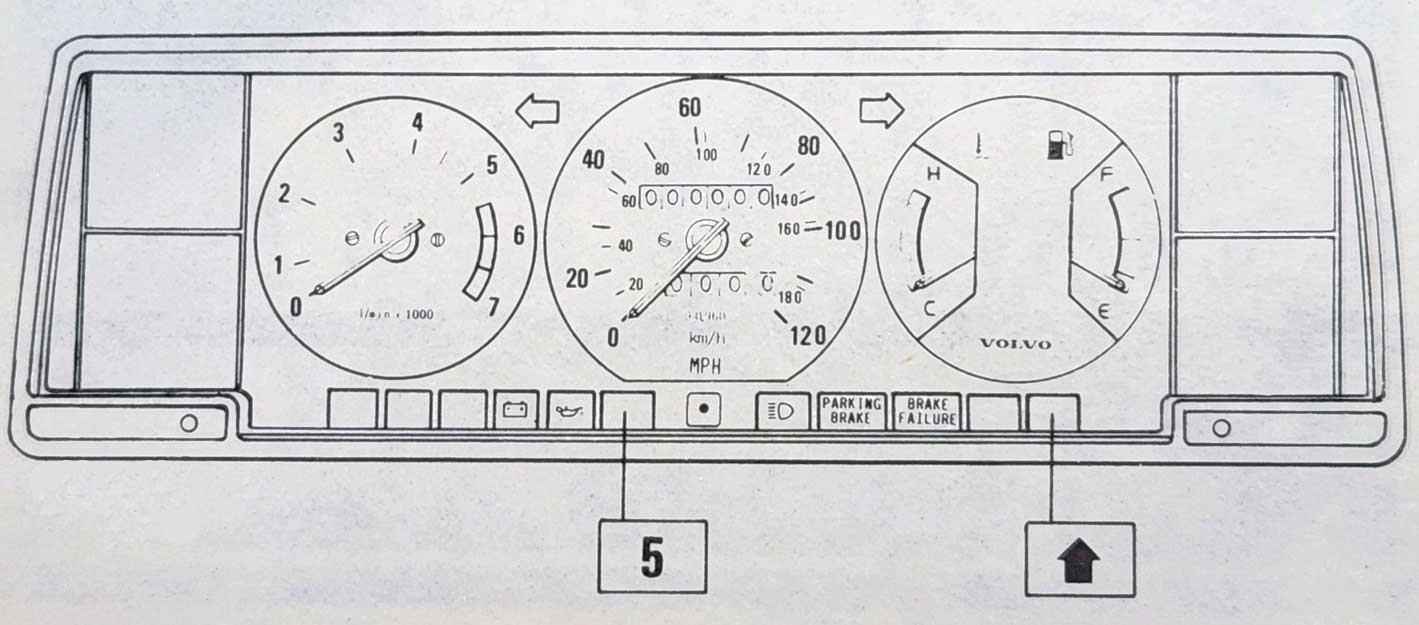

Some late-1985 and all 1986 and later, ORIGINAL 240 clusters were made without the 'H' 'C', 'F', 'E' in the Temp/Fuel gauges.
Most customers choose to keep the 'H' 'C' 'F' 'E'. You may select to DELETED them if desired. No extra cost.  Other changes are available below.

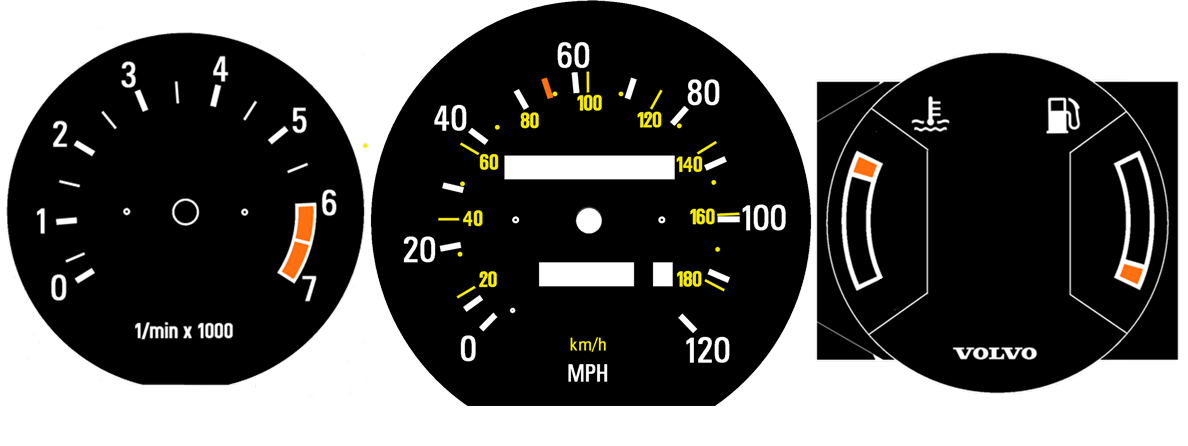

STYLE A-3: ORIGINAL STYLE BLACK.  This set below for 1986-88 or 1989-93 240, 120 MPH Speedo with Tach and WITHOUT  'H C F E' (Hot, Cold, Full, Empty).

This Style A-3 1986-93 120 mph set with no changes will look like this below.



SPEEDO OPTIONS (no extra charge)

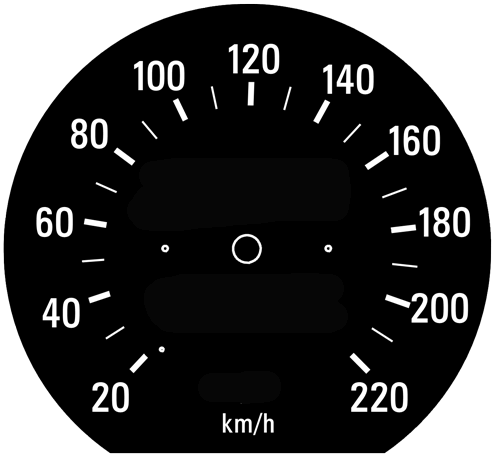

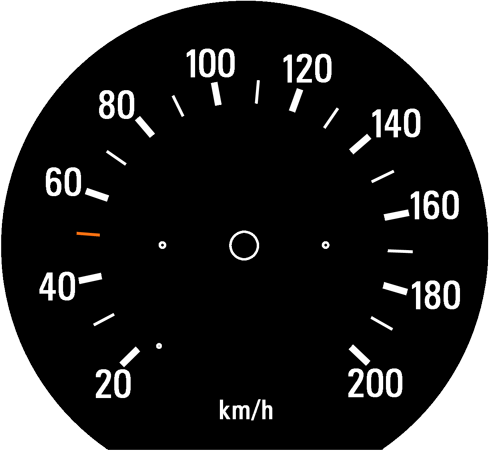

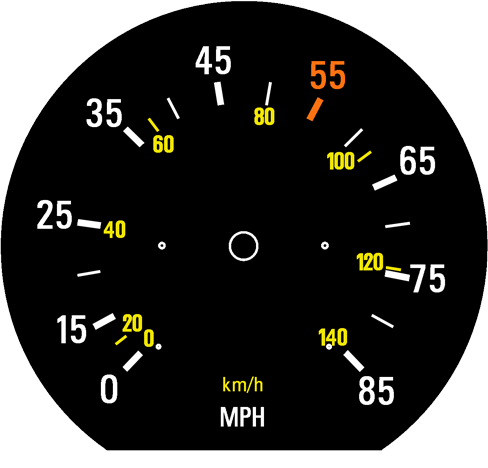

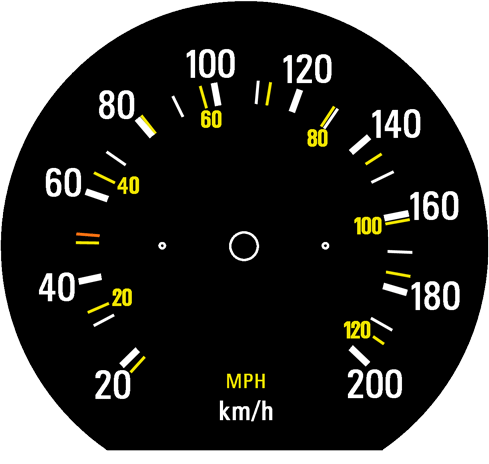

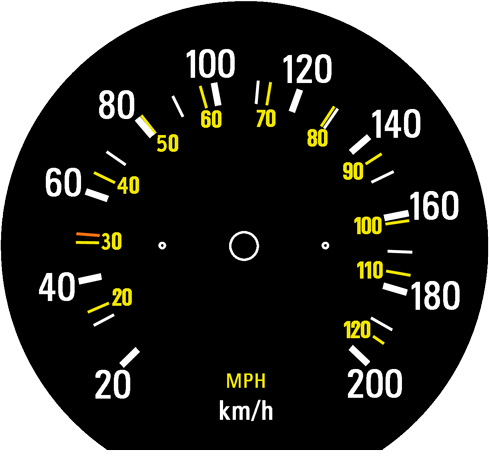

Optional 200 km/h, 220 km/h or 85 MPH speedo is available for no extra charge.



If you would like to include the Speedometer Revolution Number Code.

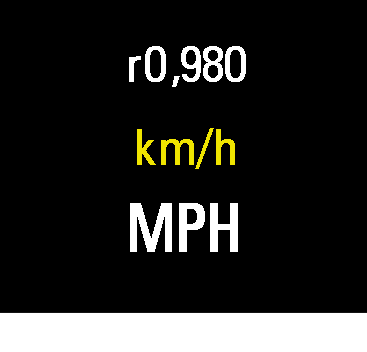

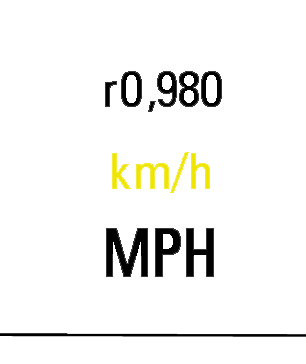

Early speedos had codes such as r0,960 or r0,980 for MPH or r0,585 or r0,605 for km/h.

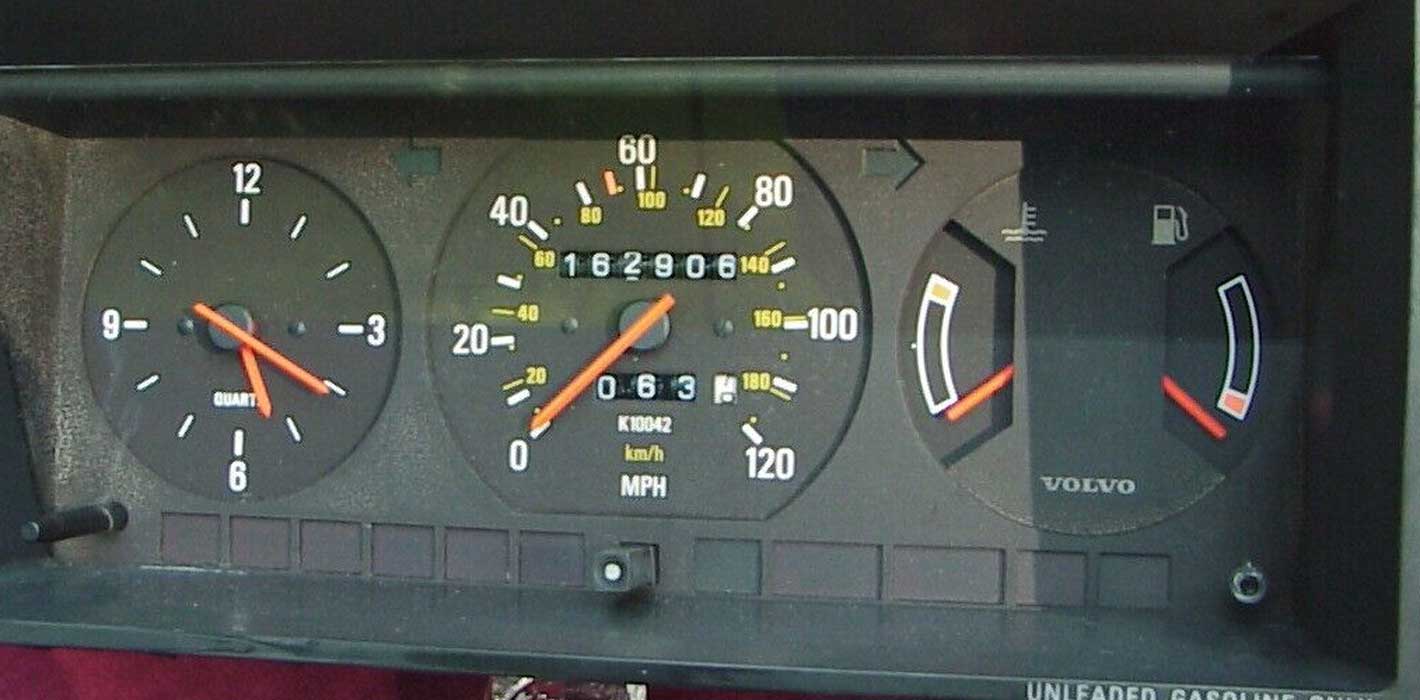

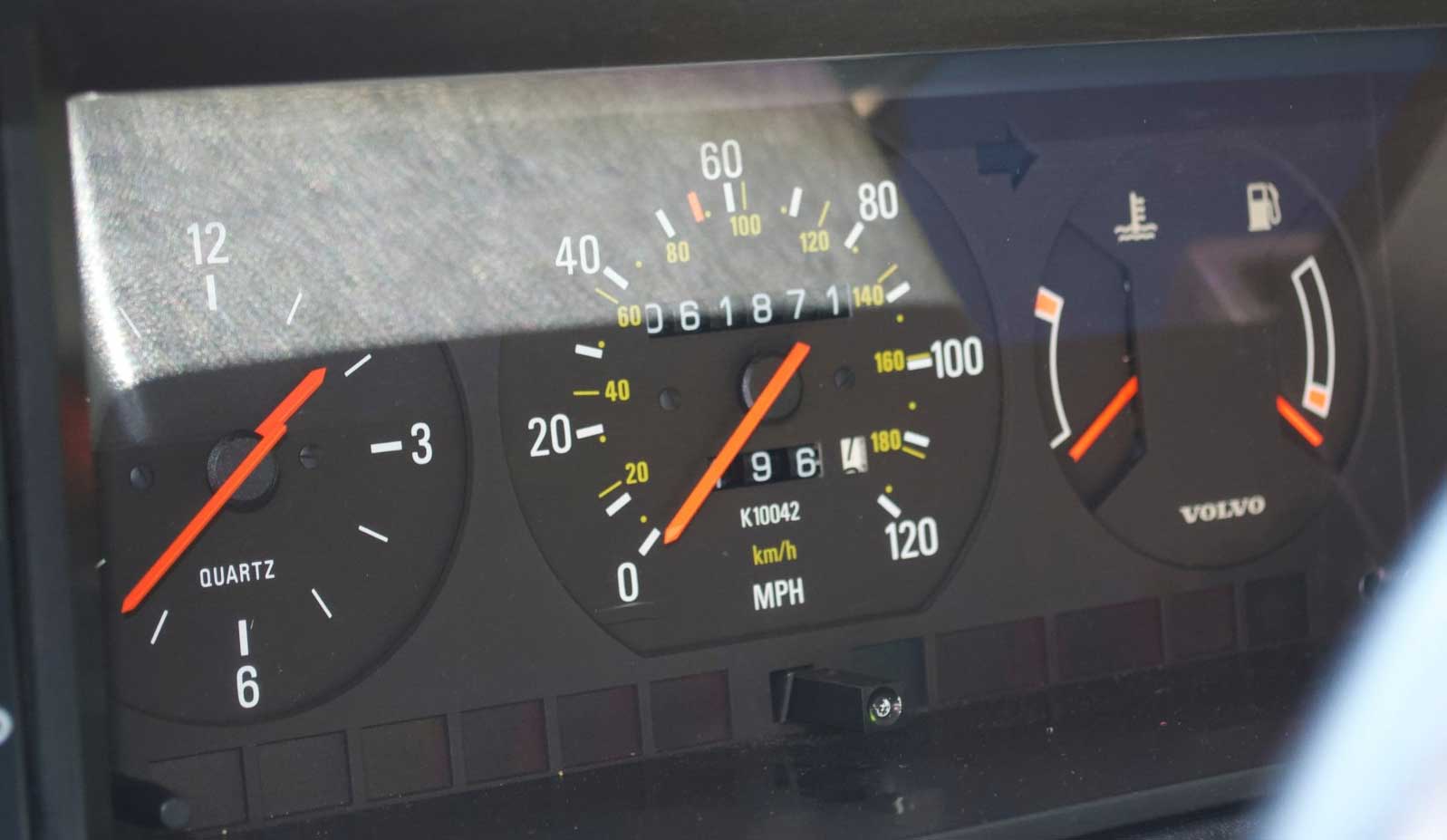

Later speedos had K9800, K10042, K39200 or K40168 for MPH or K6241 for km/h.

You may add it to your order with no extra cost. Please mention it the "order details box" at the bottom of the page when making your order.

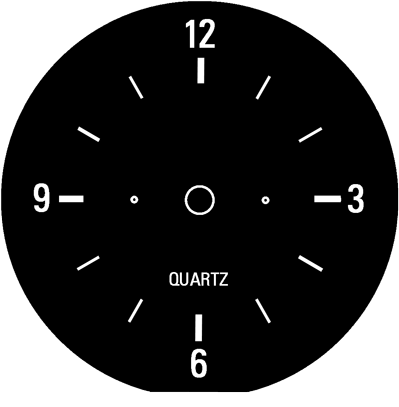

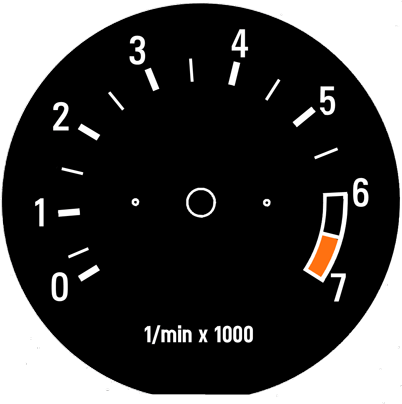

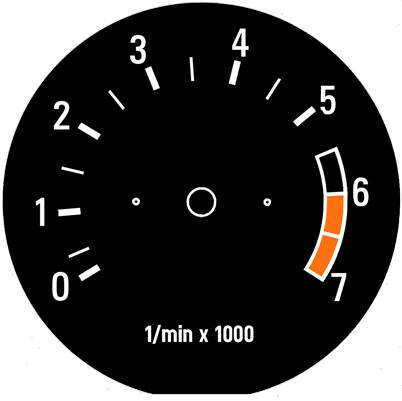

AVAILABLE OPTION: You may change to 5500 rpm or 6500 tachometer or Clock. No extra charge.

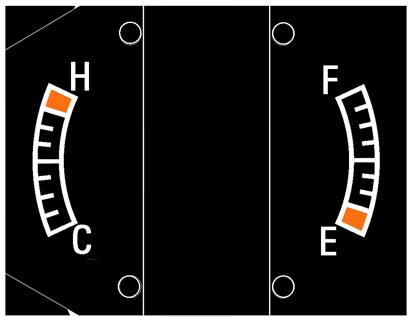

AVAILABLE CUSTOM TEMP-FUEL OPTION (no extra cost):  Fuel/Temp Gradients from Style 3 Faces.

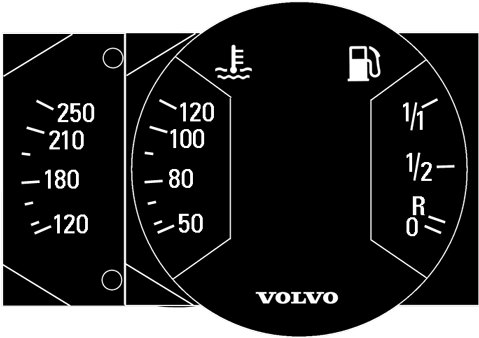

AVAILABLE CUSTOM OPTION (no extra cost):  Rallye Style Fuel/Temp Gradients.
You may choose this temperature face in Fahrenheit (to 250) or Celcius (to 120).


SPECIAL CUSTOM
STYLE B:

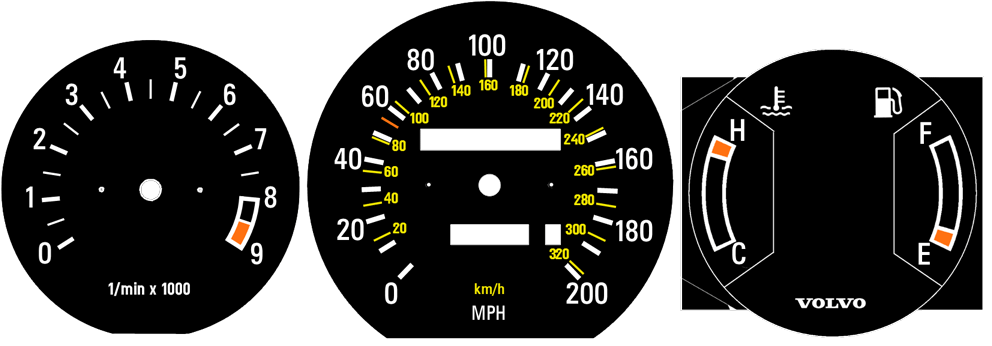

This 160 MPH speedometer face was specially created for a customer who installed a custom pulse generator for a custom speed calibration.





WHITE FACES EXAMPLES BELOW

STYLE C: ORIGINAL STYLE WHITE.  This set below for 1981-85 240, 85 MPH, 120 MPH or 200 km/h Speedo with Tach or Clock and with H C F E on temp and fuel gauges.

  This Style C 120 mph set with no changes will look like this below.

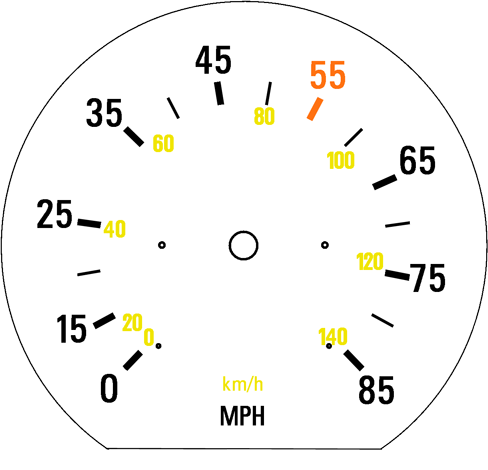

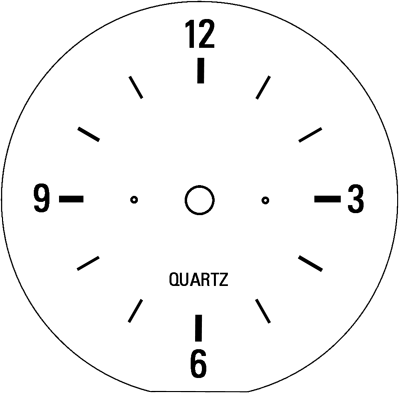

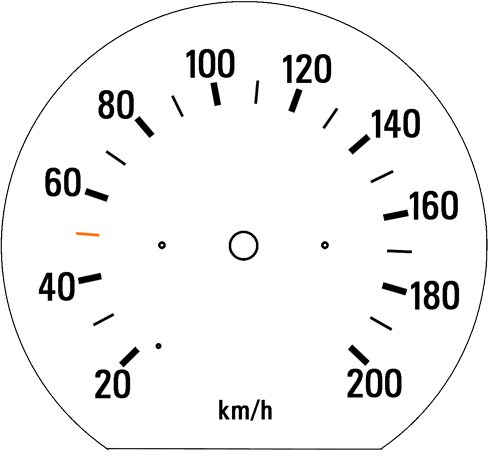

Optional 200 km/h or 85 MPH speedo and clock shown below. Available for any set.



If you would like to include the Speedometer Revolution Number Code.
Early speedos had codes such as r0,960 or r0,980 for MPH or r0,585 or r0,605 for km/h.
Later speedos had K9800, K10042, K39200 or K40168 for MPH or K6241 for km/h.

You may add it to your order with no extra cost. Please mention it the "order details box" at the bottom of the page when making your order.



STYLE D: ORIGINAL STYLE WHITE.  This set below for 1986-88 or 1898-93 240, 120 MPH or 200 kmh Speedo with Tach or Clock and without H C F E on the temp and fuel gauges.
You may add the H C F E if desired.  Other changes available if desired.

  This Style D 120 mph set with no changes will look like this below.





VDO versus YAZAKI Instrument Cluster
A very large majority of 240 instrument clusters were made for Volvo by VDO, but there were a few made by Yazaki.  So far, I have only heard of the Yazaki cluster appearing in a few European 240s.  If you have a Yazaki cluster, the standard face overlays won't fit, but I can make overlays that will.
The photo on the left is a Yazaki  speedometer face.  Note the lower odometer windows are separated.  This is unique to the Yazaki cluster.  It isn't the only difference, but it will help identify your cluster without disassembling it first.
So if you have a Yazaki cluster, contact me before ordering faces.


CLICK HERE FOR ON-LINE INSTRUCTIONS
Full-color step-by-step instructions for disassembling your gauges and installing these faces.

Adhesion Promoter is recommended to improve the installation of gauge face overlays. It is not needed in all situations, however if your car may be subjected to high interior temperatures frequently (parked outside) or many times over the years, the adhesive on the backs of overlays can soften and allow the edges to lift. Applying a little of this before installation on the faceplate edges will greatly improve adhesion. For convenience, a cotton swab is included. This isn't some mythical snake-oil. It has been tested and works great.

Applying this stuff is easy. Dip the cotton swab in the liquid and smear the edges of the face plates where the overlays will be. It dries in seconds.  CAUTION: Using this stuff makes things stick very well, so be careful when placing the overlay down. It will be harder to lift and re-position.




Order Quantity: Option:

To Check Out or View Cart, click below button.


All faces have a Matte/Non-Glare Laminated UV Poly Film over the front to protect the finish.




PRICES
  All face sets priced as follows:
$36.00 USD each

Shopping Cart Order Panel:
For 240 Gauge Face Set ORIGINAL Style
Enter total quantity of Gauge Face Sets. Multiple face sets may be entered.
Then list item numbers or other descriptions or options in text box.


Order Quantity: Type:



Tachometer or Clock?:
Other order details, options, etc:
After clicking 'Add to Cart' above, please then choose shipping below...


USA Shipping Options for Gauge Faces

             For USA Shipping (choose one of these options):

Shipping only needs to be added ONCE. Shipping cost is the same for one or multiple items.



International Shipping Options for Gauge Faces


For INTERNATIONAL Shipping (or choose one of these):


Click HERE if you're interested in learning about the new PRE-PAID Duty program for CANADA Shipping.
Shipping only needs to be added ONCE. Shipping cost is the same for one or multiple items.
