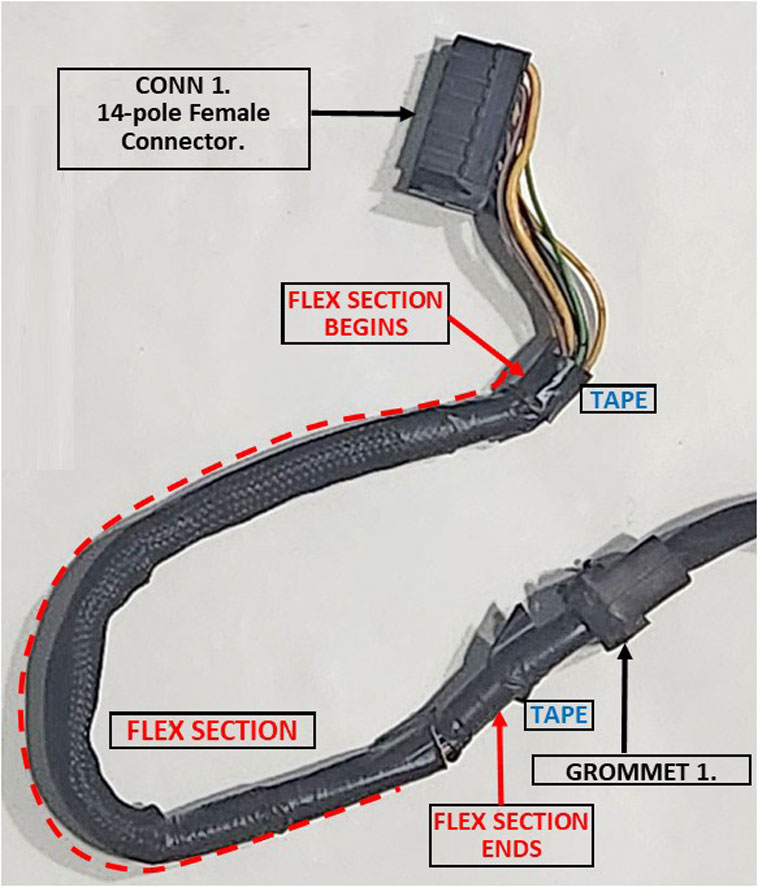

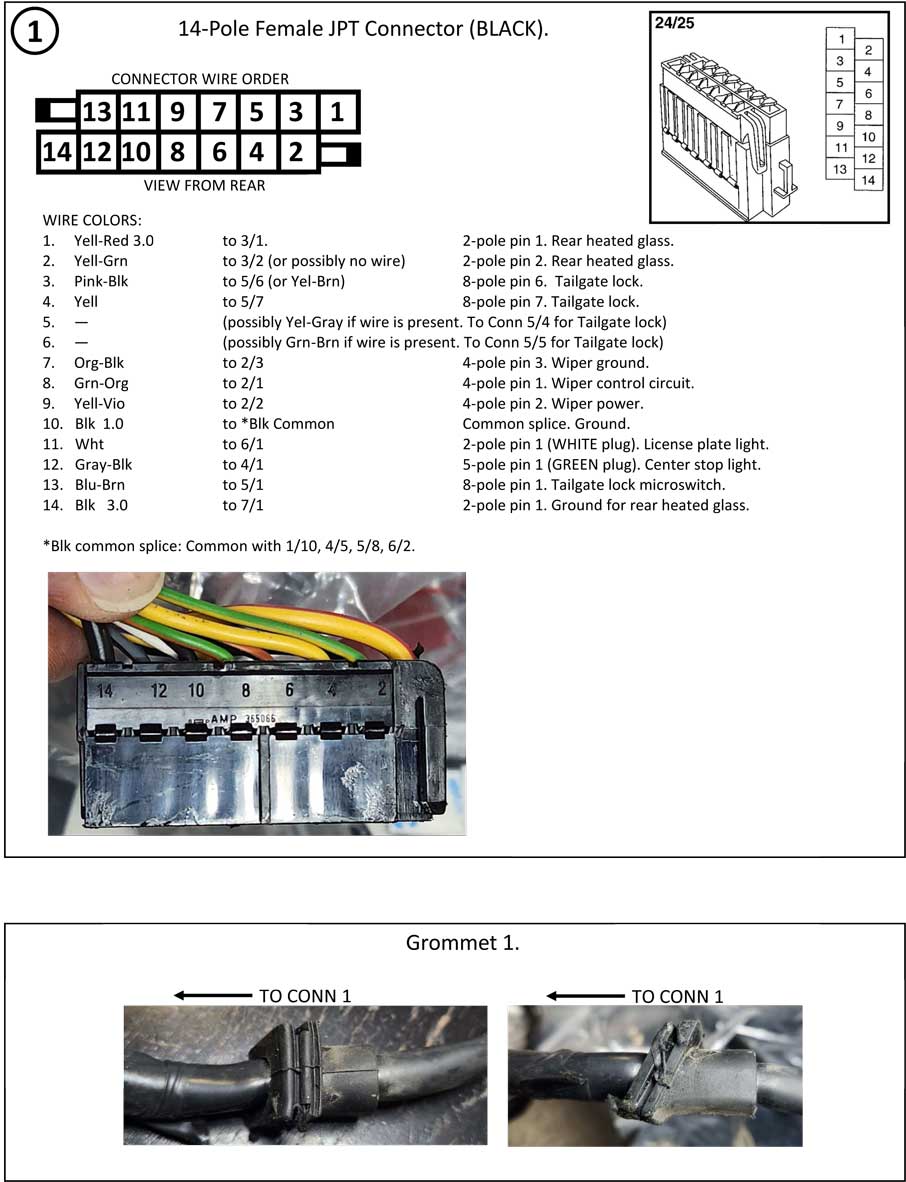

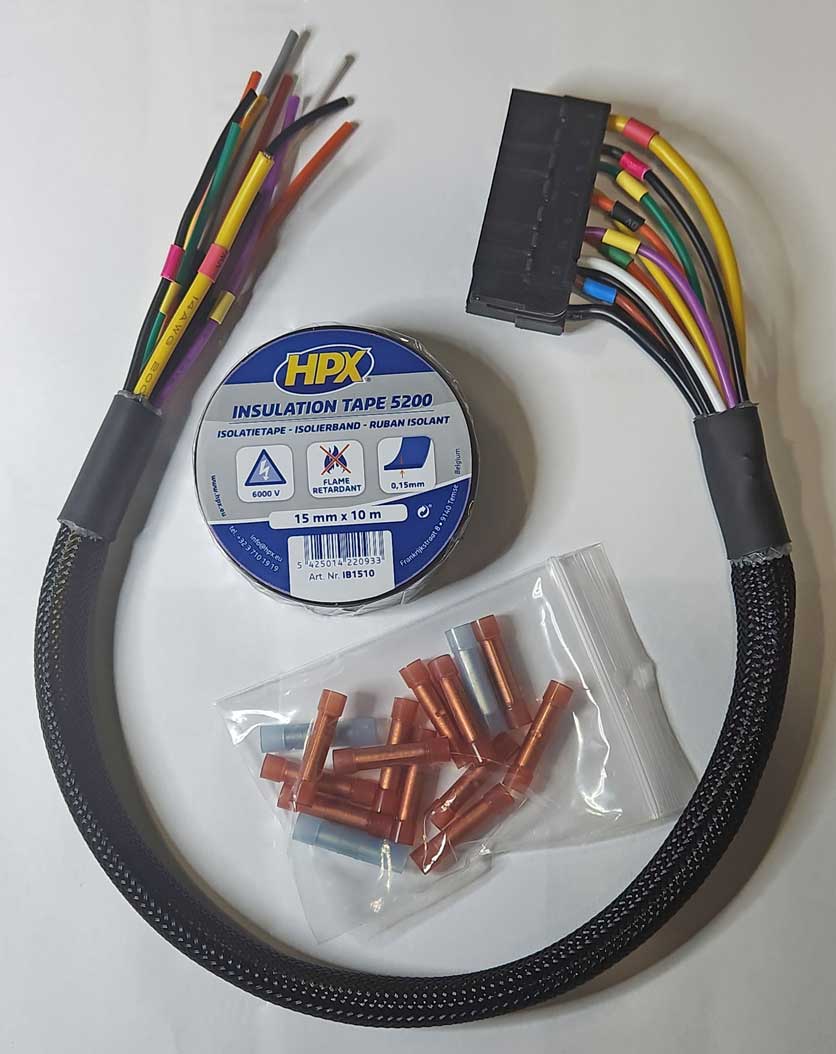

850 Series Click to find your engine harness: 850 Battery Cable only (POSITIVE) 1994-95 850 T5 Turbo (5 cyl) 9162458 with manual trans 1996 850 Turbo  (5 cyl)  9442145 with manual trans 1996 850 Turbo  (5 cyl)  9442145 with manual trans (Custom COP, VVT) 1996 850 Turbo  (5 cyl)  9442144 with auto trans 1997 850 Turbo  (5 cyl)  9441413 with manual trans 1997 850 Turbo  (5 cyl)  9441414 with auto trans 850 or V70 Tailgate Repair

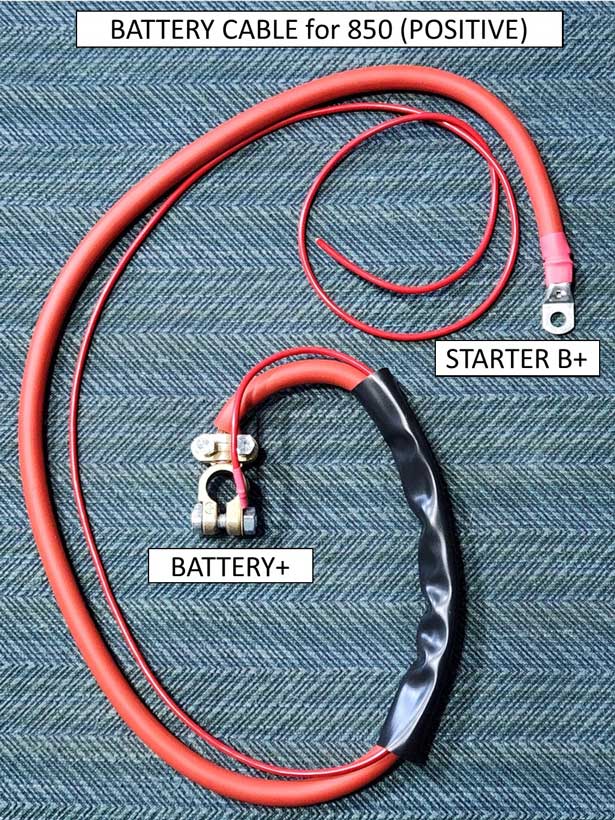

850 For 850 turbo or non-turbo. POSITIVE BATTERY CABLE ONE IN STOCK If this item becomes out of stock, you may still order. There will be a delay of a few weeks. ORDER HERE Order Quantity: 850 Positive Battery Cable $55.00 Select Shipping Option: USA Priority Mail $10.00 with Tracking, Insurance. NO SHIPPING ADDED or shipping to be added separately. USA Priority+SIGNATURE Tracking $13.00 (FASTER) with Tracking, Insurance. USA Express Mail $30.00 (FASTEST)with Tracking, Insurance. CANADA First Class Mail $18.00 with Tracking, Insurance. CANADA Priority Mail $29.00 (FASTER) with Tracking, Insurance. All INTERNATIONAL First Class $25.00 with Tracking, Insurance. All INTERNATIONAL Priority $49.00 (FASTER) with Tracking, Insurance. View Cart or Check Out.

850 T5 Turbo PN 9162458 1994-95 850 Turbo 5 cylinder engine. Manual Transmission. Single Oxygen Sensor. No EGR. NOTE about Oxygen Sensors: This one is a SINGLE Oxygen Sensor Version. Many U.S. cars came with DUAL Oxygen Sensors. See next harness below for DUAL Sensors. This harness comes WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used or you may still be able to order it from Volvo: PN 9456460. Order Quantity: Harness 9162458 850 T5 Turbo $460.00 Select Shipping Option: USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured   Separate Shipping for Harness Use ONLY if shipping is being added separately. Select Shipping and "Add to Cart" Separate USA Shipping: SHIPPING OPTION NOT SELECTED USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured View Cart or Check Out.

NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Harness shown below with large plastic CONDUIT CHANNEL installed. PN 9456460.

PN 9162458 NEW Replacement MAIN ENGINE WIRE HARNESS for Volvo 850. 1994-95 850 T5 Turbo, 5 cylinder engine, manual transmission. NOTE: This harness will come WITHOUT the large plastic channel/conduit that you see in the photo.  You may reuse your old channel.  It disassembles/splits in half so the harness can be inserted into it.  If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460. The 1994-95 main engine harness serves two 2-pole knock sensors found on the engine block as shown below (knock sensors are not included with a harness).  NOTE ABOUT IMPROVED HARNESS DESIGN:  The original Volvo 850 harness used this unsightly plastic split tubing. Our new harnesses have the option of superior vinyl harness covering.  Please email if you have questions.

850 T5 Turbo PN 9162458-2 (using this PN until the correct one is found) 1994-95 850 Turbo 5 cylinder engine. Manual Transmission, DUAL Oxygen Sensors, EGR optional. NOTE about Oxygen Sensors: This is a DUAL Oxygen Sensor Version. A single sensor version can be found above. This harness comes WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used. Order Quantity: Harness 9162458-2 850 T5 $460.00 Select Shipping Option: USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured   Separate Shipping for Harness Use ONLY if shipping is being added separately. Select Shipping and "Add to Cart" Separate USA Shipping: SHIPPING OPTION NOT SELECTED USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured View Cart or Check Out.

NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Harness shown below with large plastic CONDUIT CHANNEL installed. PN 9456460.

PN 9162458-2 (dual Oxygen Sensors) NEW Replacement MAIN ENGINE WIRE HARNESS for Volvo 850. 1994-95 850 T5 Turbo, 5 cylinder engine, manual transmission. NOTE: This harness will come WITHOUT the large plastic channel/conduit that you see in the photo.  You may reuse your old channel.  It disassembles/splits in half so the harness can be inserted into it.  If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460. The 1994-95 main engine harness also serves two 2-pole knock sensors found on the engine block as shown below (knock sensors are not included with a harness).

---

850 R Turbo PN 9442145 1996 850 R Turbo 5 cylinder B5234T5 engine. Manual Transmission, Single Oxygen Sensor, no EGR. NOTE about Oxygen Sensors: This one is a SINGLE Oxygen Sensor Version. Many U.S. cars came with DUAL Oxygen Sensors. See next harness below for DUAL Sensors. This harness comes WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used. Order Quantity: Harness 96 850T 9442145 $460.00 Select Shipping Option: USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured   Separate Shipping for Harness Use ONLY if shipping is being added separately. Select Shipping and "Add to Cart" Separate USA Shipping: SHIPPING OPTION NOT SELECTED USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured View Cart or Check Out.

NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Harness shown below with large plastic conduit channel installed. PN 9456460.

PN 9442145 NEW Replacement MAIN ENGINE WIRE HARNESS for Volvo 850. 1996 850 R Turbo  B5234T5 with 5 cylinder engine, M56 manual transmission. Fuel Injection System: Motronic 4.3. NOTE: This harness will come WITHOUT the large plastic channel/conduit that you see in the photo.  You may reuse your old channel.  It disassembles/splits in half so the harness can be inserted into it.  If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460. The 1996 main engine harness serves two 2-pole knock sensors found on the engine block as shown below (knock sensors are not included with harness).  NOTE ABOUT IMPROVED HARNESS DESIGN:  The original Volvo 850 harness used this unsightly plastic split tubing. Our new harnesses have the option of superior vinyl harness covering.  Please email if you have questions. bos220e

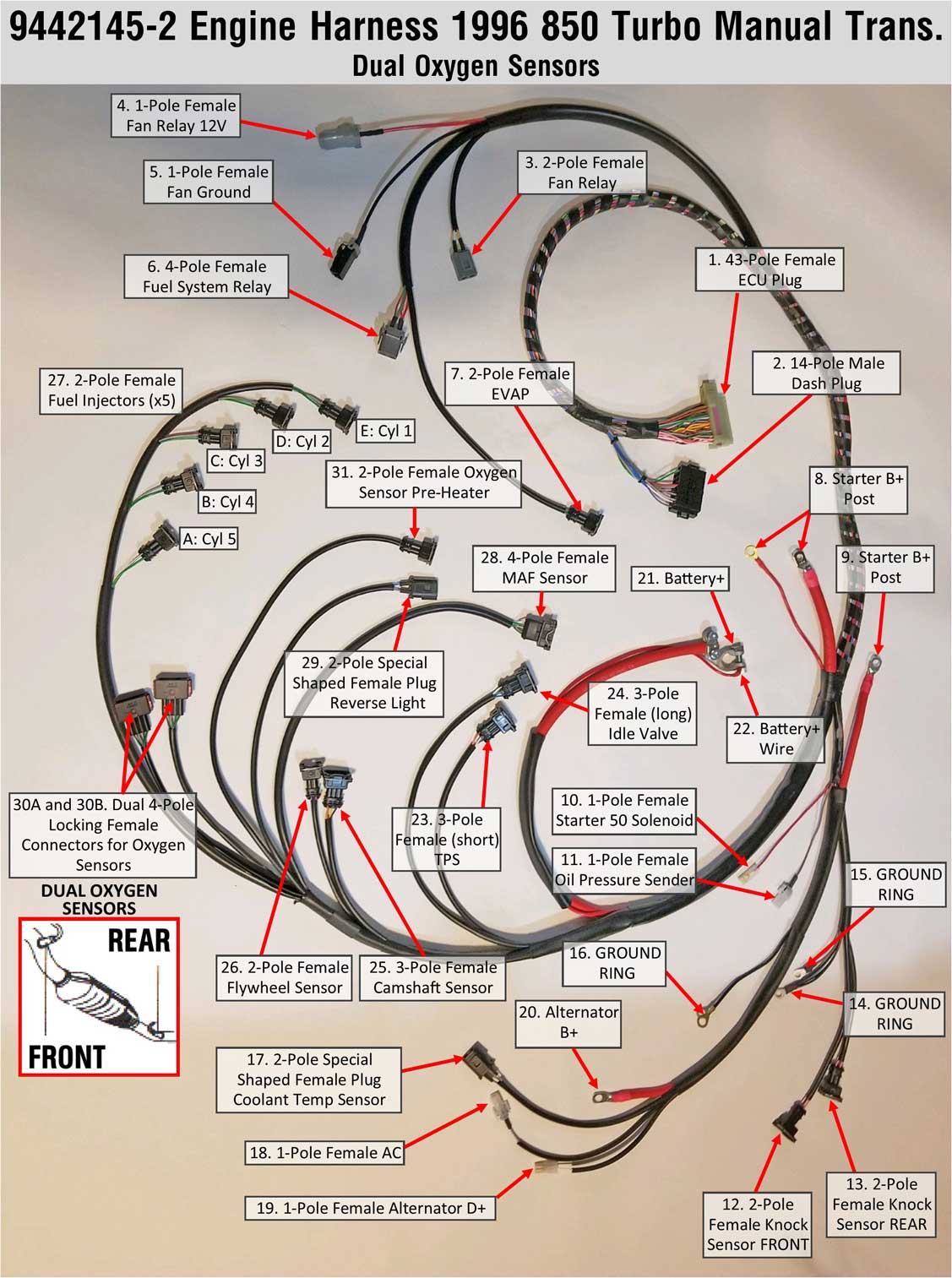

850 R Turbo PN 9442145-2 (using this PN until the correct one is found) 1996 850 R Turbo 5 cylinder B5234T5 engine. MANUAL TRANSMISSION, DUAL Oxygen Sensors, no EGR. NOTE about Oxygen Sensors: This is a DUAL Oxygen Sensor Version. A single sensor version can be found above. This harness comes WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used. Order Quantity: Harness 96 850T 9442145-2 $460.00 Select Shipping Option: USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured   Separate Shipping for Harness Use ONLY if shipping is being added separately. Select Shipping and "Add to Cart" Separate USA Shipping: SHIPPING OPTION NOT SELECTED USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured View Cart or Check Out.

NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Harness shown below with large plastic conduit channel installed. PN 9456460.

PN 9442145-2 NEW Replacement MAIN ENGINE WIRE HARNESS for Volvo 850. 1996 850 R Turbo  B5234T5 with 5 cylinder engine, Dual Oxygen Sensors, M56 manual transmission. NOTE: This harness will come WITHOUT the large plastic channel/conduit that you see in the photo.  You may reuse your old channel.  It disassembles/splits in half so the harness can be inserted into it.  If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460. The 1996 main engine harness serves two 2-pole knock sensors found on the engine block as shown below (knock sensors are not included with harness).  NOTE ABOUT IMPROVED HARNESS DESIGN:  The original Volvo 850 harness used this unsightly plastic split tubing. Our new harnesses have the option of superior vinyl harness covering.  Please email if you have questions.

---

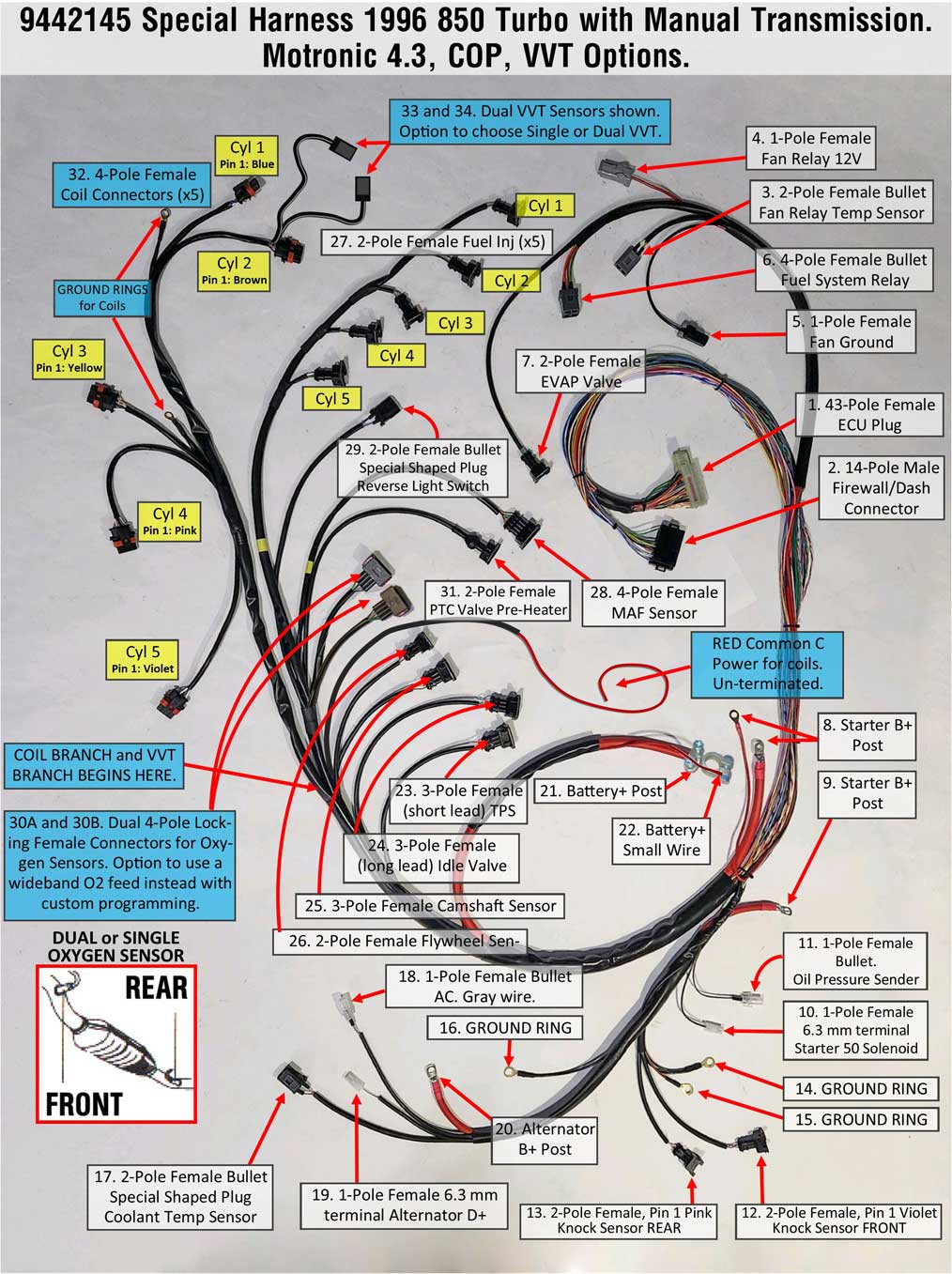

850 R Turbo PN 9442145-COP Custom 1996 850 R Turbo 5 cylinder. Manual Transmission. This is a special CUSTOM engine harness designed for a customer installing a later RN engine, which uses Coil-on-Plug and VVT sensors. Single VVT or Dual VVT is possible.  Feel free to contact me for more details about the ECU connections offered for these options. This harness comes WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used. Order Quantity: 91442145-COP Custom 850 T5 $620.00 Select Shipping Option: USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured   Separate Shipping for Harness Use ONLY if shipping is being added separately. Select Shipping and "Add to Cart" Separate USA Shipping: SHIPPING OPTION NOT SELECTED USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured View Cart or Check Out.

NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.   Harness shown below with large plastic conduit channel installed. PN 9456460, not included.

---

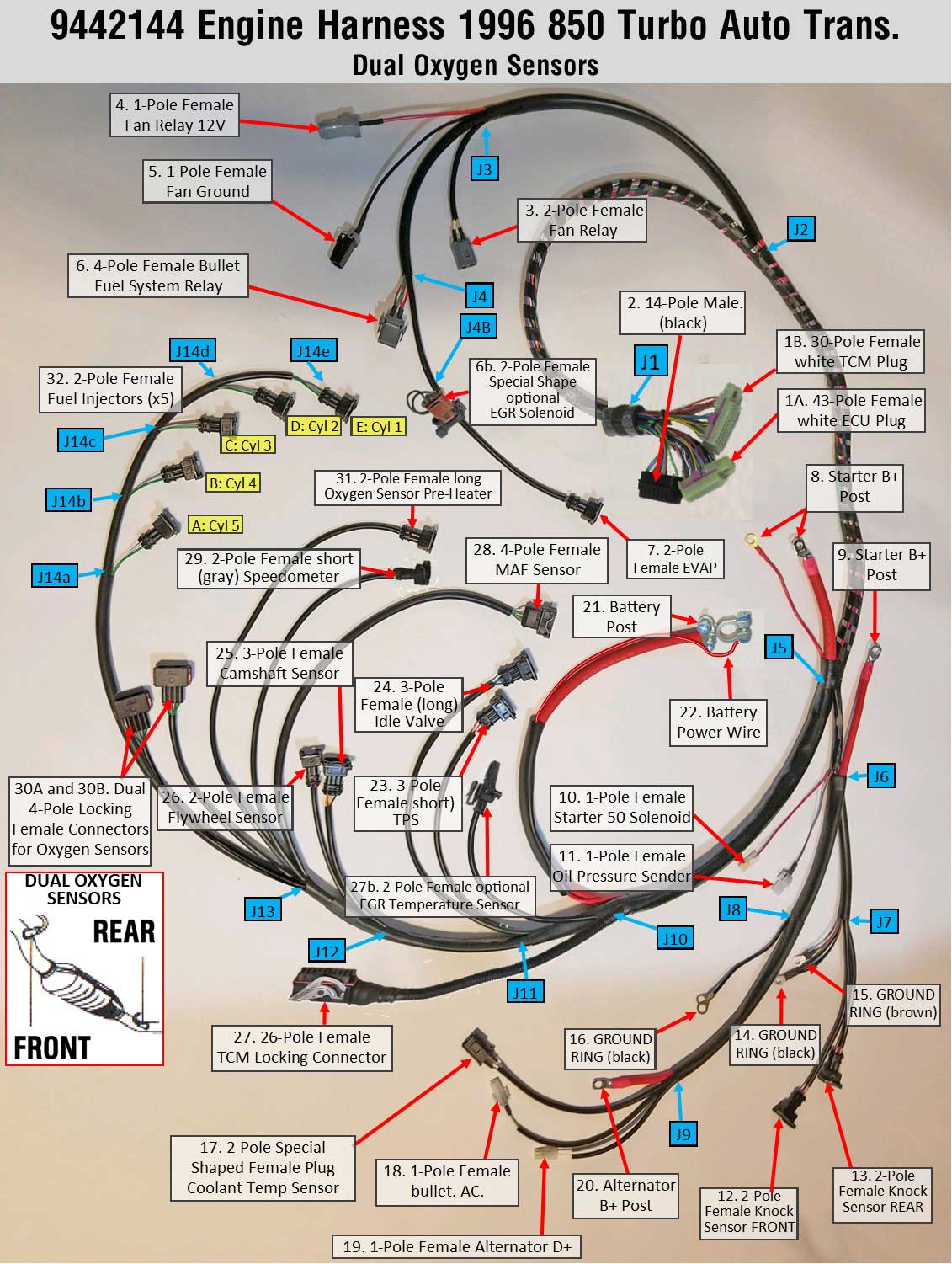

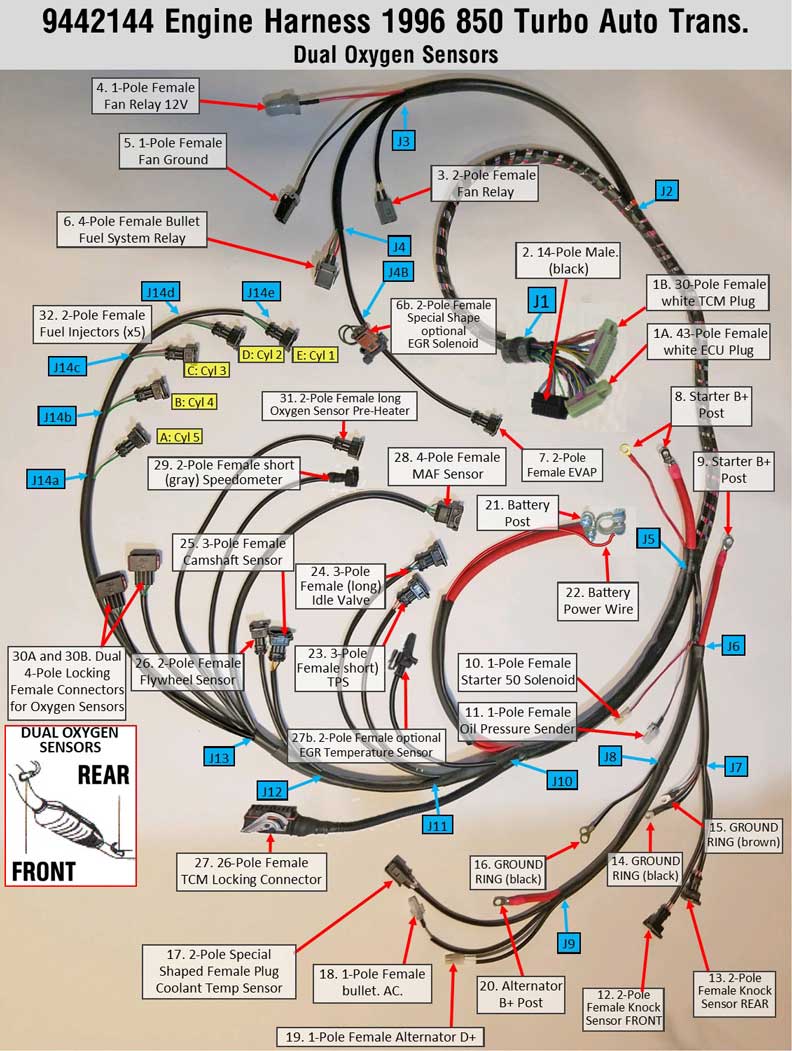

850 R Turbo 1996 850 R Turbo 5 cylinder B5234T5 engine with AUTOMATIC transmission. PN 9442144 AUTOMATIC transmission (using Volvo TCM connector). DUAL Oxygen Sensors, EGR Optional. This harness is available WITHOUT the large plastic CONDUIT CHANNELS found under the hood.  Your old conduits may be reused and installed on this new harness. Also WITHOUT the TCM connector mentioned below, which you can re-use the old one. And WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used. Order Quantity: Harness 96 850T 9442144 auto $670.00 Select Shipping Option: USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured   Separate Shipping for Harness Use ONLY if shipping is being added separately. Select Shipping and "Add to Cart" Separate USA Shipping: SHIPPING OPTION NOT SELECTED USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured View Cart or Check Out.

NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Harness shown above shown without large plastic conduit channel installed. PN 9456460, not included.

IMPORTANT INFO for this 850 HARNESS for 1996 Auto Transmission 850:   This 26-pole connector (Connector #27) for the automatic transmission is no longer available (NLA).  It's possible to re-use a USED connector from your original harness. I have full instructions for this.  PN 9442144 NEW Replacement MAIN ENGINE WIRE HARNESS for Volvo 850. 1996 850 R Turbo  B5234T5 5 cylinder engine, automatic transmission. Part Number 9442144. NOTE ABOUT IMPROVED HARNESS DESIGN:  The original Volvo 850 harness used this unsightly plastic split tubing. Our new harnesses have the option of superior vinyl harness covering.  Please email if you have questions.   bos220e

---

850 R Turbo 1997 850 R Turbo 5 cylinder B5234T5 engine. Manual Transmission, Single Oxygen Sensor, no EGR. PN 9441413 This harness comes WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used. Order Quantity: Harness 97 850T 9441413 $460.00 Select Shipping Option: USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured   Separate Shipping for Harness Use ONLY if shipping is being added separately. Select Shipping and "Add to Cart" Separate USA Shipping: SHIPPING OPTION NOT SELECTED USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured View Cart or Check Out.

NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Harness shown below with large plastic conduit channel installed. PN 9456460.

PN 9441413 NEW Replacement MAIN ENGINE WIRE HARNESS for Volvo 850. 1997 850 R Turbo  B5234T5 with 5 cylinder engine, M56 manual transmission. Fuel Injection System: Motronic 4.3. NOTE: This harness will come WITHOUT the large plastic channel/conduit that you see in the photo.  You may reuse your old channel.  It disassembles/splits in half so the harness can be inserted into it.  If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460. The 1997 main engine harness serves dual knock sensors, which uses one 3-pole plug that is attached to the sensors as shown below (knock sensors are not included with harness). NOTE ABOUT IMPROVED HARNESS DESIGN:  The original Volvo 850 harness used this unsightly plastic split tubing. Our new harnesses have the option of superior vinyl harness covering.  Please email if you have questions. bos220e

---

850 R Turbo PN 9441414 1997 850 Turbo or R, 5 cylinder B5234T5 engine, Motronic 4.3 or 4.4, with  AUTOMATIC transmission (using Volvo TCM connector). DUAL Oxygen Sensors. This harness is available WITHOUT the large plastic CONDUIT CHANNELS found under the hood.  Your old conduits may be reused and installed on this new harness. Also WITHOUT the TCM connector mentioned below, which you can use the old one.   Order Quantity: Harness 97 850T 9441414 $670.00 Select Shipping Option: USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured   Separate Shipping for Harness Use ONLY if shipping is being added separately. Select Shipping and "Add to Cart" Separate USA Shipping: SHIPPING OPTION NOT SELECTED USA Priority Mail $20.00 With Tracking, Insured Shipping to be added separately $0.00 Priority Mail+SIG.Tracking $23.00 With SIGNATURE Tracking, Insured USA Express Mail $86.00 (FASTER) with Tracking, Insured CANADA Package $50.00 With Tracking, Insured CANADA Priority Mail Int'l $65.00 (FASTER) with Tracking, Insured INTERNATIONAL Package $55.00 With Tracking, Insured All INTERNATIONAL Priority Mail $92.00 (FASTER) with Tracking, Insured View Cart or Check Out.

NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.   Please email if you have questions. CONTACT

IMPORTANT INFO for this 850 HARNESS for 1997 Auto Transmission cars:   This 26-pole connector (Connector #19) for the automatic transmission is no longer available (NLA).  It's possible to re-use a USED connector from your original harness. I have full instructions for this.  PN 9441414 NEW Replacement MAIN ENGINE WIRE HARNESS for Volvo 850. 1997 850 Turbo or R  B5234T5 with 5 cylinder engine, automatic transmission. Fuel Injection System: Motronic 4.3, 4.4. This harness is available WITHOUT the large plastic conduit channels found under the hood.  Your old conduits may be reused and installed on this new harness. NOTE ABOUT IMPROVED HARNESS DESIGN WITH THIS HARNESS:  The original Volvo 850 harness used this unsightly plastic split tubing. The new design has the option of superior vinyl harness covering.  Please email if you have questions. bos220e

---

---

Additional Purchase or Shipping Payment  (This will allow you to add an additional charge to your Shopping Cart order) The below shipping buttons are for use with my Shopping Cart.  This can be used to add a shipping charge to any Shopping Cart order.  If the shipping charge options on an order page aren't quite the right amounts needed for your order, or if you just need to add an extra amount for an unusual order, this will work.  It may also be used if an extra payment needs to be added to an order that's already been closed.  Additional Purchase or Shipping please choose amount $0.00 $1.00 $2.00 $3.00 $4.00 $5.00 $6.00 $7.00 $8.00 $9.00 $10.00 $11.00 $12.00 $13.00 $14.00 $15.00 $16.00 $17.00 $18.00 $19.00 $20.00 $21.00 $22.00 $23.00 $24.00 $25.00 $26.00 $27.00 $28.00 $29.00 $30.00 $31.00 $32.00 $33.00 $34.00 $35.00 $36.00 $37.00 $38.00 $39.00 $40.00 $41.00 $42.00 $43.00 $44.00 $45.00 $46.00 $47.00 $48.00 $49.00 $50.00 $51.00 $52.00 $53.00 $54.00 $55.00 $56.00 $57.00 $58.00 $59.00 $60.00 $61.00 $62.00 $63.00 $64.00 $65.00 $66.00 $67.00 $68.00 $69.00 $70.00 $100.00 View Cart or Check Out:
