| I N T R O D U C T I O N VOLVO ENGINE HARNESS PART NUMBER COLLECTION BELOW, CLICK HERE My name is Dave. I've been a Volvo hobbyist since 1988 and I have owned a lot of Volvos over the years. It wasn't long before I discovered that wire insulation on certain Volvo engine wire harnesses began decomposing a number of years after these cars were sold. The WORST problems occurred in all 1980-1987 Volvos. I discovered that Volvo was well aware of the problems and they got busy selling and installing replacement harnesses in a lot of these cars. Soon I began finding these near new replacement harnesses in wrecked Volvos in local salvage yards. I began finding them so frequently that I began salvaging them and offering them to others who needed them. Over the years I estimate that I recycled well over a thousand used engine harnesses from wrecked 200 and 700 Volvos. As a result, I have a acquired many years of Volvo wire harness experience. I have compiled a LOT of what I have learned over the years into this Volvo Harness Page. Please take some time and read this information and you'll have a better understanding of what happened to your Volvo engine wire harness. Feel free to contact me if you have questions and I'll do my best to help. Thank you. Dave Barton CONTACT
|
|
The below list does not include every 240 and 740 harness part number ever made, but a vast majority of North American Volvo (and many European) engine harness part numbers are here. It's compiled from many years of "salvage yard research" and other info from numerous Volvo parts resources in the Volvo community. Each of the below part numbers is designated as a main engine wire harness, unless otherwise noted. Some are for ignition harnesses (if it's a separate part for that car). Many of Volvo's part numbers for the harnesses shown below have changed over the years (or have been "superceded") for newer numbers. I have included those changes whenever I find that information. Part numbers below highlighted in RED are original harnesses or old original numbers. In most cases, that will be the harness RED PN found in that car when new. Bold-Underlined part numbers are the latest part number known for that harness. Where can you find Part Numbers on engine harnesses? CLICK HERE |
|
BELOW NUMBERS ARE TYPICALLY ASSIGNED TO
NORTH AMERICAN VOLVOS
(unless marked otherwise) 240 4-cylinder 240 75 B20F K-Jet Engine Harness 1215185 (Uncertain about models with D-Jet). 240 75 B21E K-Jet Engine Harness 1215186 (Europe, possibly Canada and others). 240 75 B20A Carb Engine Harness (1215189 old), newer PN 1234759 (Europe, possibly Canada and others). 240 75 B21A Carb Engine Harness 1215190 (Europe, possibly Canada and others). 240 76-77 B19E, B21E, B21F K-Jet Engine Harness 1234614 240 76 B19A, B21A Carb Engine Harness 1234613 (Europe, possibly Canada and others). 240 76 B20A Carb Engine Harness 1234612 (Europe, possibly Canada and others). 240 77 B19A, B21A Carb Engine Harness (1234849 old), new PN 1235299 (Europe, possibly Canada and others). 240 78 B19A, B21A Carb Engine Harness 1235344 (Europe, possibly Canada and others). 240 78 B19E, B21E, K-Jet Engine Harness (EUROPE), (1235345 old), new PN 9139228 (requires adapter for 8-pole firewall connector to use 9139228 on 1979 or earlier car). 240 79 B19E, B21E and B23E, K-Jet Engine Harness (EUROPE), (1235345 old), new PN 9139228 (requires adapter for 8-pole firewall connector to use 9139228 on 1979 or earlier car). 240 79 B21F K-Jet Engine Harness (1235345 old), new PN 9139228 (79 or earlier requires adapter for 8-pole firewall connector to use 9139228). 240 79 B19A, B21A Carb Engine Harness (1307069 old), newer PN 9139229. Europe, Canada. 240 80 B19E, B21E, B21F and B23E, K-Jet Engine Harness, (1235345 old), new PN 9139228. (Europe, Canada and others). 240 80 B21F Ignition Harness, breakerless ignition PN 1234973. 240 80 B17A, B19A, B21A Carburetor Engine Harness (3515459 old), newer PN 9139229. (Europe, Canada and others). 240 80 B17A, B19A, B21A Carburetor Engine Harness 1259453. Canadian B71A, B19A, B21A. 240 80 B23E (Canada) K-Jet Engine Harness (1323995 old), newest replacement PN 9139228. 240 81 B23E (Canada) (+GLT) K-Jet Engine Harness (1323995 old), newest replacement PN 9139228. 240 80-81 B21F USA K-Jet with 2-wire Auxiliary Air Valve Engine Harness (1259454, 1307598, 1323996, 1348368, 3515395 old), newest PN 9139228. 240 81-84 B17A, B19A, B21A, B23A Carburetor Engine Harness (1323997, 1348152 old), newest PN 3515392. Canadian market. 240 late-81 and 82 B21F K-Jet with 3-wire Idle Air Control Valve Engine Harness (1307577, 1307597, 1308890 old), new PN 3515381. 240 81-84 B19E, B21E and B23E, K-Jet Engine Harness, (1235345 old, 3515585 newer), new PN 9139228. (Europe, possibly Canada and others). 240 81-82 B21F Ignition Harness red distributor cap, square plug at distributor, 1307581. 240 82 B21F Ignition Harness with white distributor cap, round plug at distributor (1307061 or 1317561 old, 1332643 newer) newest PN 3515722. 240 82 B23E (Canada) (+GLT) K-Jet Engine Harness (1323995 old), newest replacement PN 9139228. 240 Turbo 81-85 B21FT K-Jet Engine Harness (1323994, 1348155 old), new PN 3515393. (USA all years) 240 Turbo B21FT Ignition Harness 1307582 (USA all years) 240 Turbo B21FT 1983-84 w/o intercooler (9139220, 3515337, 3515348) not an engine harness PN. These PNs are for the dash/firewall/fender harness which is NLA. 240 Turbo B21FT 1983-84 with intercooler (1343305) not an engine harness PN. This PN is for the dash/firewall/fender harness which is NLA. 240 Turbo 81-85 B21ET K-Jet Engine Harness (1323993, 1348154 old), new PN 3515394, Canada, Europe. 240 late-82, known as 1982.5, B21F LH-1.0 EFI Engine Harness (1308892 old), new PN 3515383. 240 82 B21F Ignition Harness with Chrysler ignition, usually white distributor cap, round plug (1307061 or 1317561 old, 1332643 newer) newest PN 3515722. 240 83 B23E (Canada) (+GLT) K-Jet Engine Harness (1323995 old), newest replacement PN 9139228. 240 83-84 B23F LH-2.0 Engine Harness (1323825, 1348296 or 1348297 old), new PN 3515397. 240 83-84 B23F LH-2.0 (1347576) not an engine harness PN, but it often fools people when they find this PN on a wire near the firewall. It's actually an unknown firewall harness that should be ignored (Placing this info here for those finding one). 240 83-84 B23F LH-2.0 (9139217, 1324497, 1324595, 3515342, 3515351, 3515303, 3515320) not an engine harness PN. These PNs are for the dash/firewall/fender harness which is NLA. 240 83 B23F Ignition Harness 83 with Chrysler ignition, usually white distributor cap, round plug (1307597 old) new PN 3515722. 240 83-84 B23F Ignition Harness 83-84 Chrysler ignition, usually red distributor cap, but sometimes white, square plug (1346259 old) new PN 3515723. 240 85-86 B230A Carb Engine Harness (1398139 old), new PN 3515727 (Europe, possibly Canada and others). 240 85-87 B200K Carb Engine Harness (1398139 old), new PN 3515727 (Europe, possibly Canada and others). 240 85-87 B230F LH-2.2 Engine Harness (1362296 old), new PN 3515364. 240 85-88 B230F LH-2.2 Engine Harness (1362794 old), new PN 1398719 (similar to 3515364), (AUSTRALIA, RHD) 240 85-88 B230F Ignition Harness Chrysler ignition, red distributor cap (1347847 old, 1363888 old, 1398401 old) newest PN 3515885. 240 85-91 B200E, B230E K-Jetronic Engine Harness (3515917 old), 3523908, (Europe, Australia, possibly other markets). 240 85-91 B200E, B230E K-Jet Engine Harness (3515917 old), (EUROPE) 3523908 240 87 B230K Carb Engine Harness 1362573 (Europe, possibly Canada and others). 240 88 B230F LH 2.2 Engine Harness 1398768. 240 88 B230K Carb Engine Harness (1398670 old) 9139225. 244 chassis -334099, 245 chassis -808999. (Europe, possibly Canada). 240 89-90 B230K Carb Engine Harness 1398996. 244 chassis 334100-, 245 chassis 809000-. (Europe, possibly Canada). 240 88-89 B200K Carb Engine Harness 3515727 (Europe, possibly Canada and others). 240 89-91 B200K Carb IGNITION Harness (1363461, 1307049 old), 3523567. (Europe, possibly Canada and others). 240 89 B230F LH 2.4 Engine Harness 1398995 (EGR unknown). 240 89 B230F LH 2.4 Engine Harness 3515052 (without EGR). 240 89 B230F LH 2.4 Engine Harness (1398920 old) newest PN 9139227 (with EGR). 240 90 B230K Carb Engine Harness 3515916. (Europe, possibly Canada and others). 240 90 B230F LH 2.4 Engine Harness (1398902 old, 3515918 newer), newest PN 9139227 (with EGR). 240 90 B230F LH 2.4 Engine Harness 3515919 (LH 2.4, without EGR). 240 90 B230F LH 3.1 Engine Harness 3523139 (LH 3.1, without EGR). 240 90-92 B200E, B230E LH-2.4 Engine Harness (EUROPE) 3515917 240 91 B230F LH 2.4 Engine Harness 3523898 (91 US model, LH 2.4, WITHOUT EGR) 240 91 B200F, B230F LH 2.4 Engine Harness 3523899 (with EGR) 240 91 B200F, B230F LH 2.4 Engine Harness 3544093 (EGR unknown). 240 91 B230F LH 3.1 Engine Harness 3523900 (91 US Federal with manual trans, LH 3.1, other info unknown). 240 91-92 B230E K-Jet Engine Harness (EUROPE) 3544667 240 92 B230F LH 2.4 Engine Harness 3544668 (92 US model with auto trans, WITHOUT EGR). 240 92 B230F LH 2.4 Engine Harness 3544669 (With EGR). 240 92 B230F LH 3.1 Engine Harness 3544670 (92 US Federal with manual trans, LH 3.1). 240 92 B200F, B230F LH 2.4 Engine Harness 3544674 (EGR unknown). 240 93 B230F LH ?? Engine Harness 9130071 (possibly without EGR, LH version not known). 240 93 B200F, B230F LH 2.4 Engine Harness 9130072 (B230FD with EGR and Pulseair, Calif.). 240 93 B200F, B230F LH 2.4 Engine Harness 9130073 (EGR unknown). 240 93 B230F LH 2.4 Engine Harness 9130491 (LH 2.4 without EGR) 240 93 B200F, B230F, FX, FD, LH 2.4 Engine Harness 9130492 (Equipped with MAIN FUSES at Battery. B230FD with EGR and Pulseair, Germany and Calif.). 260 6-cylinder 260 75 B27E V6 K-Jet Engine Harness 269126, (Europe, possibly Canada and others). 260 75-78 B27A V6 Carb Engine Harness 269967, (Europe, possibly Canada and others). 260 76-77 B27F V6 K-Jet Engine Harness 269605 260 76-77 B27E V6 K-Jet Engine Harness 269562, (Europe, possibly Canada and others). 260 78-79 B27E V6 K-Jet Engine Harness 1269153 (possibly 9139222 compatible), (Europe, possibly Canada and others). 260 78-79 B27F V6 K-Jet Engine Harness 1269153 (possibly 9139222 compatible) 260 79 B27A V6 Carb Engine Harness (1269292 old), 9139230, (Europe, possibly Canada and others). 260 80 B28E V6 K-Jet Engine Harness (1269417 old) 9139222, (Europe, possibly Canada and others). 260 80-82 B28A V6 Carb Engine Harness (??? old) 3515377, new PN 9139230, (Europe, possibly Canada and others). 260 80 B28F V6 (EARLY 1980) K-Jet Engine Harness 1269153, 1269418 old), new PN 9139222. Examples of 1980 mid-year change (B27 to B28) may be found at: https://www.volvobertone.com/262prod.html#chassis%20number 260 81 B28F V6 K-Jet Engine Harness (1269666 old) new PN 3515376 known as Federal model. With 2-wire Auxiliary Air Valve. 260 81 B28F V6 K-Jet Engine Harness (??? old) new PN 3515375 commonly known as Calif model. With 3-wire Idle Air Control Valve. 260 81-82 B28E V6 K-Jet Engine Harness 3515374, (Europe, possibly Canada and others). 260 82 B28F V6 K-Jet Engine Harness (1269666 old) new PN 3515376 commonly known as Federal model. With 2-wire Auxiliary Air Valve. 260 83-85 B28E V6 K-Jet Engine Harness 3515389 (possibly 9139222 compatible), (Europe, possibly Canada and others). 240 Diesel 6-cylinder 240 Diesel 79 D20, D24 Engine Harness 1258130. 240 Diesel 80 D20 Engine Harness (1324872 old), new PN 9139238. 240 Diesel 81 D20 Engine Harness (1324872 old), 3515388 newer, newest PN 9139238. 240 Diesel 80-84 D24 Engine Harness (1259455 old, 1323991 newer, 1324872 newer), 3515388 newer, 3515400 newer, newest PN 9139238. 240 Diesel 85-89 D24 Engine Harness (1398840 old) new PN 9139238. (Europe or other market). 240 Diesel 90-93 D24 Engine Harness (3515921 old) new PN 9139238. (Europe or other market). |
BELOW NUMBERS ARE ASSIGNED TO
NORTH AMERICAN VOLVOS
(unless marked otherwise) 740 Turbo, 760 Turbo, 780 Turbo, 940 Turbo, 4-cylinder 760 Turbo 84 B23ET Motronic (one year only) Engine Harness (1324665 old) 3515496, (Europe, Australia and others). 740 Turbo 84 B19ET K-Jetronic Engine Harness 3515498, (Europe, possibly others). 760 Turbo 84 B23FT LH-2.1 (one year only) Engine Harness (1324974, 1348306 old), new PN 3515497. 740/760 Turbo 85 B230FT LH-2.2 Engine Harness (1324459 old), new 3515509. 740/760 Turbo 85-86 B200ET, B230ET Motronic Engine Harness (1324424 old) new PN 3515523, (Europe, possibly Canada and others). 740/760 Turbo 86 B230FT LH-2.2 Engine Harness (1362579 old), new PN 3515520. 740/760 Turbo 86 B230FT RIGHT Fender Harness PN 3515550. 740/760 Turbo 86 B230FT RIGHT Fender Harness PN 1362595. USA. 740/760 Turbo 86 B230FT LEFT Fender Harness PN 1362615. USA. 780 Turbo 86-89 B200ET Motronic Engine Harness 1398831, (Europe, possibly others). 740 Turbo 87-89 B200ET, B230ET Motronic Engine Harness 1398831, (Europe, possibly others). 740/760/780 Turbo 87 B230FT LH-2.2 Engine Harness (1363217, 1398832 old), new PN 3523094. 740 & 760 Turbo 87 B230FT LEFT fender harness 1362467. 740 & 760 Turbo 87 B230FT LEFT fender harness 1363172 (Europe). 740 & 760 Turbo 87 B230FT RIGHT fender harness 1362501. 740 & 760 Turbo 87 B230FT RIGHT fender harness 1362686 (Europe). 740 & 780 Turbo 88 B230FT (NOT 88 760 Turbo) LH-2.2 Engine Harness (1363217, 1398832 old), new PN 3523094. 760 Turbo 88-89 B230FT RIGHT fender harness 1263330. 760 Turbo 88-89 B230FT LH-2.2 Engine Harness (1363463 old), new PN 3523093. 760 Turbo 88-89 B230ET Motronic Engine Harness (1363464 old) new PN 3523092, (Europe, possibly Canada and others). 740 Turbo 88-89 B230FT RIGHT fender harness 1362501. 740 & 780 Turbo 89 B230FT LH-2.2 Engine Harness (1398832 old), new PN 3523094. 740 & 780 Turbo 89 B230FT LEFT fender harness (1398038, 1398368 old) new PN 3515617. 740 & 780 Turbo 89 B230FT RIGHT fender harness new PN 3515618. 740 & 780 Turbo 89 B230FT Turbo Plus harness 8360303 (740/760/780). 740/780 Turbo 90 B230FT LH-2.4 Engine Harness 1398214. 760 Turbo 90 B230FT LH-2.4 Engine Harness 1398216. 740 16 Valve Turbo 90 B204FT LH-2.4 Engine Harness 3515960, (Europe or other market). 740/780 16 Valve Turbo 90 B204GT LH 2.4 Engine Harness 3515960. (Europe, possibly other markets). 740/780 Turbo 90 B230GT LH 2.4 Engine Harness 1398214. (Europe, possibly other markets). 760 Turbo 90 B230GT LH-2.4 Engine Harness 1398216. (Europe, possibly other markets). 740/760/780 Turbo 91 B230FT LH-2.4 Engine Harness 3523379. Also possibly 3523975, 1241647 / 9148319. 740/760/780 Turbo 91 B200FT LH-2.4 Engine Harness 3523379, (Europe, possibly Canada and others). 740 Turbo 91-92 B230FT LH-2.4 Engine Harness 1241647 / 9148319. Also possibly 3523975. 740/760/780 Turbo 92 B200FT LH-2.4 Engine Harness 9130415, (Europe, possibly Canada and others). 940 Turbo 92-93 B230FT LH-2.4 Engine Harness 1241647 / 9148319. Also possibly 3523975. 940 Turbo 94-95 B230FT LH-2.4 Engine Harness 9130415 (Engine number 1493 and lower). Also possibly 3523975. 940 Turbo 94-95 B230FT LH-2.4 Engine Harness 1241647 / 9148319. (Engine number 1494 and higher). Also possibly 3523975. 760/780, 6-cylinder 760 82 B28E V6 K-Jet Engine Harness (1269704 old), new PN 3515470, (Europe, possibly Canada and others). 760 83 B28F V6 K-Jet Engine Harness (1324688 old), new PN 3515484. 760 83 B28E V6 K-Jet Engine Harness (1269833 old), new PN 3515474, (Europe, possibly Canada and others). 760 83-84 B28A V6 Carb Engine Harness (? old), new PN 3515485, (Europe, possibly Canada and others). 760 84 B28F V6 K-Jet Engine Harness (1324754 old), new PN 3515487. 760 84-87 B28E V6 K-Jet Engine Harness 3515500, (Europe, possibly Canada and others). 760 85-86 B28F V6 K-Jet Engine Harness (1348140 old), new PN 3515501. 760 85-86 B28A V6 Carb Engine Harness (? old), new PN 3515499, (Europe, possibly Canada and others). 760 85-87 B28F/B280F LEFT fender harness 1362462. 760 85-87 B28F/B280F RIGHT fender harness 1362453. 760 87 B280F V6 LH-2.2 Engine Harness 1363123. 780 87-91 B280F V6 LH-2.2 Engine Harness 1363123. 780 87-90 B280E V6 LH-2.2 Engine Harness 1363123, (Europe, possibly Canada and others). 760 88 B280F V6 LH-2.2 Engine Harness 1398092. 760 88 B280E V6 LH-2.2 Engine Harness 1398092, (Europe, possibly Canada and others). 780 88-90 B280F V6 LH-2.2 Engine Harness 1363123. 760 89-90 B280F V6 LH-2.2 Engine Harness 3523032. 760 89-90 B280E V6 LH-2.2 Engine Harness 3523032, (Europe, possibly Canada and others). 740/760 Diesel, 6-cylinder 740/760 84 D24 w/o EGR (? old), 3515490. (Europe or other market). 740/760 84 D24T Turbo w/EGR Engine Harness, (? old), new PN 3515492. 740/760 84 D24T Turbo w/o EGR w/Altitude Compensation, Engine Harness, (1324668 old), new PN 3515491. 740/760 85-86 D24T Turbo w/EGR w/Altitude Compensation, Engine Harness (1347398, 1362876 old), new PN 3515579. 740/760 85-86 D24 w/o EGR w/o Altitude Compensation, Engine Harness, (? old) new PN 3515517, (Europe or other market). 740/760 85-86 D24T Turbo w/o EGR w/o Altitude Compensation, Engine Harness (1362581 old), new PN 3515518. 740 GLE non-turbo, 940 Non-turbo, 4-cylinder, 8-valve 740 GLE 84 B19E and B23E K-Jet Engine Harness (1362585 old) 3515522. (Europe, possibly Canada and others). 740 GLE 85 B230F LH 2.2 Engine Harness (1324664 old), new PN 3515505. 740 GLE 85-86 B200E, B230E K-Jet Engine Harness (1362585 old), 3515522, (Europe, possibly Canada and others). 740 GLE 85-86 B200K Carb Engine Harness 3515524, (Europe, possibly Canada and others). 740 GLE 85-86 B230A Carb Engine Harness 3515583, (Europe, possibly Canada and others). 740 GLE 85-86 B230K Carb Engine Harness 3515521, (Europe, possibly Canada and others). 740 GLE 86 B230F LH-2.2 Engine Harness (1362584 old), new PN 3515516. 740 GLE 87-88 B230F LH-2.2 Engine Harness (1363216 old), new PN 1398765. 740 GLE 87-89 B200E, B230E K-Jet Engine Harness 1398829 (with manual transmission), (Europe, possibly Canada and others). 740 GLE 87-89 B200E, B230E K-Jet Engine Harness 1398830 (with auto transmission) (Europe, possibly Canada and others). 740 GLE 87-88 B230F LEFT fender harness 1362468. 740 GLE 87-88 B230F LEFT fender harness 1362470 (Europe). 740 GLE 87-88 B230F RIGHT fender harness 1362464. 740 GLE 87-88 B230F RIGHT fender harness 1362682 (Europe). 740 GLE 87-89 B200E, B230E K-Jet Engine Harness (EUROPE) 1398829 (with manual transmission) 740 GLE 87-89 B200E, B230E K-Jet Engine Harness (EUROPE) 1398830 (with auto transmission) 740 GLE 87-90 B200K Carb Engine Harness 1363104, (Europe, possibly Canada and others). 740 GLE 87-90 B230K Carb Engine Harness 1363212, (Europe, possibly Canada and others). 740 GLE 89 B230F LH-2.4 Engine Harness 1398777. 740 GLE 89 B230F Regina EFI Engine Harness 1398167. 740 GLE 89 B230F LEFT fender harness 1398060. 740 GLE 89-90 B200F LH 2.4 Engine Harness 1363626. (Europe, possibly other markets). 740 GLE 90 B230F LH 2.4 Engine Harness 1363626 740 GLE 90 B230F Regina Engine Harness 1363628 (with Regina EFI Alt-1). 3544342 (with Regina EFI Alt-2). 740 GLE 90 B200E, B230E K-Jet Engine Harness 1398778 (with manual transmission), (Europe, possibly Canada and others). 740 GLE 90 B200E, B230E K-Jet Engine Harness 1398779 (with auto transmission), (Europe, possibly Canada and others). 740 GLE 91 B230F Regina EFI Engine Harness 3523378. 740 GLE 91 B230F LH-2.4 Engine Harness 3523377. 740 GLE 91 B200E, B230E K-Jet Engine Harness 3523375 (with manual transmission), (Europe, possibly Canada and others). 740 GLE 91 B200E, B230E K-Jet Engine Harness 3523376 (with auto transmission), (Europe, possibly Canada and others). 740 GLE 91 B200F, B230FB, B230G LH 2.4 Engine Harness 3523377. (Europe, possibly other markets). 740 GLE 92 B230F LH-2.4 Engine Harness 3523973. 740 GLE 92 B230F Regina Engine Harness 3523974, 9130414. 740 GLE 92 B200F, B200G, B230FB, B230G LH 2.4 Engine Harness 3523973. (Europe, possibly other markets). 940 92-95 B230F, B230FD Regina Engine Harness 3523974, 9130414, 9130479. 940 94-95 B230F, B230FD LH-2.4 Engine Harness 9148317. 740/780/940, 4-cylinder, 16-valve 740 16Valve 88-89 B234F LH 2.4 Engine Harness 3523151. 740 16 Valve 89 B204E LH 2.4 Engine Harness 3523151. (Europe, possibly other markets). 740 16 Valve 90 B204E LH 2.4 Engine Harness 3515139. (Europe, possibly other markets). 740 16Valve 90 B234F LH 2.4 Engine Harness 3515139. (USA LHD with EGR; Australia RHD no EGR) 740 16Valve 90 B234F RIGHT FENDER harness (1398711 old) new PN 3523098. 740 16Valve 90 B234F LEFT FENDER harness 1398206. 740 16 Valve Turbo 90 B204FT LH-2.4 Engine Harness 3515960, (Europe or other market). 740/780 16 Valve Turbo 90 B204GT LH 2.4 Engine Harness 3515960. (Europe, possibly other markets). 740/940 16Valve 91-92 B234F LH 2.4 Engine Harness 3523381 (USA LHD with EGR; Australia RHD no EGR) |
|
Shipping
within the USA is usually by Priority Mail
insured and the cost is listed in each
harness description. If
an additional amount is needed to cover shipping
or other services, it may be added to the cart
by using the info here: More Resources: |
|
New Replacement
Harnesses Available Below Regarding Volvo Wiring Diagrams: I get a lot of emails from people asking for copies of wire diagrams and wiring manuals. I do not offer these. If you need factory wire diagram info, the best on-line source I know is at www.volvowiringdiagrams.com. If you need a printed factory wiring manual for your car, you might still be able can find Volvo Factory Wiring Manuals at http://www.volvotechinfo.com or https://www.volvotechinfo.com/index.cfm?event=item.service where they are on average about $27.00 for a 170 page manual. Under "Category" select Service Manuals. |
| 760
- 6 cylinder 1983 760 GLE B28F V6 USA 3515484 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands One in Stock If this harness becomes out of stock, manufacturing lead time will be about 3-4 weeks.
|
|
| 3515484 NEW

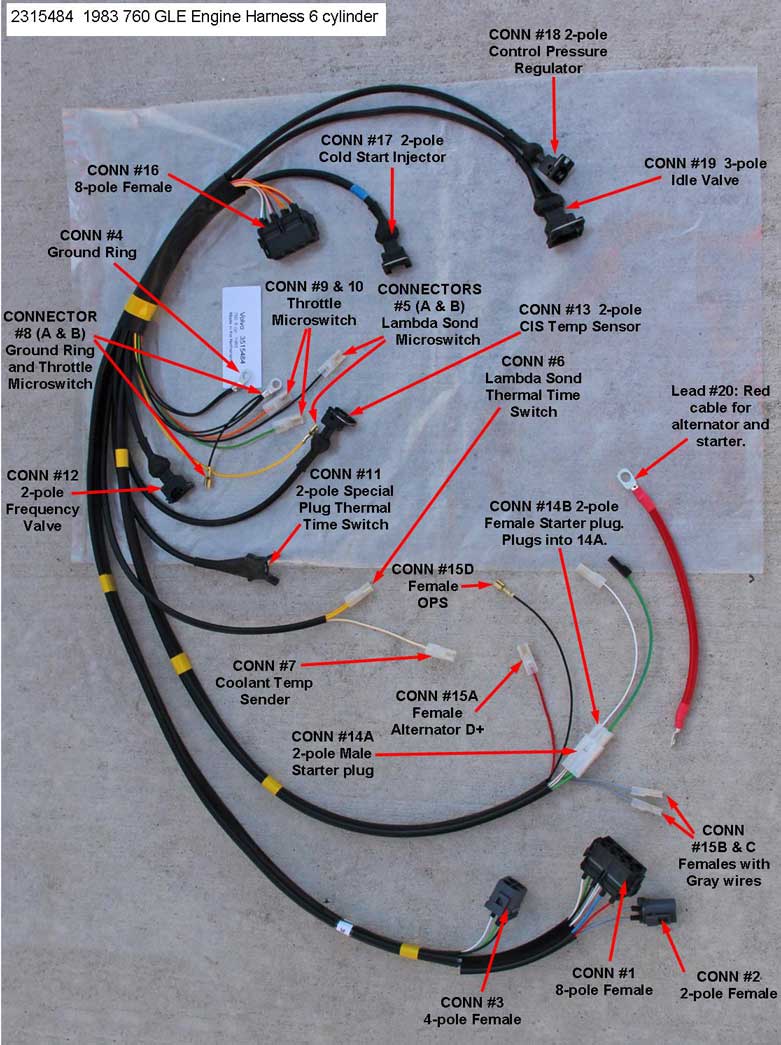

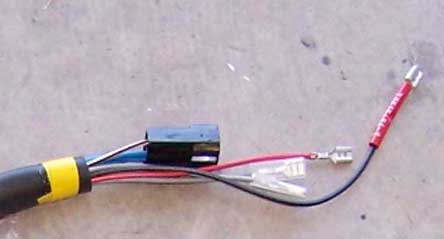

Replacement MAIN ENGINE WIRE HARNESS for Volvo
760. 1983 Volvo 760 GLE (V6). Part Number 3515484. Other corresponding part numbers: 1324688. Price: $229.00 plus shipping. This harness comes with a complete set of custom colored diagrams illustrating all connections.
bos120e |
||
| 760

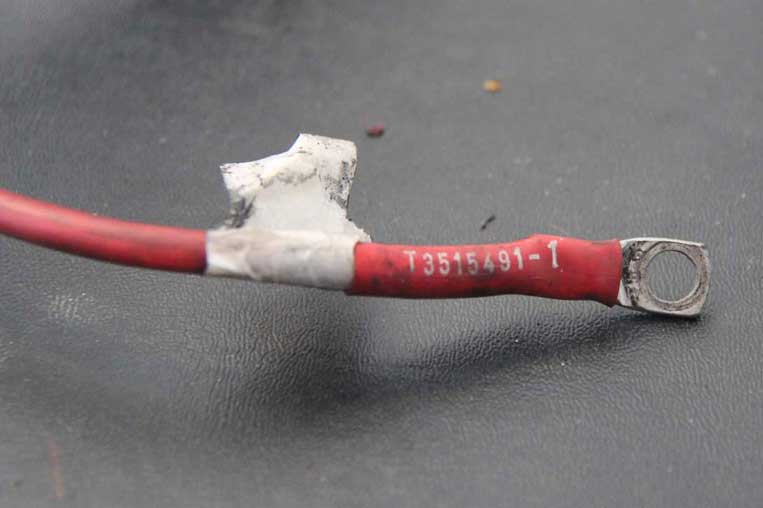

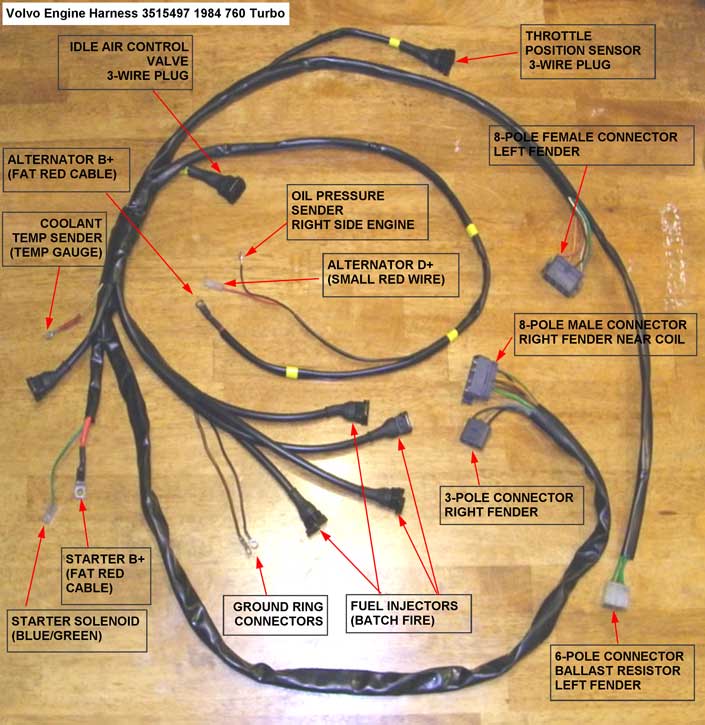

- 4 cylinder 1984 760 Turbo B23FT 4 cylinder USA (one year only) 3515497 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  |
|
| 3515497 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo. 1984 Volvo 760 TURBO (B23FT 4 cylinder). Part Number 3515497. Other corresponding part numbers: 1324754. Price: $269.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
bos140e |
||
| 760

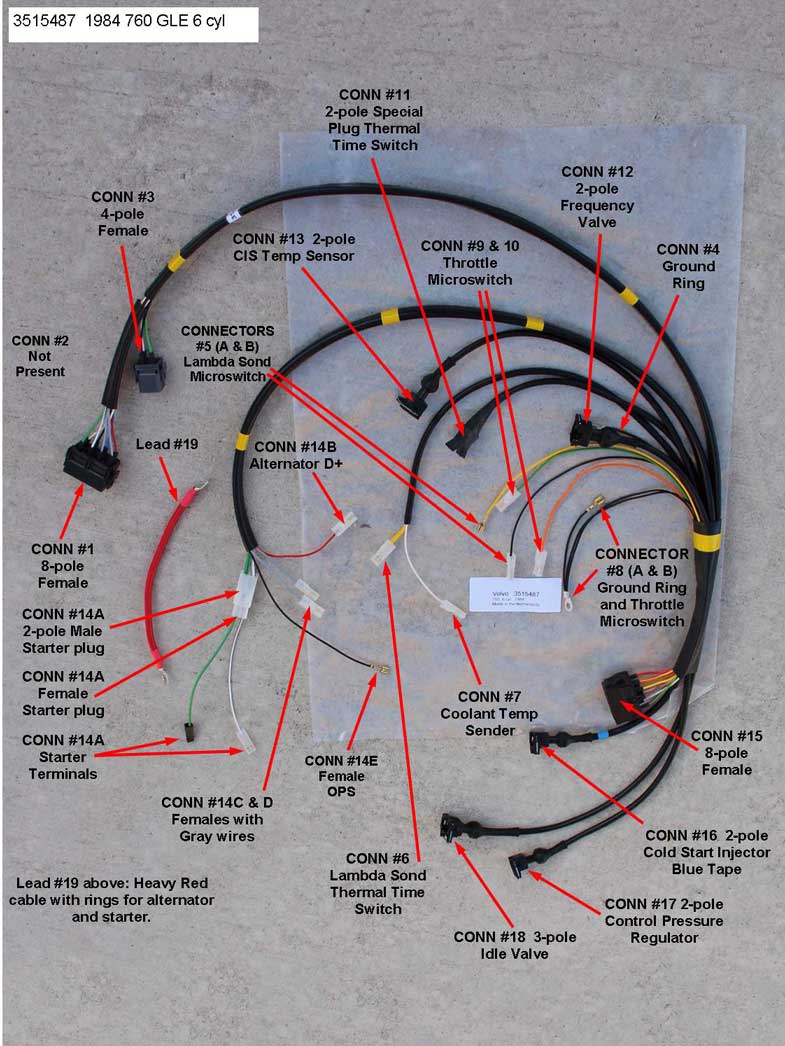

- 6 cylinder 1984 760 GLE B28F 6 cylinder USA 3515487 NOS Genuine Volvo. View Cart or Check Out.
|
NEW GENUINE VOLVO HARNESS N.O.S original Volvo part. ONE AVAILABLE.  |
|
| 3515487 NEW N.O.S Genuine Volvo MAIN ENGINE WIRE HARNESS for Volvo
760. 1984 Volvo 760 GLE B28F V6 6 cylinder engine. Part Number 3515487. Other corresponding part numbers: 1324754. Price: $219.00 plus shipping. This harness comes with a custom colored diagrams illustrating all connections.
|
||
| 760
- 6 cylinder 1984 760 GLE B28F 6 cylinder USA 3515487 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. |
|
| 3515487 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
760. 1984 Volvo 760 GLE B28F V6 6 cylinder engine. Part Number 3515487. Other corresponding part numbers: 1324754. Price: $229.00 plus shipping. This harness comes with a custom colored diagrams illustrating all connections.
|
||
| 760

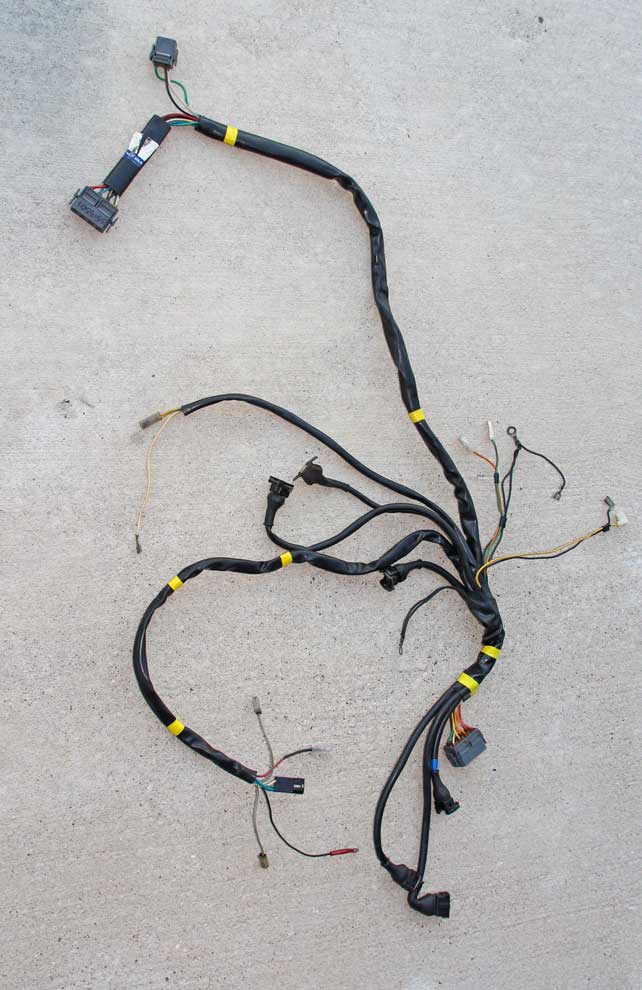

- 6 cylinder 1985-86 760 GLE B28F 6 cylinder USA 3515501 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. (Used harness image for reference only)  |
|
| 3515501 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
760. 1985 or '86 Volvo 760 GLE B28F V6 6 cylinder. Part Number 3515501. Other corresponding part numbers: 1348140. Your price: $229.00 plus shipping.
|
||

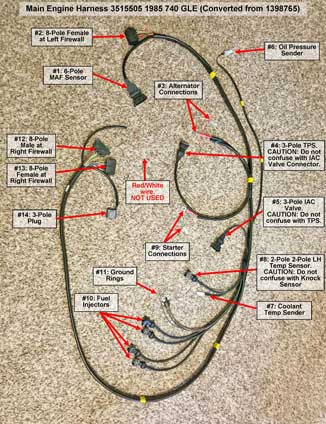

| 740 1985 740 GLE B230F 4 cylinder LH 2.2 EFI USA 3515505 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands Converted NEW Harness Option (description below) NOT IN STOCK If this item become out of stock, manufacturing lead time is about 3-4 weeks.
 |
||
| 3515505 NEW

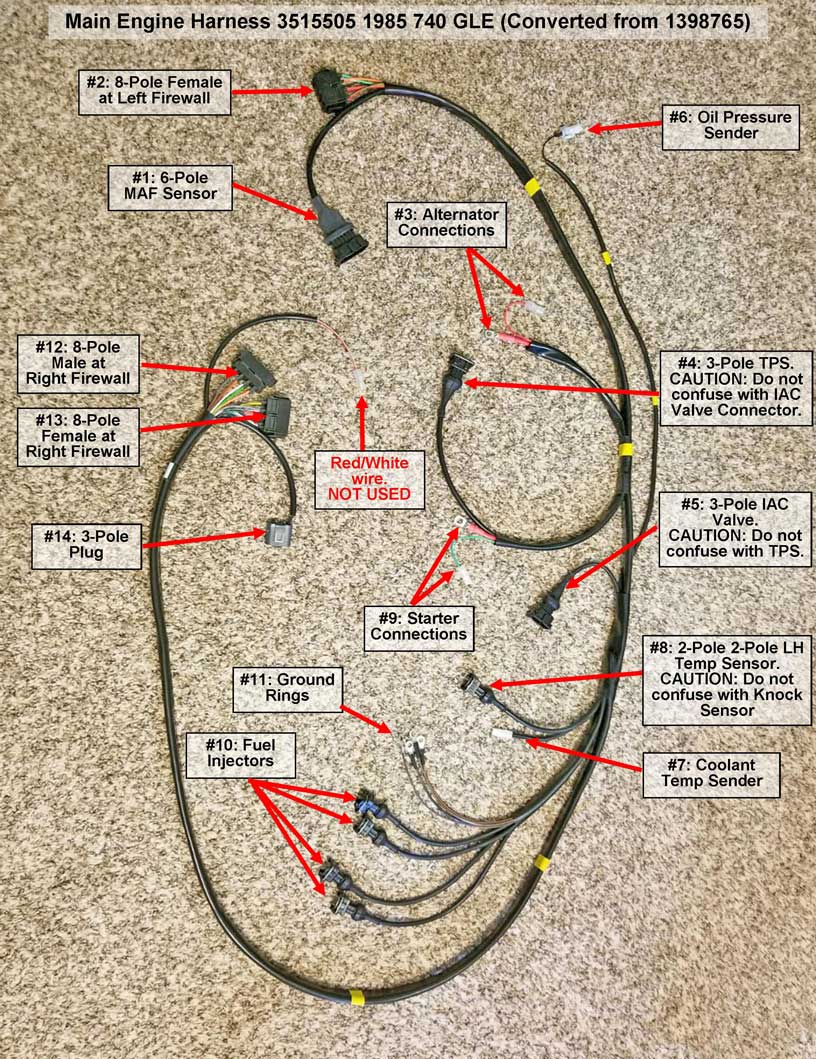

Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1985 Volvo 740 (non-turbo).Part Number 3515505. Other corresponding part numbers: 1324664 This is a Harness Conversion: Why is this a Converted Harness? Engine harnesses for 1985-87 740 non-turbos are similar to each other. It is a fairly simple task to CONVERT an '87 740 engine harness to correctly fit an '86 740. The change involves only one or two wires. This is done by me at no extra cost when this harness is ordered. More info about harness conversions here. Price: $299.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
|||
| 740/760
Turbo 1985 740/760 Turbo B230FT 4 cylinder LH 2.2 EFI USA 3515509 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT IN STOCK If this harness becomes out of stock, you may still order. Manufacturing lead time will be about 3-4 weeks.  |
|
| 3515509 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1985 Volvo 740 TURBO / 760 TURBO, Part Number 3515509. Other corresponding part numbers: 1324459. Price: $299.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
bos140e |
||
| 740 1985-86 740 TURBO (EUROPEAN market) |
NEW HARNESS Made in the Netherlands  |

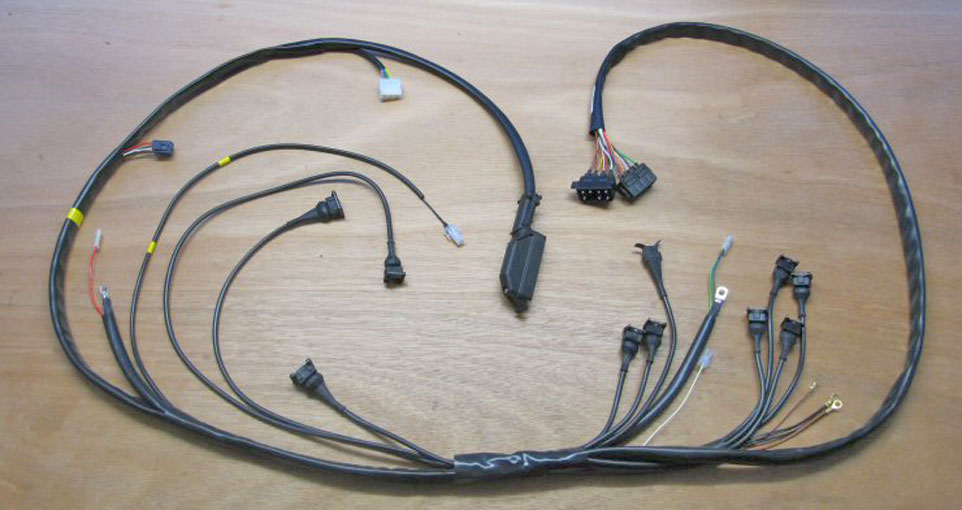

| 3515523
NEW Replacement MAIN ENGINE WIRE HARNESS
for Volvo 740. 1985-86 740 Turbo, European market models with Motronic fuel injection, Part Number 3515523 (Made in the Netherlands). For European customers, this harnesses is available directly in Europe: www.elbertbos.nl bos160e |
|

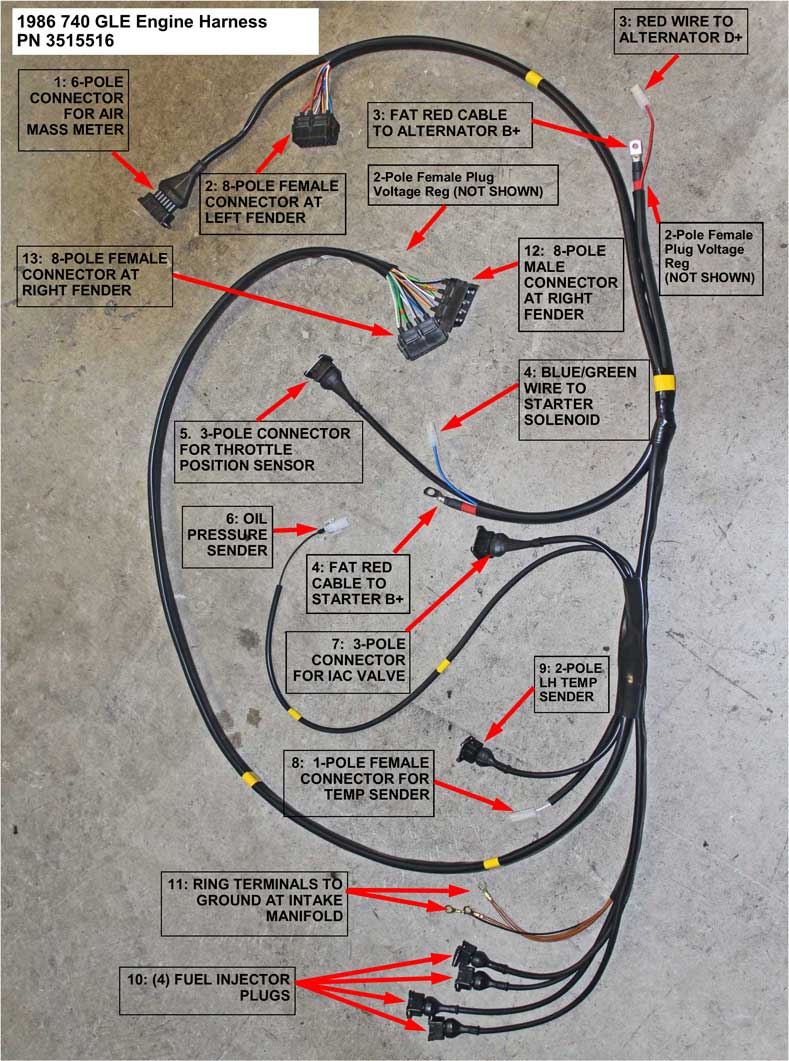

| 740 1986 740 GLE B230F 4 cylinder USA 3515516 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT IN STOCK If this harness becomes out of stock, you may still order. Manufacturing lead time will be about 3-4 weeks.
|
||
| 3515516 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. PRICE: $299.00 plus shipping. This is a Harness Conversion: Why is this a Converted Harness? Engine harnesses for 1985-87 740 non-turbos are similar to each other. It is a fairly simple task to CONVERT an '87 740 engine harness to correctly fit an '86 740. The change involves only one or two wires. This is done by me at no extra cost when this harness is ordered. More info about harness conversions here.
|
|||
| 740/760

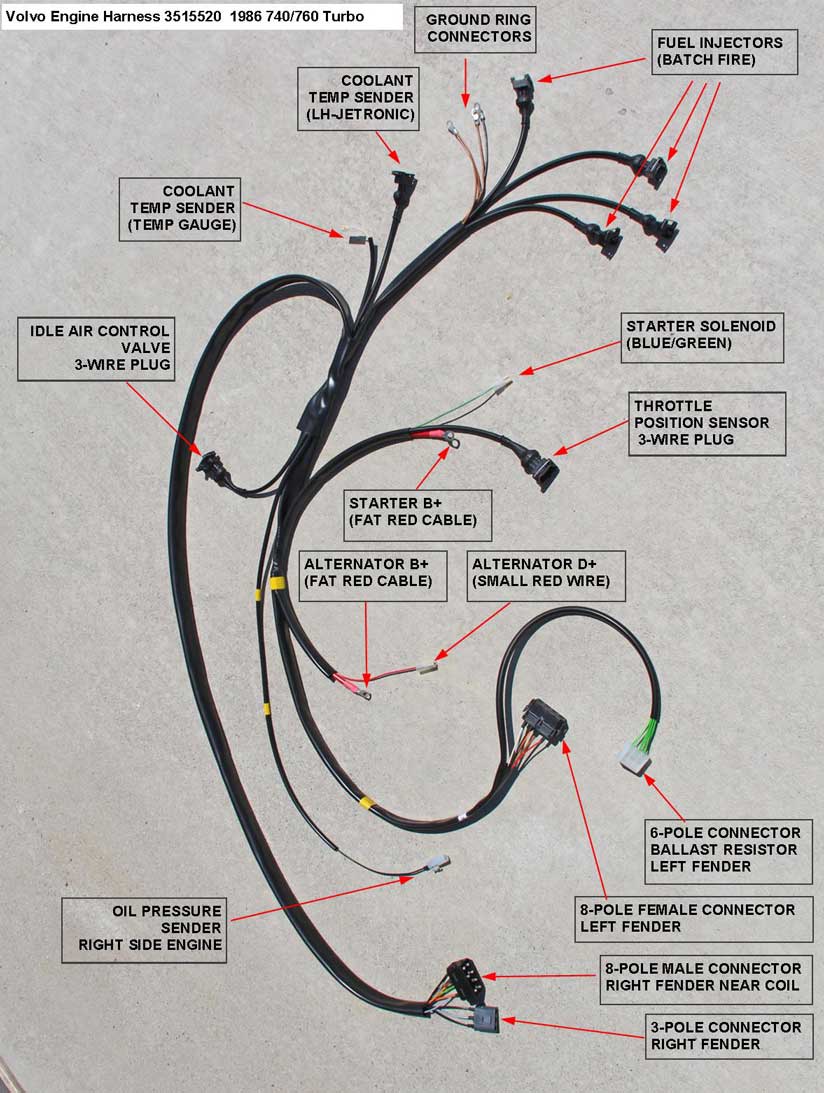

Turbo 1986 740/760 Turbo B230FT 4 cylinder USA 3515520 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT IN STOCK If this harness becomes out of stock, you may still order. Manufacturing lead time will be about 3-4 weeks.
|
|
| 3515520 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1986 Volvo 740 TURBO / 760 TURBO, Part Number 3515520. Other corresponding part numbers: 1362579. Price: $299.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
||
| 760 - 6 cylinder 1987 760 GLE, 780 with B280F 6 cylinder USA 1363123 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  |
|
| 1363123 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1987 Volvo 760 GLE or 780 with B280F V6 6 cylinder. Part Number 1363123. Price: $319.00 plus shipping
bos180e |
||
| 740 1987-88 740 GLE B230F 4 cylinder USA 1398765 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT IN STOCK If this harness becomes out of stock, manufacturing lead time will be about 3-4 weeks.  |
|
| 1398765 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1987-'88 Volvo 740 GLE (non-turbo). Part Number 1398765. Price: $299.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
bos145e |
||

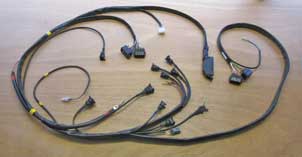

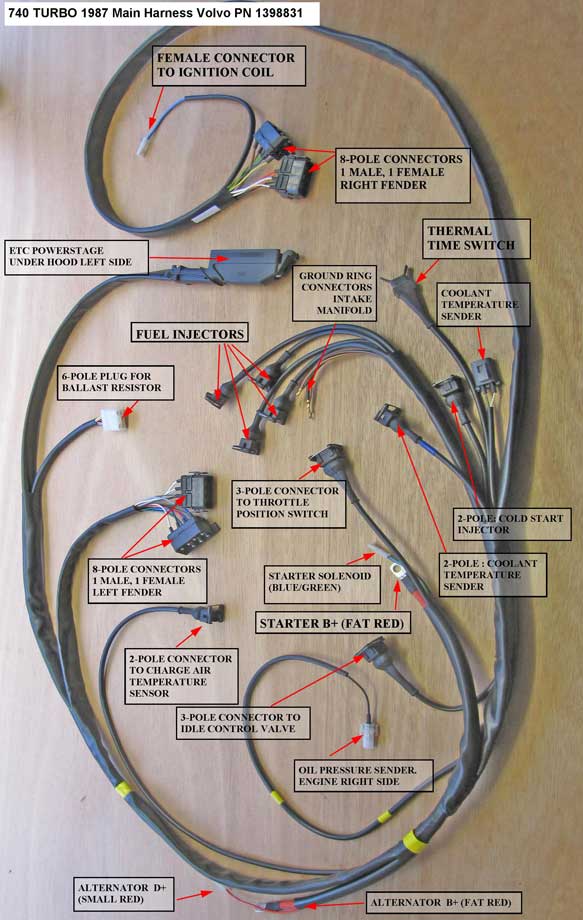

| 740 1987 740 TURBO (EUROPEAN Model) 1398831 |
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.
 |
| 1398831
NEW Replacement MAIN ENGINE WIRE HARNESS for
Volvo 740. 1987 740 Turbo, European market models with Motronic fuel injection, Part Number 1398831 (Made in the Netherlands). For European customers this harnesses is available directly in Europe: www.elbertbos.nl bos170e |
|
| 740/760
Turbo 1987 740/760 Turbo B230FT 4 cylinder USA 3523094 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT IN STOCK If this becomes out of stock, it may still be ordered. Manufacturing lead time will be about 3-4 weeks.  |
|||
| 3523094 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1987 Volvo 740 Turbo / 760 Turbo, 780 Turbo. North American models with LH Jetronic 2.2 fuel injection. Part Number 3523094. Other corresponding part numbers: 1398832. Price $299.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
bos170e |
||||
| 740 1988 740 GLE 4 cylinder B230F USA and Europe. 1398765 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT IN STOCK If this harness becomes out of stock, manufacturing lead time will be about 3-4 weeks. |
||
| 1398765 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1987-'88 Volvo 740 GLE (non-turbo), Part Number 1398765. Price: $299.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
|||
| Some 760 and 780
- 6 cylinder 1987 760 with B280F 6 cylinder LH 2.2 (USA). 1987 760 with B280E 6 cylinder LH 2.2 (found on UK market car). 1988-90 780 with B280F 6 cylinder LH 2.2 (USA). 1987-90 780 with B280E 6 cylinder LH 2.2 (Europe). 1363123 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  |
|
| 1363123 NEW
Replacement MAIN ENGINE WIRE HARNESS. Part Number 1363123. Price: $349.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
||

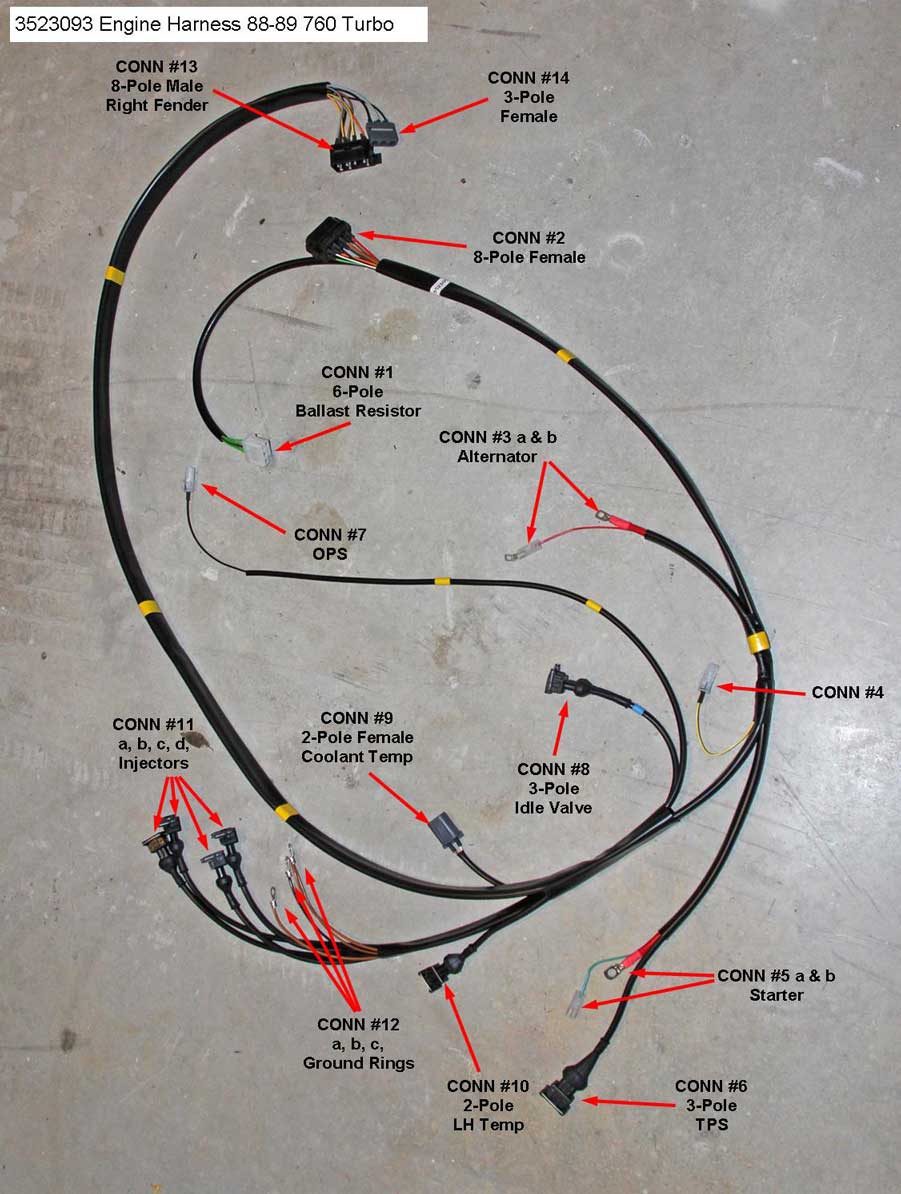

| 760 Turbo 1988-89 760 Turbo only, B230FT LH 2.2 4-Cyl USA 3523093 (NOT for 740 Turbo) View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands ONE IN STOCK  |
|
| 3523093
NEW Replacement MAIN ENGINE WIRE HARNESS
for Volvo. 1988-89 Volvo 760 Turbo, North American models with LH Jetronic 2.2 fuel injection. Part Number 3523093. Price: $299.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
||
| 740 GLE (non-turbo) 1989 B230F with Bosch LH 2.4 EFI PN 1398777 NOT QUITE AVAILABLE YET Input needed. |
NEW HARNESS Made in the Netherlands NOT QUITE AVAILABLE YET This harness can become available, however we need some input from a customer who has this car. We have already developed the 1990 model harness. We have found the factory diagrams to be IDENTICAL for the 1989 model, so if you need this harness, we will need to guide you through some comparisons to be certain this harness is 100% correct. EMAIL ME.
|
|
| 1398777 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo. 1989 Volvo 740 GLE (non-turbo). North American models with Bosch LH Jetronic 2.4 fuel injection. Part Number 1398777. Price $319.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
||
| 740/760
Turbo 1988-89 740 Turbo B230FT LH 2.2 4-Cyl USA 1988-89 780 Turbo B230FT LH 2.2 4-Cyl USA (NOT for 88-89 760 Turbo) 3523094 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT IN STOCK If this harness becomes out of stock, manufacturing lead time can be about 3-4 weeks.  |
|
| 3523094 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo. 1988-89 Volvo 740 Turbo / 780 Turbo. North American models with LH Jetronic 2.2 fuel injection. Part Number 3523094. Price $319.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
||
| 740 16 Valve 1989 740 16 Valve B234F, B204F LH 2.4 Fuel Injection, 4 cylinder, USA, Europe. PN 3523151 NEW HARNESS Made in the Netherlands . NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Price $339.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.  ORDER HERE PN 3523151 1989 740 16 Valve. View Cart or Check Out.
Finding the Part Number on this harness: The PN for the original harness is found on a red tube marked "T3523151-2" on the RED wire that goes to the back of the alternator.  |
| 740 16 Valve (NOS Genuine Volvo) 1989 740 16 Valve B234F, B204F LH 2.4 Fuel Injection, 4 cylinder, USA, Europe. PN 3523151 New Genuine Volvo Harness Please email if you have questions. CONTACT This New Harness is No Longer Available. Price $339.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.  PN 3523151 NOS Genuine, 1989 740 16 Valve. |

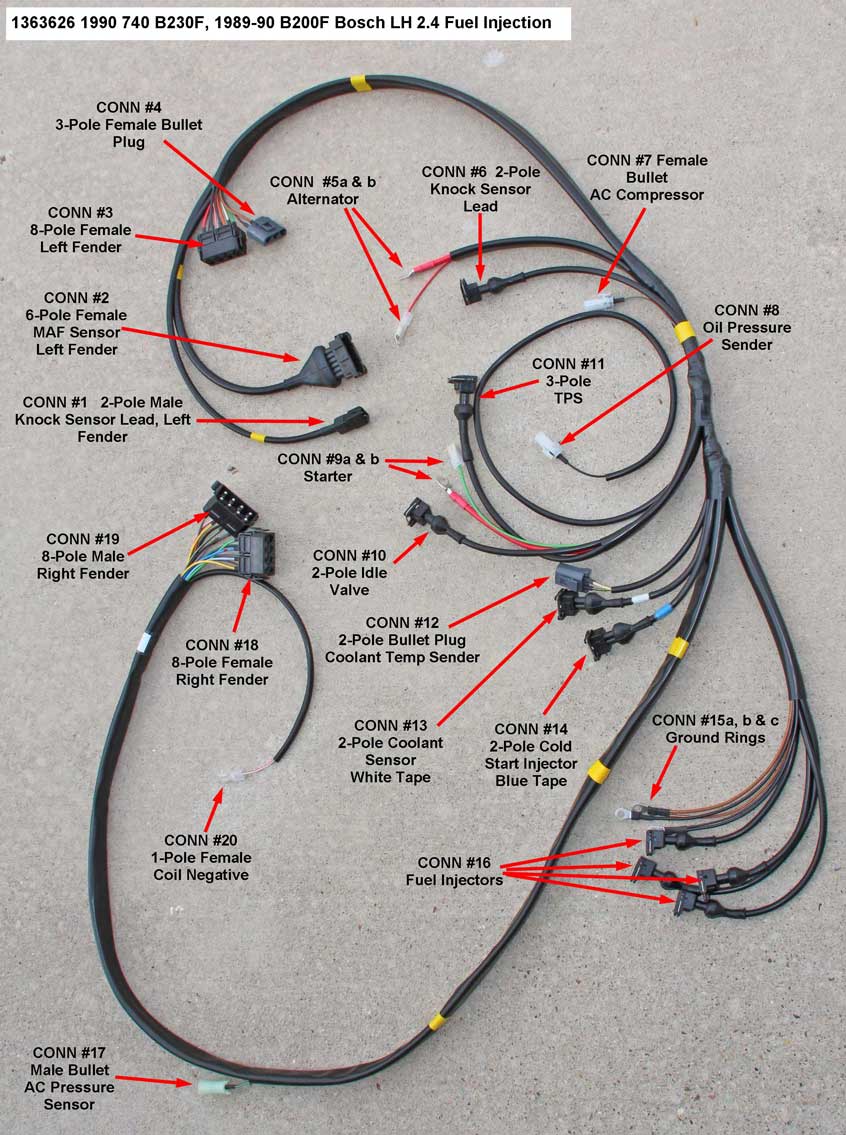

| 740 1990 740 GLE B230F Bosch LH 2.4 Fuel Injection, 4 cylinder, USA 1989-90 B200F Bosch LH 2.4 Fuel Injection, 4 cylinder, Europe 1363626 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. |
|
| 1363626 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo. 1990 Volvo 740 GLE (North American models), 1989-90 B200F (Europe), LH Jetronic 2.4 fuel injection, no EGR. Part Number 1363626. PRICE: $319.00 plus shipping.
|
||
| 740 1990 740 B230F Regina Fuel Injection, 4 cylinder, USA PN 1363628 (3544342) NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Price $319.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.  ORDER HERE PN 1363628 1990 740 (Regina) View Cart or Check Out. |
| Finding the
Part Number on this harness: The PN for the original harness is found on a red tube marked "T1363628" on the Yellow/White wire that goes to the female 8-pole plug at the left fender near the firewall.  |
| 740 Turbo 1990 740 Turbo, 780 Turbo, B230FT (USA), B230GT (Europe) (Not for 760 Turbo) Used for EGR or non-EGR versions. LH 2.4 4-cylinder. 1398214
View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  |
|
| 1398214 NEW

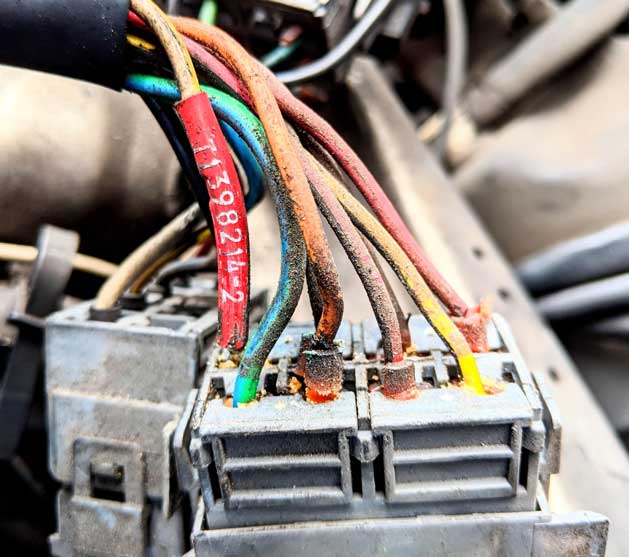

Replacement MAIN ENGINE WIRE HARNESS for Volvo. 1990 Volvo 740 Turbo, B230FT (North American models), B230GT (Europe), LH Jetronic 2.2 fuel injection, with or without EGR. Part Number 1398214. PRICE: $319.00 plus shipping.

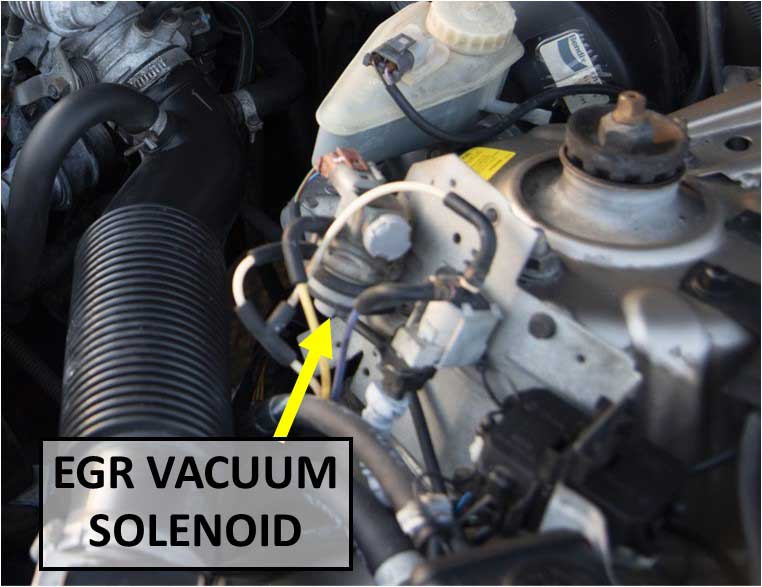

Identifying EGR components.
 |
||
| 760 Turbo 1990 760 Turbo B230FT (USA), B230GT (Europe) (Not for 740 or 780 Turbo) LH 2.4 4-cylinder with or without EGR. 1398216
View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.
|
|

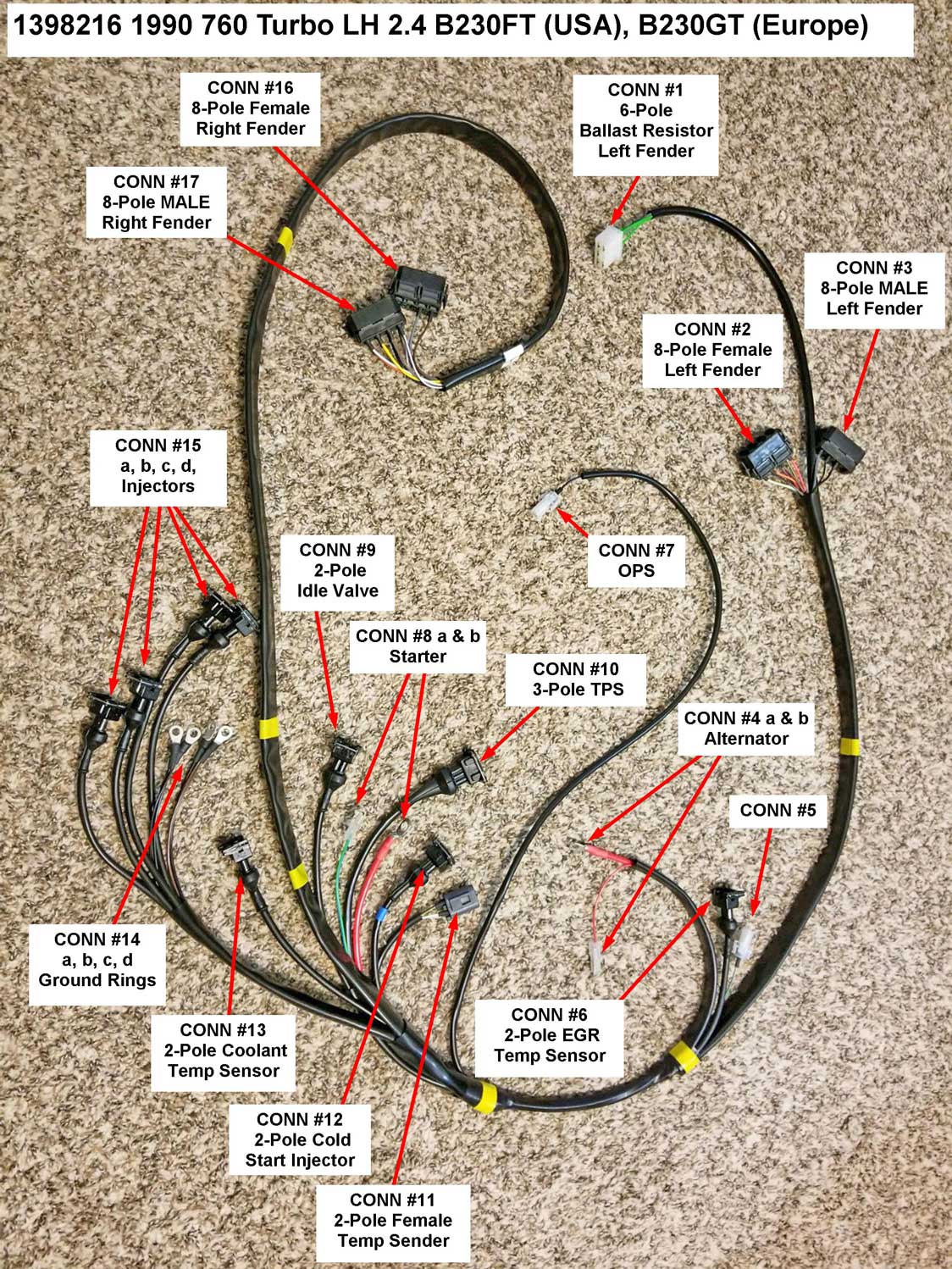

| 1398216 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo. 1990 Volvo 760 Turbo, B230FT (North American models), B230GT (Europe), LH Jetronic 2.2 fuel injection, no EGR. Part Number 1398216. PRICE: $319.00 plus shipping.
Identifying EGR components. |
||
| 740 16 Valve 1990 740 16 Valve B234F with LH 2.4, 4 cylinder, EGR optional, USA or Australia (LHD or RHD). 3515139 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  |
|
| 3515139 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1990 Volvo 740 16 Valve with LH 2.4 fuel injection. EGR is optional. Price $329.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
Identifying EGR components.
|
||
| 740 1991 740 B230F Regina Fuel Injection, 4 cylinder, USA 3523378 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  |
|
| 3523378 NEW

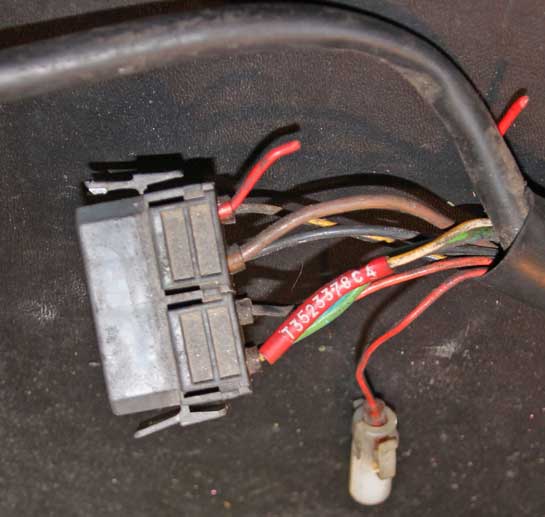

Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1991 Volvo 740 non-turbo with Regina fuel injection. Part Number 3523378. Price $319.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
||

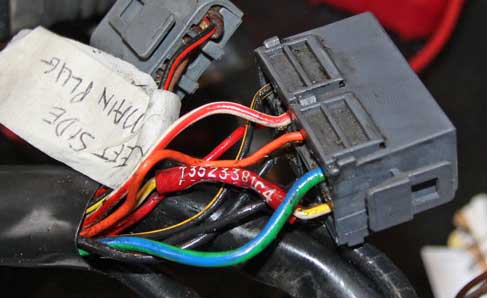

| 740 16 Valve 1991 740 16 Valve B234F DOHC with LH 2.4, 4 cylinder, EGR optional, USA or Australia (LHD or RHD). 3523381 Price: $329.00 plus shipping NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  View Cart or Check Out.
|
|
| 3523381 NEW
Replacement MAIN ENGINE WIRE HARNESS for Volvo
740. 1991 Volvo 740 16 Valve with LH 2.4 fuel injection. EGR is optional. Price $329.00 plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
Identifying EGR Components.
|
| 740/760/780 Turbo 1991 740 Turbo B230FT, LH 2.4, 4 cylinder (EGR optional). Also 1991 760 Turbo, 780 Turbo. 3523379 (1398216) Price $349.00 plus shipping. CAUTION: This year 740 Turbo may use either this harness or the 3523975 (next one below), The difference will be easy to spot, since the 3523975 has very different looking wire sleeve coverings. Please email if you have a question..
NEW HARNESS
Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  View Cart or Check Out.
|
|
|
These
harnesses come with a complete set of custom
made color diagrams illustrating each circuit
and connection in detail. These diagrams will
answer any questions about your harness
connections.
Identifying EGR Components.
bos190e
|
| 740/940 Turbo 1992 (and some 1991) 740 Turbo B230FT, LH 2.4, 4 cylinder (EGR optional). 1991 940 SE (2.3 turbo) B230FT, LH 2.4, 4 cylinder (EGR optional). 1991-95 940 Turbo B230FT, LH 2.4, 4 cylinder (EGR optional). 3523975 Price: $349.00 plus shipping Associated part numbers: 1241647, 9148319 CAUTION: If you have a 1991, check your harness part number before ordering. The 1991 740 Turbo may use harness 3523379 (next one above).
Made in the Netherlands NOT IN STOCK. Made to Order. If this harness is out of stock, it may be ordered. Manufacturing lead time will be about 3-4 weeks.  View Cart or Check Out.
|
||
|
These
harnesses come with a complete set of custom
made color diagrams illustrating each circuit
and connection in detail. These diagrams will
answer any questions about your harness
connections.
Identifying EGR Components.
bos190e
|

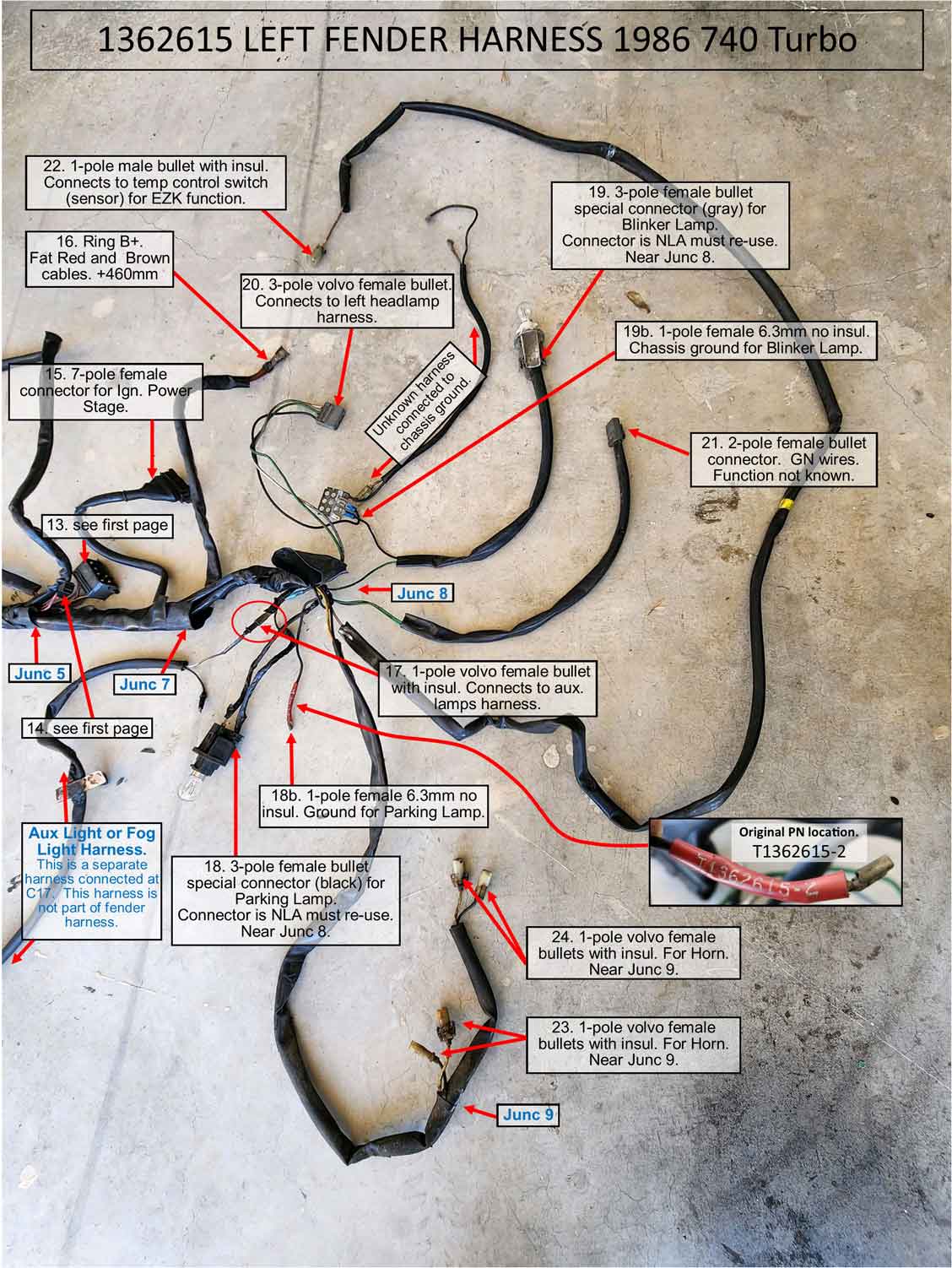

| 740/760 Front FENDER Harnesses Other years/models may be possible. Please inquire if you have questions. CONTACT ME |

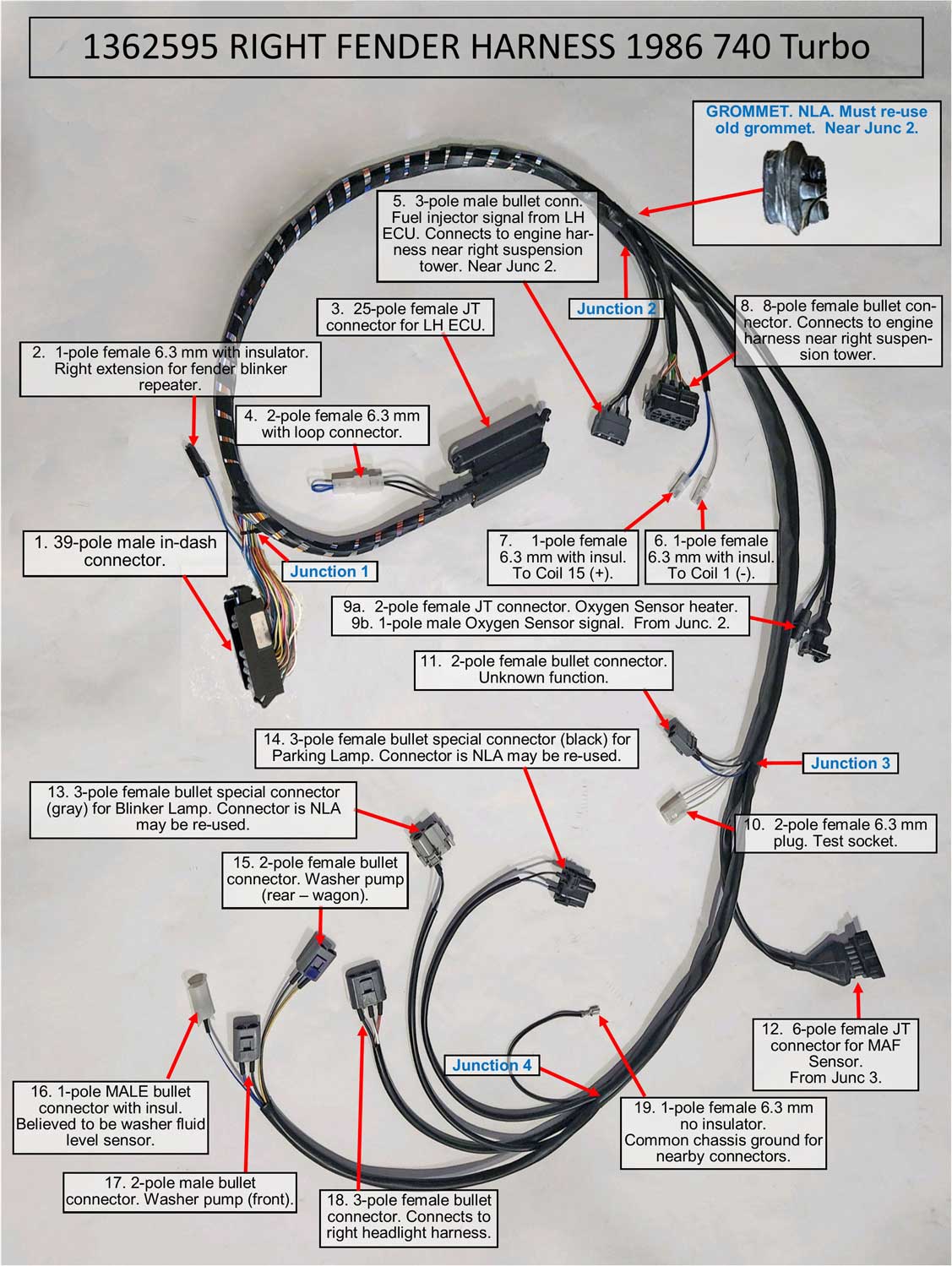

| 1986 740/760 Turbo Fender Harness RIGHT SIDE (Right suspension tower harness) 1986 740 TURBO (LH 2.2) 4 cylinder B230FT (USA headlights) 1986 760 TURBO (LH 2.2) 4 cylinder B230FT (USA headlights) PN 1362595 NEW HARNESS AVAILABLE Made in the Netherlands NOT currently in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  PN 1362595 NEW Replacement FENDER WIRE HARNESS. See "Important Information" below about some parts of this harness that are NLA, meaning you would need to re-use a couple connectors. Right side fender harness (right suspension tower harness) for 1986 740 TURBO, 760 TURBO. USA headlights. PRICE: $399.00 Plus shipping. View Cart or Check Out.

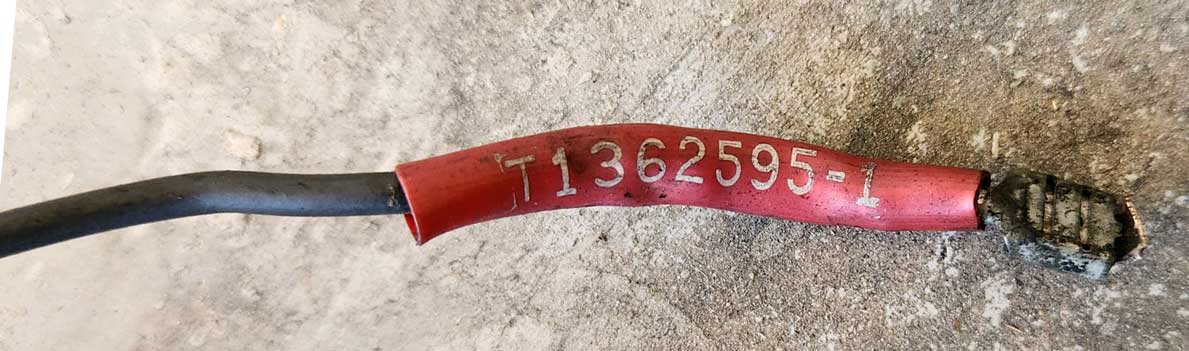

CONTACT ME Finding the original Part Number on this harness:  The PN for this original RIGHT fender harness is 1362595 and it is found on a red tube on a black ground wire near the front corner of the car. The part number will appear as "T1362595-2" If you find a different part number on your car made in 1986, please email.
|
||||||
| 1986 740/760 Turbo Fender Harness LEFT SIDE (Left suspension tower harness) 1986 740 TURBO (LH 2.2) 4 cylinder B230FT (USA headlights) 1986 760 TURBO (LH 2.2) 4 cylinder B230FT (USA headlights) PN 1362615 NEW HARNESS AVAILABLE Made in the Netherlands NOT currently in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.   (Above photos are showing old used harness) PN 1362515 NEW Replacement FENDER WIRE HARNESS. See "Important Information" below about some parts of this harness that are NLA, meaning you will be re-using a few connectors. Left side fender harness (left suspension tower harness) for 1986 740 TURBO, 760 TURBO. USA headlights. PRICE: $399.00 Plus shipping. View Cart or Check Out.

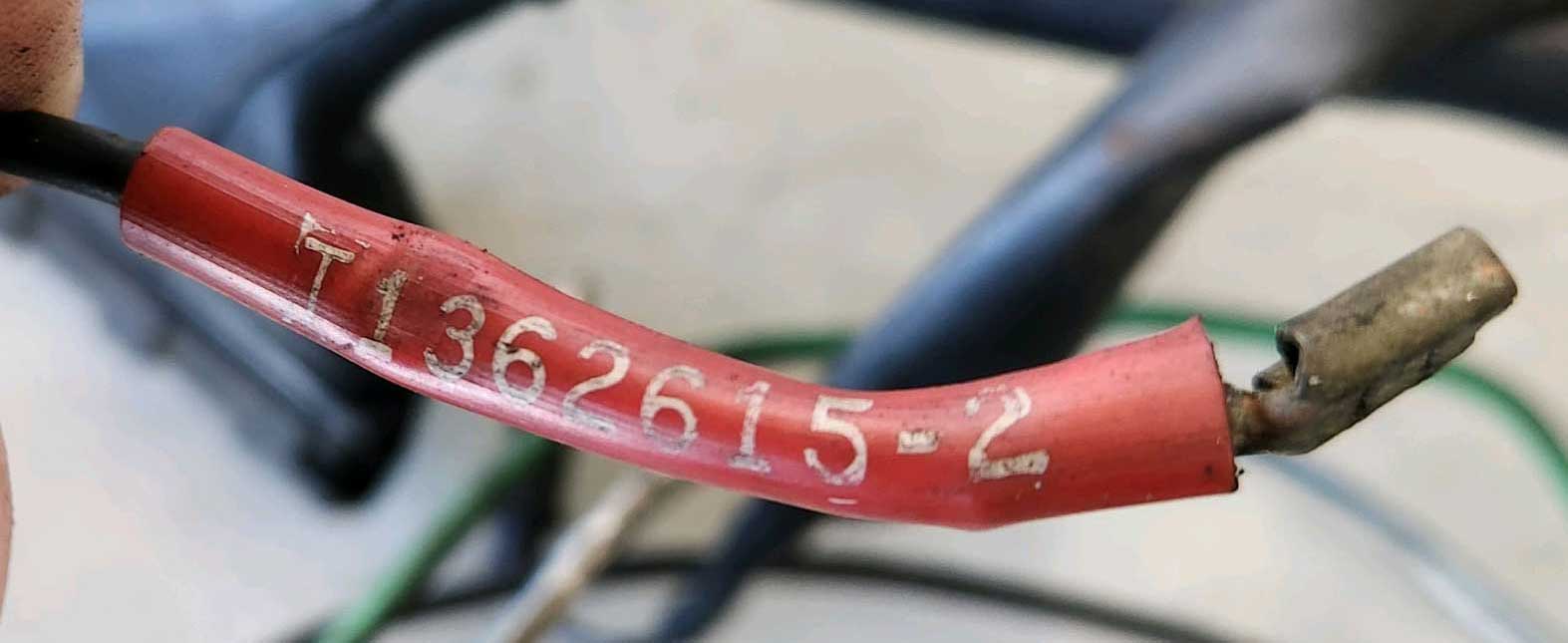

CONTACT ME Finding the original Part Number on this harness:  The PN for this original LEFT fender harness is 1362615 and it is found on a red tube on a black ground wire near the front corner of the car. The part number will appear as "T1362615-2" If you find a different part number on your car made in 1986, please email.
|
||||||

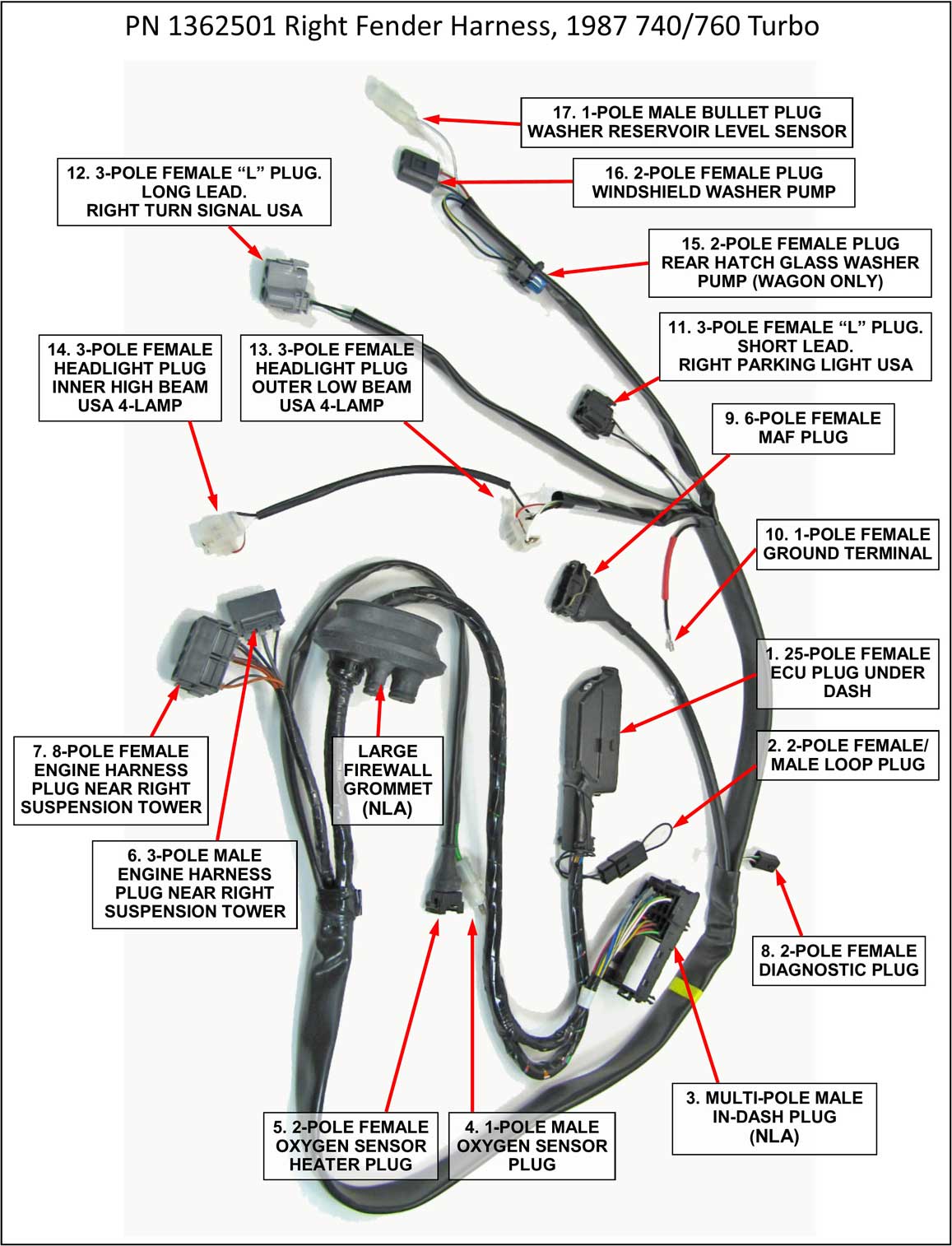

| 1987 740/760 Turbo Fender Harness RIGHT SIDE (Right suspension tower harness) 1987 740 TURBO (LH 2.2) 4 cylinder B230FT (USA headlights) 1987 760 TURBO (LH 2.2) 4 cylinder B230FT (USA headlights) Also 1988-89 740 TURBO (LH 2.2) 4 cylinder B230FT (USA headlights) PN 1362501 NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.
PN 1362501 NEW Replacement FENDER WIRE HARNESS. See "Important Information" below about some parts of this harness that are NLA, meaning you will be re-using a few connectors. Right side fender harness (right suspension tower harness) for 1987 740 TURBO, 760 TURBO. Also 1988-89 740 TURBO. USA headlights. PRICE: $399.00 Plus shipping. |
||||||||
|
View Cart or Check Out.
View Cart or Check Out.
|
||||||||
This harness comes with a complete set of custom made color diagrams illustrating each connection. This fender harness extends from the right side under-dash area through the firewall and along the right fender to the front right headlight area. Fender harnesses for 700 series turbo cars made in the 1980s are known for suffering from the same wire insulation deterioration as main engine harnesses. This RIGHT SIDE harness suffered deterioration more quickly because of the high TURBO HEAT on that side. Volvo used to offer new replacements, but those are gone. This new harness above has been designed with modern high-temp wire, so it will not suffer the same fate as an original harness.
|
||||||||
| The below fender harness has been made for a EUROPEAN model 740 with European headlights. The headlight connector on the harness will not fit the headlights on a USA model without some changes. It is our belief
that the fender
harnesses for a 1987-88 740 GLE were PROBABLY the same for a USA car,
EXCEPT for the
headlight connector. We have not yet been able to ACTUALLY
COMPARE the
harnesses to confirm they're the same. So if you have a USA 1987-88 740
which needs a fender harness, feel free contact me to discuss this. |
||||||||
| 1987-88 740 Fender Harness RIGHT SIDE (Right suspension tower harness) 1987-88 740 GLE (LH-2.2 non-turbo) 4 cylinder B230F (EUROPEAN HEADLIGHTS) A USA headlight version is possible. We will need some info about your original harness. PN 1362682 NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. PHOTO OF THIS HARNESS IS NOT YET AVAILABLE
PN 1362682 NEW Replacement RIGHT FENDER WIRE HARNESS. See "Important Information" below about some parts of this harness that are NLA, meaning you will be re-using a few connectors. Right side fender harness (right suspension tower harness) for 1987-88 740 GLE B230F (LH 2.2 non-turbo) with European headlights. PRICE: $389.00 Plus shipping. |
||||||||
|
View Cart or Check Out.
View Cart or Check Out.
|
||||||||
This fender harness extends from the right side under-dash area through the firewall and along the right fender to the front right headlight area. Fender harnesses for 700 series turbo cars made in the 1980s are known for suffering from the same wire insulation deterioration as main engine harnesses. This RIGHT SIDE harness suffered deterioration more quickly because of the high TURBO HEAT on that side. Volvo used to offer new replacements, but those are gone. This new harness above has been designed with modern high-temp wire, so it will not suffer the same fate as an original harness.
|
||||||||
| The below fender harness is made for a EUROPEAN model 740 with Euro headlights. The headlight
part of the harness will not fit the headlights on a USA model without changes. It is our belief that the fender
harnesses for a 1987-88 740 GLE were PROBABLY the same, EXCEPT for this
headlight part. We have not yet been able to ACTUALLY COMPARE the
harnesses to confirm they're the same. So if you have a USA 1987-88 740
that needs a left fender harness, contact us to discuss this. |
||||||||
| 1987-88 740 Fender Harness LEFT SIDE (Left suspension tower harness) 1987-88 740 GLE (LH-2.2 non-turbo) 4 cylinder B230F (European headlights) PN 1362470 NEW HARNESS Made in the Netherlands Available. NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. PHOTO OF THIS HARNESS IS NOT YET AVAILABLE .  PN 1362470 NEW Replacement FENDER WIRE HARNESS. See "Important Information" below about some parts of this harness that are NLA, meaning you will be re-using a few connectors. Left side fender harness (left suspension tower harness) for 1987-88 740 GLE B230F (LH 2.2 non-turbo) with European headlights. PRICE: $389.00 Plus shipping. |
||||||||
|
View Cart or Check Out.
View Cart or Check Out.
|
||||||||
This fender harness extends from the LEFT side under-dash area through the firewall and along the LEFT fender to the front headlight area. Fender harnesses for 700 series cars made in the 1980s are known for suffering from similar wire insulation deterioration as main engine harnesses. Volvo used to offer new replacements, but those are gone. This new harness above has been designed with modern high-temp wire, so it will not suffer the same fate as an original harness.
|
||||||||
| 1990 760 Fender Harness LEFT SIDE (Left suspension tower harness) 1990 760 TURBO B230FT (LH-2.4) 4 cylinder USA/Canada (USA style headlight/foglight). This fender harness extends from the under-dash area through the firewall and along the LEFT fender. It connects under the dash to the Ignition Control Unit, ABS Control Unit, Cruise Control ECU and other points. It connects under the hood to the Engine and Ignition Connections, Wiper, ABS Hydraulic Unit and Wheel Sensors, Cruise Control Components, LEFT Headlight, LEFT Foglight, LEFT Turn Signal, Horns and Cooling Fan. PN 1398904 NEW HARNESS Made in the Netherlands Available. NOT currently kept in stock. This item is made to order. Expected build time is about 4 weeks. See "Important Information" below about some parts of this harness that are NLA, meaning you will be re-using a few connectors.  Option #1 PRICE: $489.00 Plus shipping. This option is the harness WITHOUT the 12-pole connector for the ABS Hydraulic Unit (see below connector images). View Cart or Check Out.
Optional Installation of new 12-pole ABS Unit connector.   This is Connector #26. It connects to the ABS Hydraulic Unit under your hood. It has 12 terminals which are connected through this harness to the ABS Control Unit under the dash. The existing plug in your car may be re-used and installed by you. The wires are soldered to the terminals shown above. This installation is recommended to be done by someone with some basic soldering experience. The old terminals may be removed using a soldering iron and re-installed on the new harness wires using the same soldering technique. Re-using the old terminals is not a problem, because they are high-grade (silver plated) and should still be in very nice condition. OR if wanted, this harness is also available below WITH a brand new 12-pole ABS connector we can supply and installed for you on the new harness. Questions? CONTACT ME Option #2 PRICE: $559.00 Plus shipping. View Cart or Check Out.
FINDING THE PART NUMBER If you need to locate the part number on your original LEFT fender harness, it can be found on a red tube on a black ground wire near the LEFT-FRONT corner. This one can be seen as "W1398904 PO1."
|
||||||||||||
| 740/760
Series
DIESEL Visit https://www.d24t.com/ for more help with these engines. |
| 740/760
Turbo

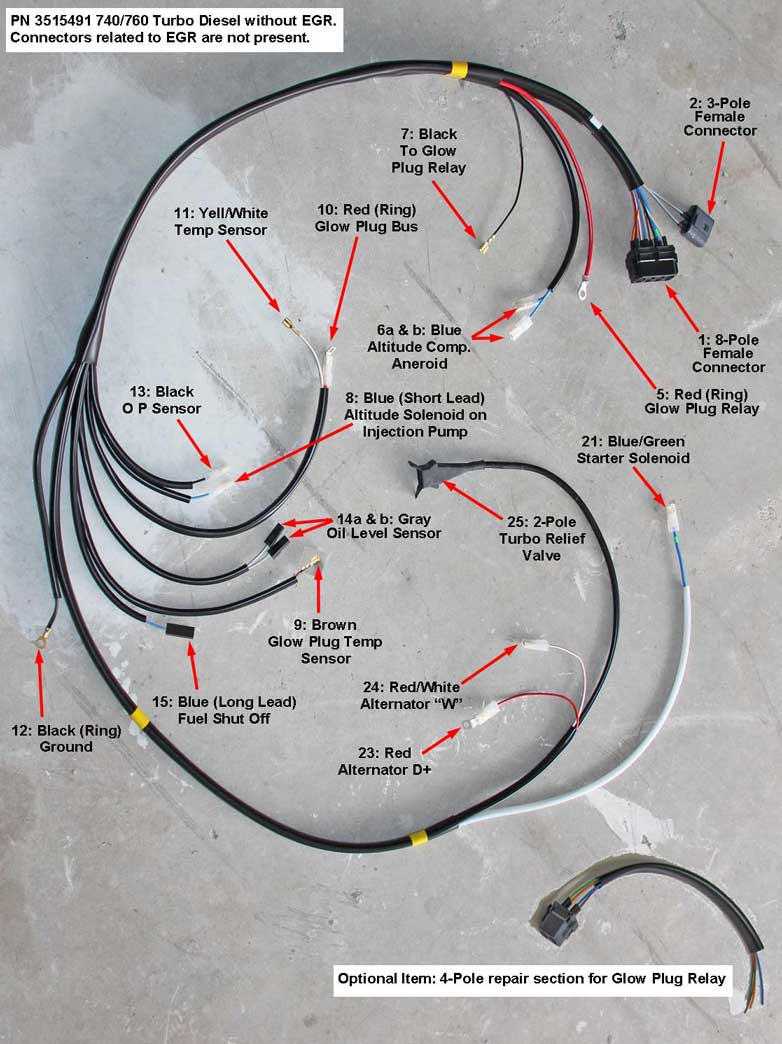

DIESEL 1984-86 740, 760 Turbo Diesel D24T 6 cylinder (without EGR) 3515491 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  |
|||
| 3515491
NEW Replacement MAIN ENGINE WIRE HARNESS
for Volvo. 1984-86 760 Turbo Diesel, without EGR, with Altitude Compensation. Part Number 3515491. PRICE: $199.00 Plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
||||
| 740/760
Turbo DIESEL 1984-86 740, 760 Turbo Diesel D24T EGR 6 cylinder (with EGR) 3515579 View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT IN STOCK If this becomes out of stock, manufacturing lead time will be about 3-4 weeks.  |
|||
| 3515579
NEW Replacement MAIN ENGINE WIRE HARNESS
for Volvo. 1984-86 740, 760 Turbo Diesel, with EGR, with Altitude Compensation. Part Number 3515579. PRICE: $199.00 Plus shipping. These harnesses come with a complete set of custom made color diagrams illustrating each circuit and connection in detail. These diagrams will answer any questions about your harness connections.
|
||||
| 740 Conversion Harnesses These harnesses have been moved to the Harness Conversion Page. CLICK HERE. |
| 740/760/780 REPAIR HARNESSES |
| 740/760/780 Fuel Pump Harness |
| 740,
760, 780 1983 through (most) 1992 700 Main Fuel Pump Harness (with WHITE plug) 1258066 (3515598) See note below for some exceptions View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands IN STOCK If this becomes out of stock, manufacturing lead time will be about 3-4 weeks.  |
| 1258066
(3515598) NEW replacement MAIN
FUEL PUMP WIRE HARNESS. 1983-91 Volvo 740, 760, 780 (with WHITE 2-pole connector). Part Number 1258066 (later number is 3515598). Fits the following: Volvo 740 2.3l 4 cyl Fuel Injected 1985, 1986, 1987, 1988, 1989, 1990 (with WHITE connector). Volvo 740 2.3l 4 cyl Fuel Injected Turbo 1985, 1986, 1987, 1988, 1989, 1990 (with WHITE connector). Volvo 760 2.3l 4 cyl Fuel Injected Turbo 1984, 1985, 1986, 1987 (with WHITE connector). Volvo 760 2.8l 6 cyl Fuel Injected 1983, 1984, 1985, 1986, 1987 (with WHITE connector). Volvo 780 2.3l 4 cyl Fuel Injected Turbo 1989, 1990, 1991 (with WHITE connector). Volvo 780 2.8l 6 cyl Fuel Injected 1987, 1988, 1989, 1990 (with WHITE connector).  NOTE:
The above harness has a WHITE male bullet style connector. Some 740s made after 1988 may have a BLACK connector. If you have the BLACK connector shown in this photo (with male blade style terminals) then this cable above will NOT plug in. bos14e |
|
| 700,
900 1988-98 Main Fuel Pump Harness. Uses BLACK plug (your old plug must be re-used). 1363293 (3544812) View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands IN STOCK Manufacturing lead time is about 3-4 weeks.  |
| 1363293
(3544812) NEW replacement MAIN
FUEL PUMP WIRE HARNESS. 1988-98 Volvo 700, 900 (with BLACK 2-pole connector). Part Number 1363293 (later number is 3544812). Fits the following: Volvo 740 2.3l 4 cyl Fuel Injected 1988, 1989, 1990 (with BLACK connector). Volvo 740 2.3l 4 cyl Fuel Injected Turbo 1988, 1989, 1990 (with BLACK connector). Volvo 780 2.3l 4 cyl Fuel Injected Turbo 1989, 1990, 1991 (with BLACK connector). Volvo 780 2.8l 6 cyl Fuel Injected 1988, 1989, 1990 (with BLACK connector). Volvo 940, 960, S90 1992, 1993, 1994, 1995, 1996, 1997, 1998 (with BLACK connector). NOTE:
This harness has a BLACK male spade style
connector (2nd plug at left). Some 740s made after 1988 may have a
different connector. If you have the WHITE
connector shown in this photo (male bullet style) then this cable above will
NOT fit.The BLACK plug housing is NO LONGER AVAILABLE, so you must re-use your old plug. |
|
| 740/760/780 Ignition Distributor Repair Cable |
| 740,
760, 780 700 non-turbo (4 cyl) 1985-1988. 700 Turbo (4 cyl) 1985 through 1989. LENGTH: 98 inches (250 cm). (For all 4-cyl 700 models with LH 2.2 EFI)  |
|
IN STOCK
If this item becomes out of stock, you may still order. There will be a delay of a few weeks. 700 Ignition Distributor Repair Cable View Cart or Check Out.
View Cart or Check Out.
|
| INSTALLATION GUIDE This SHIELDED repair cable has THREE wires, which will be fed through the firewall (left side is best for a LHD model, since your Ignition Control Unit is on that side under the dash) and then the three wires will be inserted into your BOSCH IGNITION CONTROL UNIT (ICU) connector plug. If you have a RHD model, then the ignition control unit will be on the opposite side, so in this case it would be best to feed the wires through the right side. When passing the wire terminals through the firewall, locate a place where the existing harness passes through. If that place is very tight, to avoid damaging the terminal ends, wrap then in tape to protect them. In a 1985-89 700 model the ICU can be found under the left side dash. Once the control unit is located, unplug the 25-pole connector and find a Phillips head screwdriver so the connector can be disassembled.   |
 This 25-pole connector may have ONE or THREE Phillips head screws you'll need to remove, then the connector halves will separate. You might need to unwrap some black tape to complete this. The THREE wires in this repair harness are usually colored RED, BLACK and BLUE. They go into ICU connector positions 4, 10 and 24. These wire colors were not always consistent year by year, so your harness wire colors may be different.  The 25-pole ICU connector has position numbers 1 through 25 clearly marked on the plastic body. You must locate the existing wires in positions 4, 10 and 24. Those three need to be removed. They will come out the back once released. Once removed they will not be needed.   If the wire colors in the repair harness you received are different from those shown here, you can use this info below to match them up.  MORE NOTES ON DISASSEMBLING THE 25-POLE ICU CONNECTOR   This first connector image above is from a Volvo guide on disassembling an original LH ICU connector. Some connectors will have these slotted plastic pieces or locks (in first pic) and some will not (2nd pic). If the locks are present, they need to be pulled out in order to allow terminals to be released and pulled out of the back. Once the three original terminals are removed, the new terminals are inserted from the back. Then the connector is reassembled. If you're inexperienced at releasing and removing these terminals from a connector, there's a more detailed guide in my Harness Crimping Page here: https://www.240turbo.com/crimps.html#removingterminals. |
| 740/760/780 Knock Sensor Repair Cable |
| 740,
760, 780 700 non-turbo (4 cyl) 1985-1988 (LH 2.2, EZ117K). 700 Turbo (4 cyl) 1985 through 1989 (LH 2.2, EZ117K). 700-900 non-turbo (4 cyl) 1989+ (LH 2.4, EZ116K). 700-900 Turbo (4 cyl) 1990+ (LH 2.4, EZ116K). TOTAL LENGTH: 110 inches (280 cm). (For all 4-cyl 700-900 models with LH 2.2 or LH 2.4 EFI)  IN STOCK If this item becomes out of stock, you may still order. There will be a delay of a few weeks. 700 Ignition KNOCK SENSOR Repair Cable View Cart or Check Out.
View Cart or Check Out.
INSTALLATION INFO: Have a look at the installation guide above for the Ignition Distributor Cable. The installation for this cable is exactly the same, EXCEPT the two terminals will do to pins 12 and 13 on the Ignition Control Unit (ICU) Connector. |
|
|
| 850
Series Click to find your engine harness: 850 Battery Cable only (POSITIVE) 1994-95 850 T5 Turbo (5 cyl) 9162458 with manual trans 1996 850 Turbo (5 cyl) 9442145 with manual trans 1996 850 Turbo (5 cyl) 9442145 with manual trans (Custom COP, VVT) 1996 850 Turbo (5 cyl) 9442144 with auto trans (not yet available) 1997 850 Turbo (5 cyl) 9441413 with manual trans 1997 850 Turbo (5 cyl) 9441414 with auto trans |
| 850 For 850 turbo or non-turbo. POSITIVE BATTERY CABLE  ONE IN STOCK If this item becomes out of stock, you may still order. There will be a delay of a few weeks. ORDER BELOW View Cart or Check Out. |
| 850
T5 Turbo PN 9162458 1994-95 850 Turbo 5 cylinder engine. Manual Transmission. Single Oxygen Sensor. No EGR.
View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  Harness shown below with large plastic CONDUIT CHANNEL installed. PN 9456460.
|
|
| PN
9162458 NEW Replacement MAIN ENGINE
WIRE HARNESS for Volvo 850. 1994-95 850 T5 Turbo, 5 cylinder engine, manual transmission. PRICE: $335.00 Plus Shipping NOTE: This harness will normally come WITHOUT the large plastic channel/conduit that you see in the photo. You may reuse your old channel. It disassembles/splits in half so the harness can be inserted into it. If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460. The 1994-95 main engine harness serves two 2-pole knock sensors found on the engine block as shown below (knock sensors are not included with a harness).
 NOTE ABOUT IMPROVED HARNESS DESIGN: The original Volvo 850 harness used this unsightly plastic split tubing. Our new harnesses have the option of superior vinyl harness covering. Please email if you have questions.  |
||
| 850
T5 Turbo PN 9162458-2 (using this PN until the correct one is found) 1994-95 850 Turbo 5 cylinder engine. Manual Transmission, DUAL Oxygen Sensors, EGR optional.
View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.
Harness shown below with large plastic CONDUIT CHANNEL installed. PN 9456460.
|
|
| PN
9162458-2 (dual Oxygen Sensors) NEW Replacement MAIN ENGINE
WIRE HARNESS for Volvo 850. 1994-95 850 T5 Turbo, 5 cylinder engine, manual transmission. PRICE: $335.00 Plus Shipping NOTE: This harness will normally come WITHOUT the large plastic channel/conduit that you see in the photo. You may reuse your old channel. It disassembles/splits in half so the harness can be inserted into it. If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460. The 1994-95 main engine harness also serves two 2-pole knock sensors found on the engine block as shown below (knock sensors are not included with a harness).
|
||
| 850
R Turbo PN 9442145 1996 850 R Turbo 5 cylinder B5234T5 engine. Manual Transmission, Single Oxygen Sensor, no EGR.
View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.
Harness shown below with large plastic conduit channel installed. PN 9456460.
|
|||
| PN
9442145 NEW Replacement MAIN ENGINE
WIRE HARNESS for Volvo 850. 1996 850 R Turbo B5234T5 with 5 cylinder engine, M56 manual transmission. Fuel Injection System: Motronic 4.3. PRICE: $335.00 Plus Shipping NOTE: This harness will normally come WITHOUT the large plastic channel/conduit that you see in the photo. You may reuse your old channel. It disassembles/splits in half so the harness can be inserted into it. If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460.
|
||||
| 850
R Turbo PN 9442145-2 (using this PN until the correct one is found) 1996 850 R Turbo 5 cylinder B5234T5 engine. Manual Transmission, DUAL Oxygen Sensors, no EGR.
View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  Harness shown below with large plastic conduit channel installed. PN 9456460.
|
|||
| PN
9442145-2 NEW Replacement MAIN ENGINE
WIRE HARNESS for Volvo 850. 1996 850 R Turbo B5234T5 with 5 cylinder engine, Dual Oxygen Sensors, M56 manual transmission. PRICE: $335.00 Plus Shipping NOTE: This harness will normally come WITHOUT the large plastic channel/conduit that you see in the photo. You may reuse your old channel. It disassembles/splits in half so the harness can be inserted into it. If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460.
|
||||
| 850
R Turbo PN 9442145-COP Custom 1996 850 R Turbo 5 cylinder. Manual Transmission. This is a special engine harness designed for a customer installing a later RN engine, which uses Coil-on-Plug and VVT sensors. Single VVT or Dual VVT is possible. Feel free to contact me for more details about the ECU connections offered for these options. This harness comes WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used or you may still be able to order it from Volvo: PN 9456460. View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.
Harness shown below with large plastic conduit channel installed. PN 9456460.
|
| 850
R Turbo 1996 850 R Turbo 5 cylinder B5234T5 engine. AUTOMATIC transmission. PN 9442144 |
NEW HARNESS Made in the Netherlands Not yet available. Some information is needed regarding extra wiring for the AUTOMATIC TRANSMISSION portion of this harness. If you need this harness and can help with this information, please email. CONTACT |
| PN
9442144 NEW Replacement MAIN ENGINE
WIRE HARNESS for Volvo 850. 1996 850 R Turbo B5234T5 5 cylinder engine, automatic transmission. Part Number 9442144. Expected price: $335.00 Plus shipping. Information is currently needed regarding wiring for the automatic transmission. If you need this harness and can help with this information, please email. NOTE ABOUT IMPROVED HARNESS DESIGN: The original Volvo 850 harness used this unsightly plastic split tubing. Our new harnesses have the option of superior vinyl harness covering. Please email if you have questions.
bos220e |
|
| 850
R Turbo 1997 850 R Turbo 5 cylinder B5234T5 engine. Manual Transmission, Single Oxygen Sensor, no EGR. PN 9441413 This harness comes WITHOUT the large plastic CONDUIT CHANNEL, however your old one can be re-used or you may still be able to order it from Volvo: PN 9456460. View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks.  Harness shown below with large plastic conduit channel installed. PN 9456460.
|
||
| PN
9441413 NEW Replacement MAIN ENGINE
WIRE HARNESS for Volvo 850. 1997 850 R Turbo B5234T5 with 5 cylinder engine, M56 manual transmission. Fuel Injection System: Motronic 4.3. PRICE: $335.00 Plus Shipping NOTE: This harness will normally come WITHOUT the large plastic channel/conduit that you see in the photo. You may reuse your old channel. It disassembles/splits in half so the harness can be inserted into it. If needed, the large plastic channel/conduit may still be ordered new from Volvo for about $30, PN 9456460.
|
|||
|
||
| 850
R Turbo PN 9441414 1997 850 Turbo or R, 5 cylinder B5234T5 engine, Motronic 4.3 or 4.4, with AUTOMATIC transmission (using Volvo TCM connector). DUAL Oxygen Sensors. This harness is currently available WITHOUT the large plastic CONDUIT CHANNELS found under the hood. Your old conduits may be reused and installed on this new harness. Also WITHOUT the TCM connector mentioned above, which you can used the old one. View Cart or Check Out.
|
NEW HARNESS Made in the Netherlands NOT currently kept in stock. This item is made to order. You may order any time. Manufacturing lead time will be about 3 - 4 weeks. Please email if you have questions. CONTACT
|
|
| PN
9441414 NEW Replacement MAIN ENGINE
WIRE HARNESS for Volvo 850. 1997 850 Turbo or R B5234T5 with 5 cylinder engine, automatic transmission. Fuel Injection System: Motronic 4.3, 4.4. This harness is currently available WITHOUT the large plastic conduit channels found under the hood. Your old conduits may be reused and installed on this new harness. Price: $490.00 plus shipping
|
||
| Volvo 960 6 cylinder 24 Valve Engine Harness Info Click here for 960 COIL HARNESS Repair Kits |
A few Volvo 960
owners have expessed interest in brand new main
engine harnesses. These are
complicated harnesses and there is a large variety,
with some years having several part numbers to
choose from.
I will be accepting the challenge of having new
harnesses manufactured for these cars.
The only thing I need from you is an example harness
from your car or any 960 using the same part
number. So If you believe your 960 engine harness is becoming or has become defective, and if you can provide an example harness, a new replacement is now possible! Email me. Dave CONTACT |
|
Volvo
960/S90/V90
Engine Harness Part Number Collection 960/S90/V90 6 cylinder 24 Valve 960 92 Engine Harness 9130023 or 9130429 (with EGR - California). 960 92-94 Engine Harness (6849711 old, 6849712 old), newer 9130022 or 9130428 (without EGR). 960 93 Engine Harness 9128642 (with EGR - California). Replaces 9130022, 9130428, 6849711, 6849712. 960 94 Engine Harness 9128642 (with EGR - California). Replaces 9130022, 9130428, 6849711, 6849712. 960 95 Engine Harness 9128165, 9128167 960 95 Engine Harness (9128866) newer 9442364 (without EGR). 960 95 Engine Harness (9128866) newer 9442365 (without EGR). 960 95 Engine Harness (9128868) newer 9447660 (without EGR). 960 95 Engine Harness 9128248, 9128252, 9128254 (with EGR). 960 95 Engine Harness 9128258 (without EGR) 960 95 Engine Harness 9128873 (with EGR) 4DRS CH -91699, 5DRS CH -33664. 960 95 Engine Harness 9128874 4DRS CH -91699, 5DRS CH -33664. 960 95 Engine Harness 9128877 (with EGR) 4DRS CH -91789, 5DRS CH -33671. 960 95 Engine Harness 9128878 4DRS CH -91789, 5DRS CH -33671. 960 95 Engine Harness 9128879 4DRS CH -91699, 5DRS CH -33664. 960 95 Engine Harness 9128883 (with EGR) 4DRS CH -91699, 5DRS CH -33664. 960 95 Engine Harness 9128884 4DRS CH -91699, 5DRS CH -33664. 960 95 Engine Harness 9128887 4DRS CH -91834, 5DRS CH -33676. 960 95 Engine Harness 9128898, 9130533, 9434004, 9434006 (without EGR). 960 95 Engine Harness 9442421 4DRS CH 91700-115829, 5DRS CH 33665-42546 960 95 Engine Harness 9442422 (with EGR) 4DRS CH 91790-115829, 5DRS CH 33672-42546. 960 95 Engine Harness 9442423 4DRS CH 91790-115829, 5DRS CH 33672-42546. 960 95 Engine Harness 9442424 4DRS CH 91700-115829, 5DRS CH 33665-42546 960 95 Engine Harness 9442425 (with EGR) 4DRS CH 91700-115829, 5DRS CH 33665-42546. 960 95 Engine Harness 9442426 4DRS CH 91700-115829, 5DRS CH 33665-42546 960 95 Engine Harness 9442427 4DRS CH 91835-115829, 5DRS CH 33677-42547. 960 95 Engine Harness 9442420 (with EGR) 4DRS CH 91700-115829, 5DRS CH 33665-42546. 960, S90, V90 96+ Engine Harness 9128248, 9128252, 9128254 (with EGR). 960, S90, V90 96+ Engine Harness 9128258 (without EGR) 960, S90, V90 96+ Engine Harness (9128866) newer 9442364 (without EGR). 960, S90, V90 96+ Engine Harness (9128866) newer 9442365 (without EGR). 960, S90, V90 96+ Engine Harness 9128873 (with EGR) 4DRS CH-91699, 5DRS CH -33664. 960, S90, V90 96+ Engine Harness 9128874 4DRS CH -91699, 5DRS CH-33664. 960, S90, V90 96+ Engine Harness 9128877 (with EGR) 4DRS CH -91789, 5DRS CH -33671. 960, S90, V90 96+ Engine Harness 9128878 4DRS CH -91789, 5DRS CH -33671. 960, S90, V90 96+ Engine Harness 9128879 4DRS CH -91699, 5DRS CH-33664. 960, S90, V90 96+ Engine Harness 9128883 (with EGR) 4DRS CH -91699, 5DRS CH -33664. 960, S90, V90 96+ Engine Harness 9128884 4DRS CH -91699, 5DRS CH -33664. 960, S90, V90 96+ Engine Harness 9128887 4DRS CH -91834, 5DRS CH -33676. 960, S90, V90 96+ Engine Harness 9128898, 9130533, 9434004, 9434006 (without EGR). 960, S90, V90 96+ Engine Harness 9442421 4DRS CH 91700-115829, 5DRS CH 33665-42546 960, S90, V90 96+ Engine Harness 9442422 (with EGR) 4DRS CH 91790-115829, 5DRS CH 33672-42546. 960, S90, V90 96+ Engine Harness 9442423 4DRS CH 91790-115829, 5DRS CH 33672-42546. 960, S90, V90 96+ Engine Harness 9442424 4DRS CH 91700-115829, 5DRS CH 33665-42546 960, S90, V90 96+ Engine Harness 9442425 (with EGR) 4DRS CH 91700-115829, 5DRS CH 33665-42546. 960, S90, V90 96+ Engine Harness 9442426 4DRS CH 91700-115829, 5DRS CH 33665-42546 960, S90, V90 96+ Engine Harness 9442427 4DRS CH 91835-115829, 5DRS CH 33677-42547. 960, S90, V90 96+ Engine Harness 9442420 (with EGR) 4DRS CH 91700-115829, 5DRS CH 33665-42546. S90, V90 97 Engine Harness 9447672 S90, V90 97-98 Engine Harness 9447668, 9447670, 9447674 (with EGR- California). S90, V90 97-98 Engine Harness 9447659, 9447669, 9447671, 9447675, 9447676 S90, V90 98 Engine Harness 9442171 |
|
|
For those feeling threatened by this job, it can be done relatively easily, in my case under 4 hours of puttering slowly. First,
unhook
the ground battery cable. Lay
out your new harness and get acquainted with
it. Label the connections. Under
the Intake Manifold: Remove the knock sensor
connector and temp sensor connector (gray).
The knock sensor cable is NOT replaced with a new
one from the engine harness, it's just easier to
work with it out of the way. Remove
the large red cable (13 mm hex nut) and female
wire connector on the starter, remembering to write
it down and label what goes where (there are two connections on the starter
that the small female connector will fit on....
but only one is correct. This is the most
common "no-start" problem for installers). You
may need to snip a number of black nylon cable
zip-ties along the way. Unplug
the coolant sensor connector (this is a 2-wire
spring type connector) by the heater hose inlet on
the head (under the intake manifold). Look for
more zip-ties to clip. Go along the firewall and try to unhook the heavy black zips-ties holding the old harness --- they will probably break since they're brittle. Now you can remove most of the old harness from the engine area and install the new. Passenger
fender:
Remove
the two large Phillips screws holding the coil in
place and lay it toward the center of the engine
bay. This is a good time to service oil and flame trap area if needed. The main thing is ensuring success is to make drawings, write things down and label harness connections, both old and new. And finally, here is an excellent article on Volvo chassis grounds and other good stuff that I thought was so good, I wanted to share it with you...Volvo Electrical System Service: In Search of Good Grounds, Bob Kraft, ImportCar http://www.babcox.com/editorial/ic/ic129744.htm |
| Additional Purchase or Shipping Payment (This will allow you to add an additional charge to your Shopping Cart order) The below shipping buttons are for use with my Shopping Cart. This can be used to add a shipping charge to any Shopping Cart order. If the shipping charge options on an order page aren't quite the right amounts needed for your order, or if you just need to add an extra amount for an unusual order, this will work. It may also be used if an extra payment needs to be added to an order that's already been closed. View Cart or Check Out:
|
| davebarton.com |
prancingmoose.com |
240turbo.com |
Special Emblems |
| Prancing
Moose Stickers |
Volvo
Stickers |
Body/Chassis/Engine
Labels |
New Items |
| Other Car Brand
Stickers |
Steering
Wheel Labels |
Center Cap Labels/Overlays |
Cool Volvo
Products |
| Grill Labels/Overlays |
Volvo Wire
Harnesses |
Conversion Harnesses |
Harness
Parts/Connectors |
| Volvo Relays |
Coil Repair
Harnesses |
240 Window
Scrapers |
740/940
Window Scrapers |
| Adjustable Voltage
Regulators |
Horn Buttons |
240 Odometer
Repair |
740 Odometer
Repair |
| Volvo Gauge
Faces |
740
Turbo/Boost Faces |
240 Black Door Vinyl |
850 Odometer
Repair |
| ALTERNATOR Page |
240 Power Mirrors - Switches |
240 Oil Cooler Page |
240 Fuse Panel Page |
| Group A
Racing 242 Turbo Page |
240 Hydraulic Clutch | Fuel Pump RELAY Page |
240 Headlight RELAY Page |
| Used Parts & Extra Stuff for sale |
CRIMPING Page |
240 Ignition Page |
240 Headlight Page |
| 240 Gauge Electrical Diagrams | 240 REAR END Page | Yoshifab Catch Can Install | 240 MODS and FIXES Page |
| Side Marker
Lights Page |
Gentex Mirror Upgrade | Yoshifab Drain Tube Install | Modified 240 Favorites |
| SoCal Salvage Yards | Unleaded Racing Fuel | B26FT Stroker | Dave's 245 Spec Page |
| 240 SUSPENSION Page | 240 Lowering Page |
240 Windshield Page |
240 WIPER Page |
| 240 Big
Brakes Page |
240 Dash Top Gauge Pod | Cadillac 4-Note Horn Install | 240 DYNAMAT Installation |
| 4 Speed Fan
Controller |
Electric Cooling Fan
Page |
BRUSHLESS Cooling Fan Page |
Tropical Fan
Clutches |
| 240 AC Page | "KOMFORT BLINKER" Upgrade | T5 Trans Conversion Page | 240 Engine Mount Page |
| 240 VIN Page | Stepper Idle Valve Page |
Vacuum Diagrams | 240 HOOD Page |
| 240 Exhaust Page | 242 Power Vent Window Project |
EFI Volvo Pin Function Diagrams |
Favorite Links |
| R-Sport
Apparel |
Prancing
Moose Apparel |
Volvo Meet Photo Albums | Texas Volvo Meets and Events |
| Ordering Instructions | Policies | PAYMENTS Page |
Mojave Road Trail Map Page |
| Returns | Shipping | Shopping Cart Troubleshooting | Contact Us |
|
|
